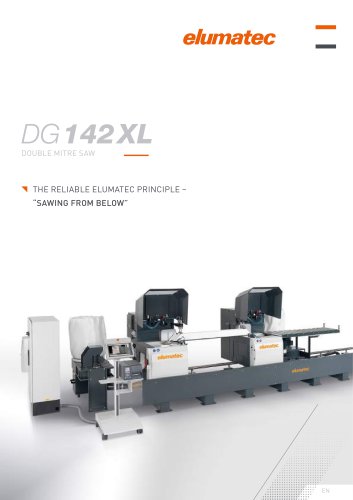

^ THE RELIABLE ELUMATEC PRINCIPLE - “SAWING FROM BELOW”

Cutting diagrams Minimum dimensions Pneumatic clamping device horizontal travel = 80 Pneumatic clamping device horizontal travel = 140 Minimum dimension for 90° cut with short stroke stop on the travelling unit: 213 mm Pneumatic clamping device horizontal travel = 40 Minimum dimension for 45° cut with short stroke stop on the travelling unit: 213 mm Minimum dimension for 90° cut with short stroke stop on the stationary unit: 213 mm Minimum dimension for 45° cut with short stroke stop on the stationary uni

Up-to-date safety technology, particularly large cutting range, single or multiple cut: The XL version of the popular DG 142 double mitre saw offers everything. The DG 142 XL is the ideal machine for large series production involving 90° and 45° size cutting and is available in four cutting length variants: 3,000 mm, 4,500 mm, 6,000 mm and 7,500 mm. The double mitre saw is supplied as standard with saw blades, safety hoods and the E 190 digital display. The DG 142 XL can be optionally supplemented with a whole range of extras, such as a label printer, a pulsed coolant system and innovative software...

Technical specifications Controller variants Manual cutting length adjustment with digital display E 190 Minimum cutting length at 90° 400 mm Minimum cutting length tilted at 45° 400 mm Tilting range inwards 90° – 45° For cutting range, see cutting diagram Saw blade diameter 550 mm Saw blade speed 2,760 rpm (PVC) or 2,280 1/min (ALU) Power supply 230/400 V, 3~, 50 Hz Power output per motor 4 kW Compressed air supply 7 bar Air consumption per working cycle 40 l without spraying, 64 l with spraying DG 142 XL + PC control E 590 + label printer Positioning control

PC control E 590 + label printer

The right to make technical alterations is reserved. | 000 61 03 82 | 2022-12 elumatec AG Pinacher Straße 61 75417 Mühlacker Germany
