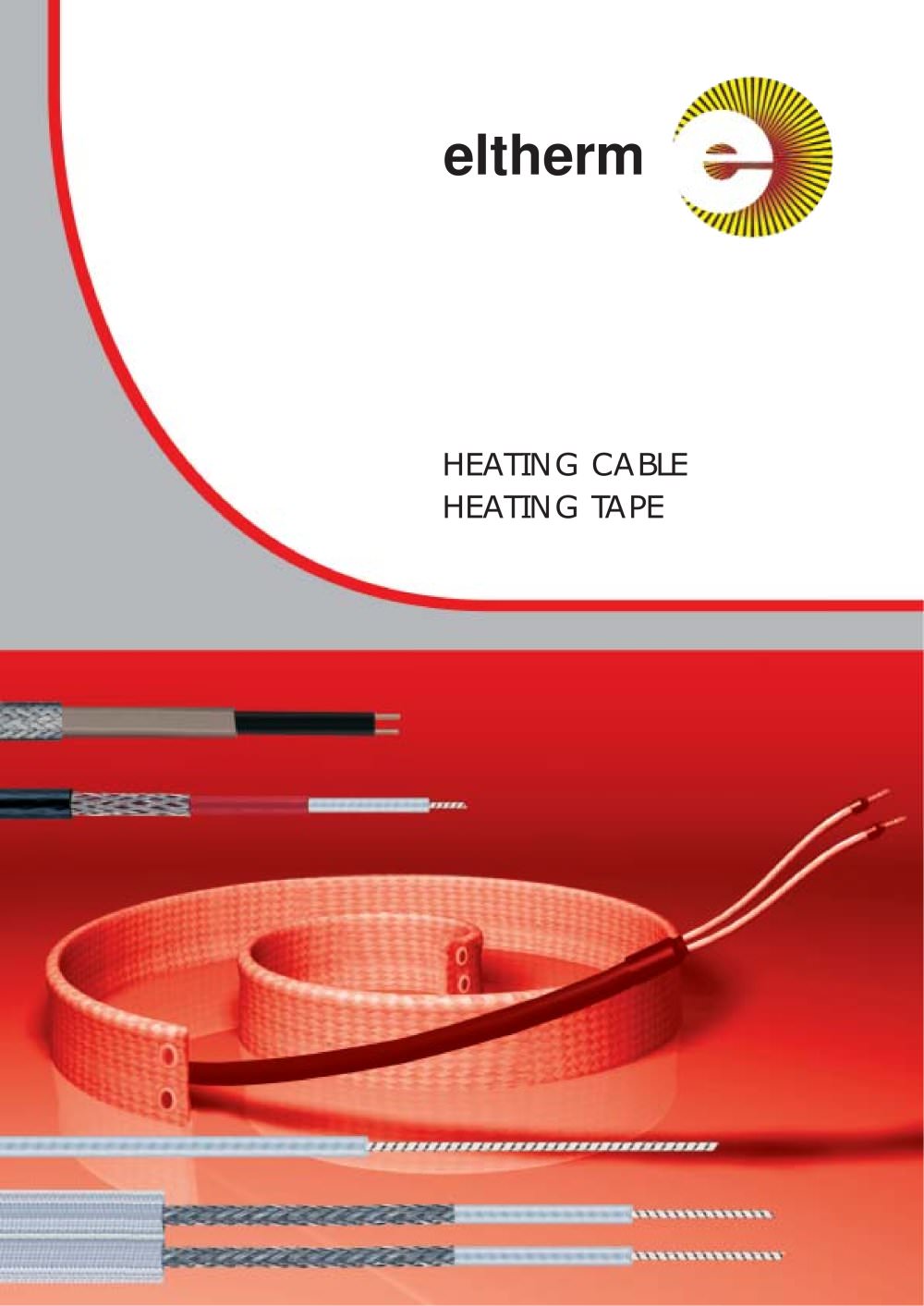

Heating cable, heating tape

Product catalog summary

Overview: The document outlines the specifications, applications, and standards for various heating cables and tapes produced by eltherm, designed for industrial use with high temperature resistance, flexibility, and durability.

1. Heating Cable Type ELK-AG:

Description: Factory terminated with high chemical resistance, suitable for liquids and corrosive atmospheres.
Technical Data: Features PTFE insulation, nickel-plated copper earth braiding, nominal temperature of 220°C, voltage of 230V, and maximum operating temperature of 150°C with a loading of 25 W/m.
Applications: Ideal for appliances, containers, pipes, and valves in corrosive environments.

2. Heating Tape Type ELW-GN:

Description: Factory terminated, highly flexible, and moisture-protected.
Technical Data: Includes PTFE insulation, fibreglass overjacket, nominal temperature of 220°C, and loading of ~50 W/m.
Applications: Suitable for non-corrosive atmospheres, especially on glass and delicate surfaces.

3. Heating Cable Type ELK-H:

Description: High loading capacity, flexible, suitable for high-temperature applications.
Technical Data: Features fibreglass insulation, nominal temperature of 500°C, and loading of ~125 W/m.
Applications: Used in dry atmospheres, especially for glass appliances requiring high loading.

4. Heating Tape Type ELW-H:

Description: High loading, flexible, and economical.
Technical Data: Includes fibreglass insulation and overjacket, nominal temperature of 500°C, and loading of ~250 W/m.
Applications: Suitable for non-corrosive, dry atmospheres, and high loading applications.

5. Heating Cable Type ELK-MI/F:

Description: Sealed metal overjacket, moisture-protected, high chemical resistance.
Technical Data: Features magnesium oxide insulation, copper-nickel alloy overjacket, nominal temperature of 400°C, and voltage of 500V.
Applications: Suitable for high loading and temperature applications, usable in liquids.

6. Heating Cable Type ELK-Q:

Description: Highest loading and operating temperature, flexible, ready to use.
Technical Data: Quartz fabric insulation, nominal temperature up to 900°C.
Applications: Designed for extreme temperature environments requiring high flexibility.

Standards and Certifications: All products comply with EN and DIN VDE standards, ensuring safety and reliability.

Specifications:

Insulation: Quartz fabric
Nominal Temperature: 1000°C
Max Operating Temperature: 900°C
Loading: ~175 W/m for cables, 350 W/m for tapes
Diameter: 4 mm for cables
Dimensions: 25 x 6 mm for tapes
Min Bending Radius: 8 mm for cables, 10 mm for tapes
Moisture Protection: No
Standards: Manufactured according to DIN VDE 0721 T2

Applications: Suitable for use on glass, quartz, and ceramic equipment in non-corrosive and dry environments. Protective surfaces recommended unless operating at low voltage (24V) with an isolating transformer.

Technical Data: Lists various technical data for different heating cables and tapes, including nominal wattage, order numbers, and heated lengths.

Accessories and Components:

Connection and termination kits
Junction boxes
Mounting brackets and insulation entry kits
Thermal insulation and outer covers
Self-adhesive tapes and foils
Mechanical fasteners and heat transfer cement
Warning labels and heat-resistant cables

Company Information: Eltherm Elektrowaermetechnik GmbH, based in Burbach, Germany, specializes in electric heating systems, emphasizing quality and customer cooperation, with products certified under DIN ISO 9001.
