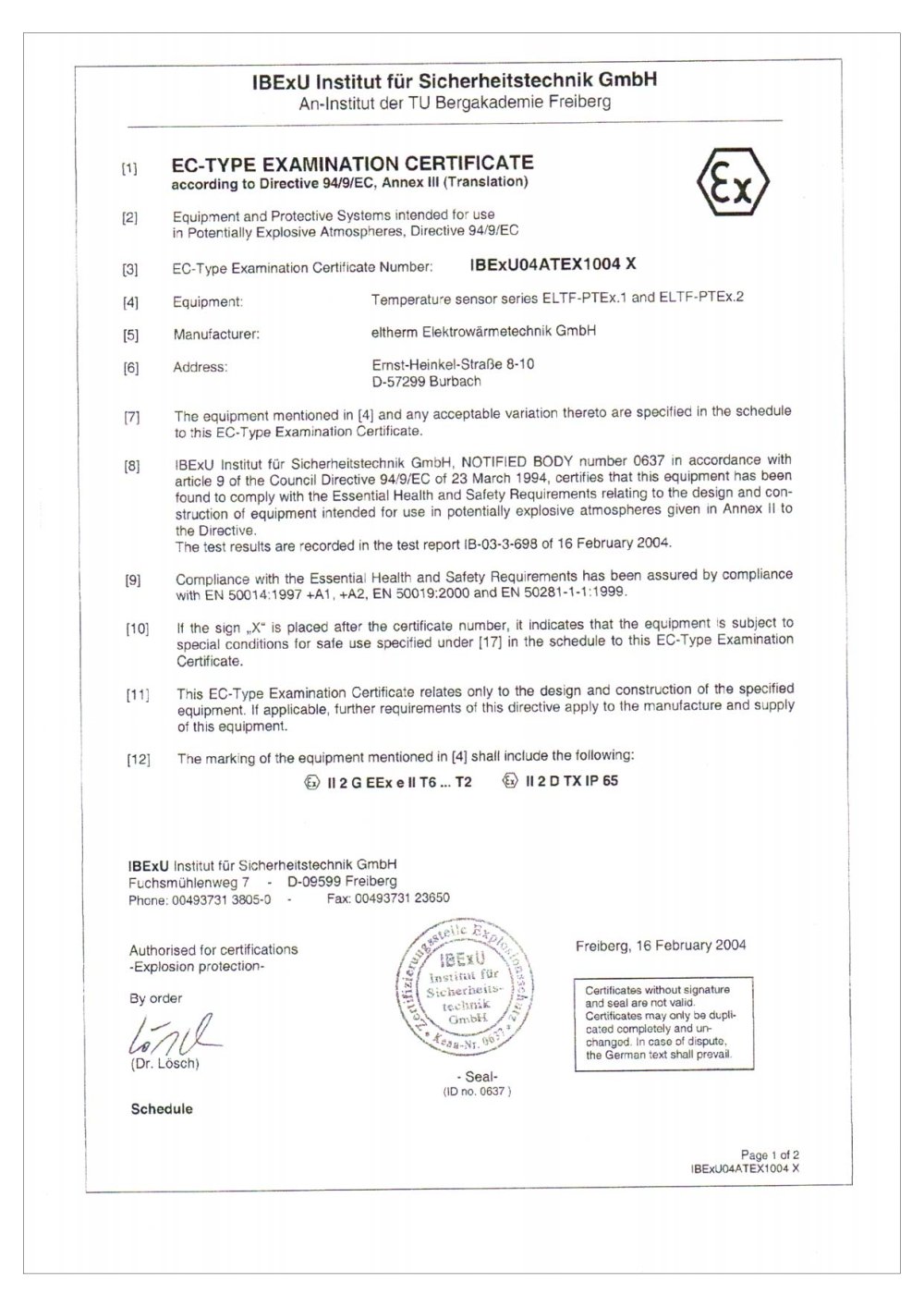

IBExU Institut fur Sicherheitstechnik GmbH An-Institut der TU Bergakademie Freiberg [i] EC-TYPE EXAMINATION CERTIF1CATE according to Directive 94/9/EC Annex III (Translation) [2] Equip-nent and Protective Systems intended for use in Potentiatly Explosive Atmosphres. Directive 94/9/EC [31 C-Type Examination CenY苯cata Number: lBExU04ATEX1004 X [4] Equipment: Temperatu'e sensor sries ELTF-PTEx.1 and ELTF-PTEx.2 [5] Manufacturer: eltherm Elektrowrrretechnik GmbH [6] Address: Ernst-Heinkel-StraBe 8-10 D-57299 8urbach [7] The equipment mentioned m [4] and any acceptable variation thereto are speciltec in the schedule to ihis EC-Type Examination Certificaie. [8] IBExU Institut fur Sicherheitstechnik GmbH, NOTIFIED BODY number 0637 m accordance with article 9 of the Coun頧il Directive 94/9/EC of 23 March 1994, certifies that this equipment has been found to comply with the Essential Health and Safety Requirements relating to the design and construction of equipment intended for use in potentiaily explosive atmosphͨres given in Annex II to the Directive. The test results are 'ecorded in the test report IB-03-3-698 of 16 February 2004. [9] Cmpliance wlh the Essential Health and Safety Requrements has been assured by compliance with EN 50014:1997 +-A1. +A2. EN 50019:2000 and EN 50281-1-1 '1999. [101 I* the sign ,.XU is placed after the certificats number, it indicates that the equipment s subject to sp뮩cial conditions tor sale use speci-ied under [17] in the schedule to this EC-Type Examination Certificate. [11] This EC-Type Examination Certificate relates only to the design and construction of the specified equipment. If applicable, turther requirements ol this directive apply to the manufacture and supply of this equipment. [12] The marking of the equipment mentioned in [4] shall include the following: © Il 2 G EEx e II T6 ... T2 © Il 2 D TX IP 55 IBExU Institut fur Sicherheitstechnik GmbH FLChsmhlenweg 7 - D-09599 Freiberg Phare: 00493731 3805-0 - Fax: 00493731 23650 Authonsed for certifications -Explosion protection- ira* far \rA Freiberg, 16 February 2004 By ordgr Certificates Aithout signature and seal are not valid Certificats? m&y only Se dupli-ca;e complotcly and ur> changod. in case o1 dspute. the Gernnan tetf shaH prgvail (Dr. Losch) Schedule ■ Seal-(!D no. 0637) Pag& i oi 2 lBExU黛4ATEX10tX

IBExU Institut fur Sicherheitstechnik GmbH An-Institut derTU Bergakademie Freiberg fi 3] Schedule [14] to the EC-TYPE EX AMI NATION CERTIFICATE IBExU04ATEX1004 X [15] Description of equipment The Temprature sensors of sries ELTF-PTEx are inten驻ed for use in potentially explosive atmosphͨres. They consist of a measuring resislor inside ol a metalic protection pipe and a shielded sensor cable grouted with the protection pipe. The measuring resistor is casted and piaced in the pipe by means of heat-conduction paste. The connection is carried oui with a separate, certified Ex terminal...
