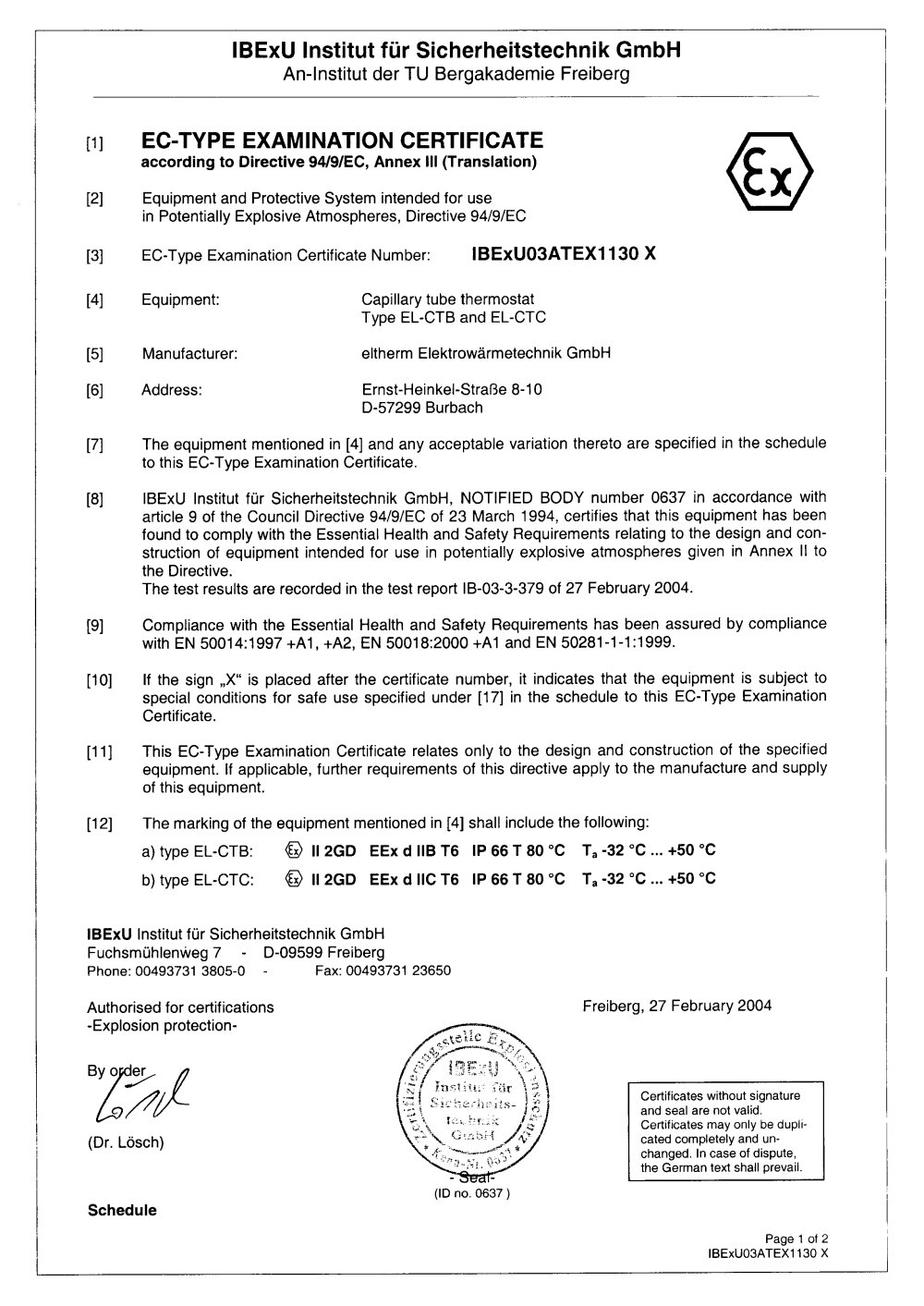

IBExU Institut fur Sicherheitstechnik GmbH An-Institut der TU Bergakademie Freiberg [I] EC-TYPE EXAMINATION CERTIFICATE according to Directive 94/9/EC, Annex III (Translation) [2] Equipment and Protective System intended for use in Potentially Explosive Atmosphres, Directive 94/9/EC [3] EC-Type Examination Certificate Number: IBExU03ATEX1130 X [4] Equipment: Capillary tube thermostat Type EL-CTB and EL-CTC [5] Manufacturer: eltherm Elektrowrmetechnik GmbH [6] Address: Ernst-Heinkel-StraBe 8-10 D-57299 Burbach [7] The equipment mentioned in [4] and any acceptable variation thereto are specified in the schedule to this EC-Type Examination Certificate. [8] IBExU Institut fur Sicherheitstechnik GmbH, NOTIFIED BODY number 0637 in accordance with article 9 of the Council Directive 94/9/EC of 23 March 1994, certifies that this equipment has been found to comply with the Essential Health and Safety Requirements relating to the design and con袭struction of equipment intended for use in potentially explosive atmosphres given in Annex II to the Directive. The test results are recorded in the test report IB-03-3-379 of 27 February 2004. [9] Compliance with the Essential Health and Safety Requirements has been assured by compliance with EN 50014:1997 +A1, +A2, EN 50018:2000 +A1 and EN 50281-1-1:1999. [10] If the sign X" is piaced after the certificate number, it indicates that the equipment is subject to sp脩cial conditions for safe use specified under [17] in the schedule to this EC-Type Examination Certificate. [II] This EC-Type Examination Certificate relates only to the design and construction of the specified equipment. If applicable, further requirements of this directive apply to the manufacture and supply of this equipment. [12] The marking of the equipment mentioned in [4] shall include the following: a) type EL-CTB: © Il 2GD EEx d MB T6 IP 66 T 80 °C Ta -32 °C ... +50 °C b) type EL-CTC: © Il 2GD EEx d IIC T6 IP 66 T 80 °C Ta -32 °C ... +50 °C IBExU Institut fur Sicherheitstechnik GmbH Fuchsmhlenweg 7 - D-09599 Freiberg Phone: 00493731 3805-0 - Fax: 00493731 23650 Authorised for certifications Freiberg, 27 February 2004 Certificates without signature and seal are not valid. Certificates may only be dupli-cated completely and un-changed. In case of dispute, the German text shall prevail. (ID no. 0637 ) Schedule Page 1 of 2 IBExU03ATEX1130 X

IBExU Institut fur Sicherheitstechnik GmbH An-Institut der TU Bergakademie Freiberg [13] Schedule [14] to the EC-TYPE EXAMINATION CERTIFICATE IBExU03ATEX1130 X [15] Description of equipment The Capillary tube thermostat type EL-CTB and EL-CTC is provided for the connection of a heating conductor in potentially explosive atmosphres. It consists of a flameproof enclosure with built in thermostat and capillary tube bushing. The Connecting is carried out for group MB with direct cable entry, for group IIC with separate terminal box. Ambient temp譩rature range: -32 °C up to +50 °C Technical data...
