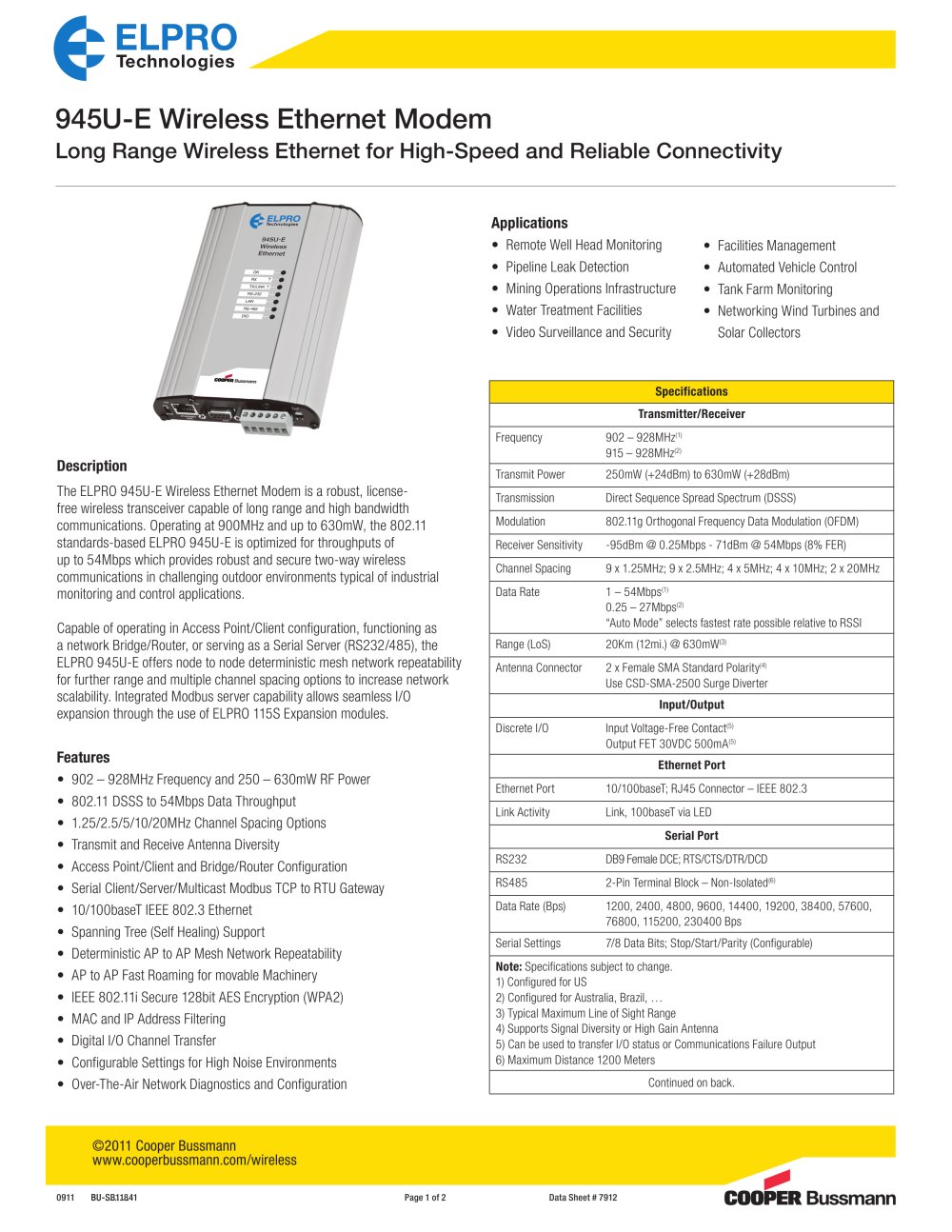

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } .font1 { font:22.00pt "Arial", sans-serif; } .font2 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:13.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:17.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:11.00pt "Tahoma", sans-serif; } ELPRO Technologies 945U-E Wireless Ethernet Modem Long Range Wireless Ethernet for High-Speed and Reliable Connectivity Applications Remote Well Head Monitoring Օ Pipeline Leak Detection Mining Operations Infrastructure Օ Water Treatment Facilities Video Surveillance and Security Օ Facilities Management Automated Vehicle Control Օ Tank Farm Monitoring Networking Wind Turbines and Solar Collectors Spթcifications Transmitter/Receiver Frequency 902 - 928MHz(1) 915 - 928MHz(2) Transmit Power 250mW (+24dBm) to 630mW (+28dBm) Transmission Direct Sequence Spread Spectrum (DSSS) Modulation 802.11g Orthogonal Frequency Data Modulation (OFDM) Receiver Sensitivity -95dBm @ 0.25Mbps - 71dBm @ 54Mbps (8% FER) Channel Spacing 9 x 1.25MHz; 9 x 2.5MHz; 4 x 5MHz; 4 x 10MHz; 2 x 20MHz Data Rate 1 - 54Mbps(1) 0.25 - 27Mbps(2) "Auto Mode" selects fastest rate possible relative to RSSI Range(LoS) 20Km (12mi.) @ 630mW(3) Antenna Connector 2 x Female SMA Standard Polarity(4) Use CSD-SMA-2500 Surge Diverter Input/Output Discrete I/O Input Voltage-Free Contact(5) Output FET 30VDC 500mA(5) Ethernet Port Ethernet Port 10/100baseT; RJ45 Connector - IEEE 802.3 Link Activity Link, 100baseT via LED Serial Port RS232 DB9 Female DCE; RTS/CTS/DTR/DCD RS485 2-Pin Terminal Block - Non-Isolated(6) Data Rate (Bps) 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 76800, 115200, 230400 Bps Serial Settings 7/8 Data Bits; Stop/Start/Parity (Configurable) Note: Specifications subject to change. 1) Configured for US 2) Configured for Australia, Brazil, ... 3) Typical Maximum Line of Sight Range 4) Supports Signal Diversity or High Gain Antenna 5) Can be used to transfer I/O status or Communications Failure Output 6) Maximum Distance 1200 Meters Continued on back. Description The ELPRO 945U-E Wireless Ethernet Modem is a robust, license-free wireless transceiver capable of long range and high bandwidth communications. Operating at 900MHz and up to 630mW, the 802.11 standards-based ELPRO 945U-E is optimized for throughputs of up to 54Mbps which provides robust and secure two-way wireless communications in challenging outdoor environments typical of industrial monitoring and control applications. Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 945U-E offers node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless I/O expansion through the use of ELPRO 115S Expansion modules. Features 902 - 928MHz Frequency and 250 - 630mW RF Power Օ 802.11 DSSS to 54Mbps Data Throughput 1.25/2.5/5/10/20MHz Channel Spacing Options Օ Transmit and Receive Antenna Diversity Access Point/Client and Bridge/Router Configuration Օ Serial Client/Server/Multicast Modbus TCP to RTU Gateway 10/100baseT IEEE 802.3 Ethernet Օ Spanning Tree (Self Healing) Support Deterministic AP to AP Mesh Network Repeatability Օ AP to AP Fast Roaming for movable Machinery IEEE 802.11 i Secure 128bit AES Encryption (WPA2) Օ MAC and IP Address Filtering Digital I/O Channel Transfer Օ Configurable Settings for High Noise Environments Over-The-Air Network Diagnostics and Configuration ©2011 Cooper Bussmann www.cooperbussmann.com/wireless 0911 Page 1 of 2 Data Sheet # 7912 COOPER Bussmann
