905U-G Wireless Gateway Profibus DP

905U-G Wireless Gateway Profibus DP

Product catalog summary

Overview: The ELPRO 905U-G-PR is a wireless Profibus DP interface capable of operating at speeds up to 12Mbit/sec. It utilizes the 900MHz license-free radio band, offering a range of up to 20 miles line-of-sight and 3000 feet in congested industrial environments. Additionally, it supports a 450MHz 5W licensed radio for distances over 30 miles.

Specifications: The device can function as a Profibus Slave to extend existing networks and provides secure firewall isolation. It has a typical response time of 30 milliseconds for transferring 64 digital values. Up to 95 wireless units can connect in a peer-to-peer network, and it can also act as a Profibus Master, connecting to up to 125 Profibus Slaves.

Features: The ELPRO 905U-G-PR supports secure wireless transmissions with encryption, allowing for the connection of remote Profibus sensors and I/O. It can interconnect other data buses and PLCs, offering wireless protocol conversion to Modbus, DF1, EtherNet IP, Modbus TCP, DeviceNet, and Modbus Plus. The device is internet-enabled via an internal 1.4 MB embedded web system with dynamic HTTP and event-activated email functionality.

Applications: It is suitable for wireless Profibus SCADA systems and can act as a repeater to extend radio distance. The configuration is user-friendly with drag-and-click functionality, and configuration and diagnostic software is provided at no additional cost.

Contact Information: ELPRO Technologies Pty Ltd, 9/12 Billabong St, Stafford, Qld, 4053 Australia. Telephone: +61 7 3352 4533, USA (866) 713 4409. Fax: +61 7 3352 4577. Email: [email protected]. Website: www.elprotech.com.

Catalog excerpts

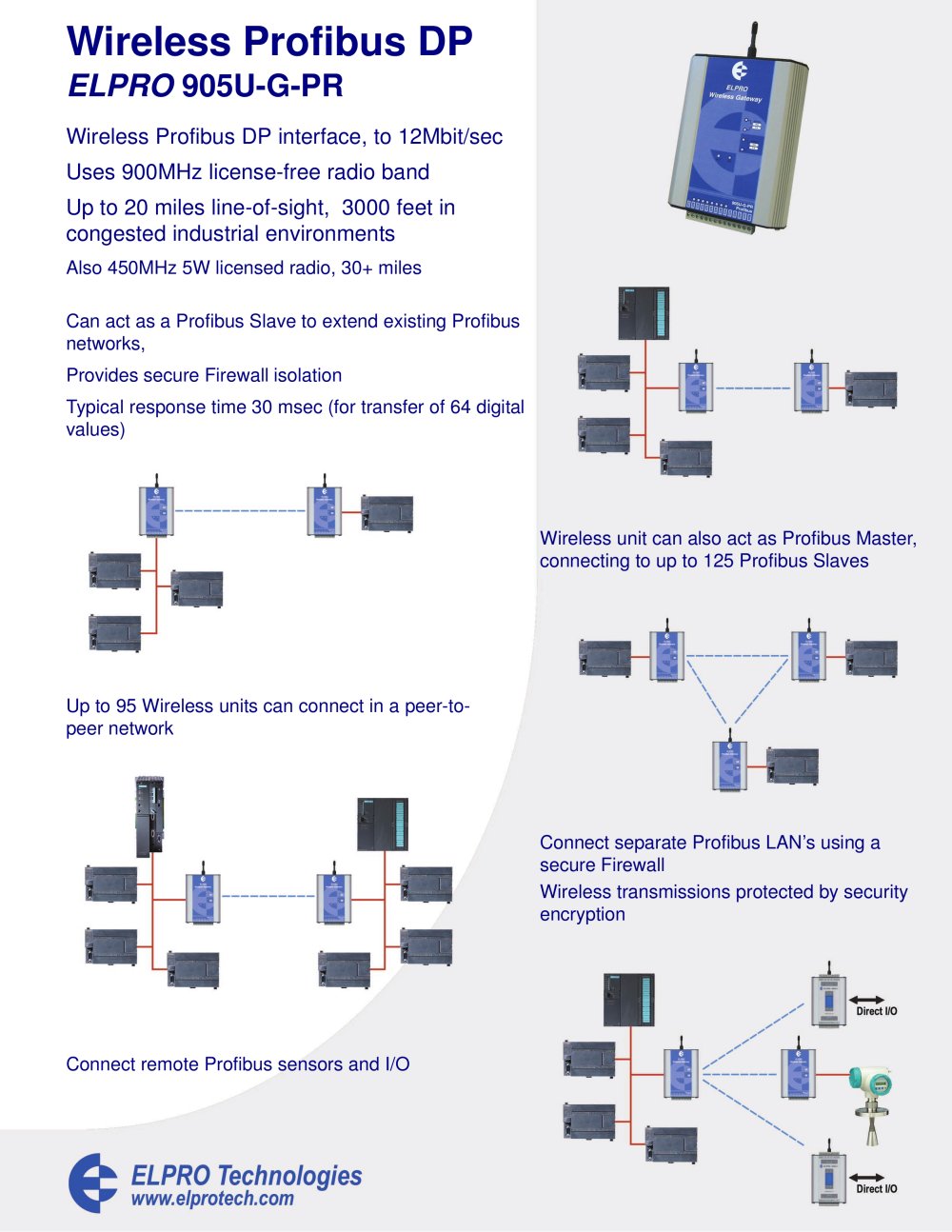

ELPRO 905U-G-PR > Wireless Profibus DP interface, to 12Mbit/secUses 900MHz license-free radio band Up to 20 miles line-of-sight, 3000 feet incongested industrial environments Also 450MHz 5W licensed radio, 30+ milesCan act as a Profibus Slave to extend existing Profibusnetworks,Provides secure Firewall isolationTypical response time 30 msec (for transfer of 64 digitalvalues) Up to 95 Wireless units can connect in a peer-to-peer network Wireless unit can also act as Profibus Master,connecting to up to 125 Profibus Slaves Connect separate Profibus LANs using asecure FirewallWireless transmissions protected by securityencryptionConnect remote Profibus sensors and I/O size="-2">

Open the catalog to page 1
