905U-E Wireless Ethernet Modem

905U-E Wireless Ethernet Modem
2Pages

Catalog excerpts

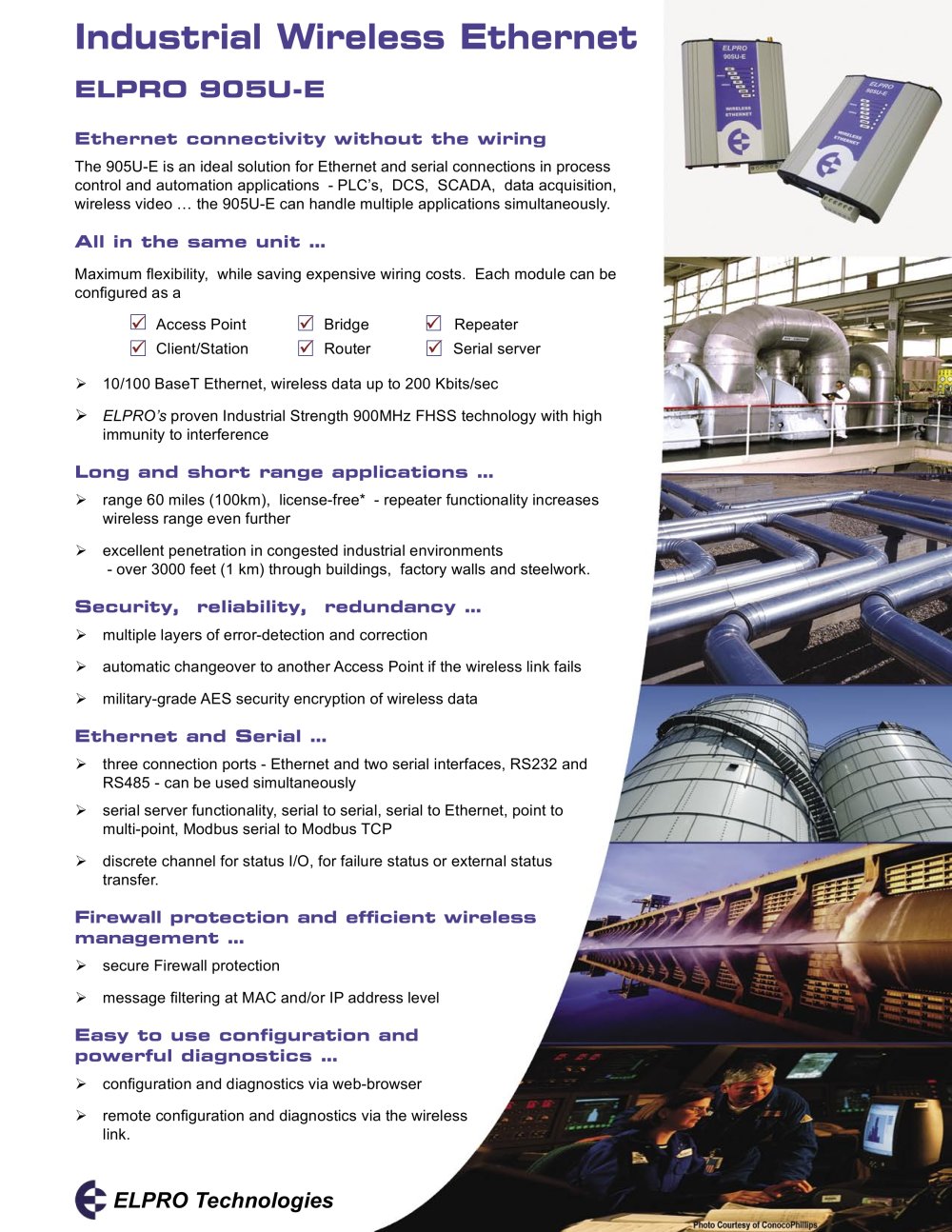

The 905U-E is an ideal solution for Ethernet and serial connections in process control and automation applications - PLCs, DCS, SCADA, data acquisition, wireless video ҅ the 905U-E can handle multiple applications simultaneously. > Maximum flexibility, while saving expensive wiring costs. Each module can be configured as a Access Point Bridge Repeater Client/Station Router Serial server10/100 BaseT Ethernet, wireless data up to 200 Kbits/sec ELPROŒs proven Industrial Strength 900MHz FHSS technology with high immunity to interference > range 60 miles (100km), license-free* - repeater functionality increases wireless range even furtherexcellent penetration in congested industrial environments - over 3000 feet (1 km) through buildings, factory walls and steelwork. > multiple layers of error-detection and correctionautomatic changeover to another Access Point if the wireless link fails military-grade AES security encryption of wireless data > three connection ports - Ethernet and two serial interfaces, RS232 and RS485 - can be used simultaneouslyserial server functionality, serial to serial, serial to Ethernet, point to multi-point, Modbus serial to Modbus TCPdiscrete channel for status I/O, for failure status or external status transfer. > secure Firewall protection message filtering at MAC and/or IP address level > configuration and diagnostics via web-browserremote configuration and diagnostics via the wireless link. >

Open the catalog to page 1

10/100 BaseT RJ45, IEEE 802.3 compliant Bridge/router functions work with all Ethernet protocols Embedded Protocols: TCP/IP, UDP ARP, PPP, ICMP, HTTP, FTP, TFTP, TELNET > RS232 V.24 DCE 1.2 - 115.2 Kb/s, RS485 1.2 to 115.2 Kb/sSerial server functionality provides multiple connectivity modes - serial to serial, serial to Ethernet, Modbus serial to Modbus TCP, and point to multipoint. > secure AESencryption MAC filteringFirewall Access Point / ClientBridge / Routerall in the same unit ... One I/O channel, Input voltage-free contact / Output FET 30VDC 500mAUsed to transfer input to output...

Open the catalog to page 2
