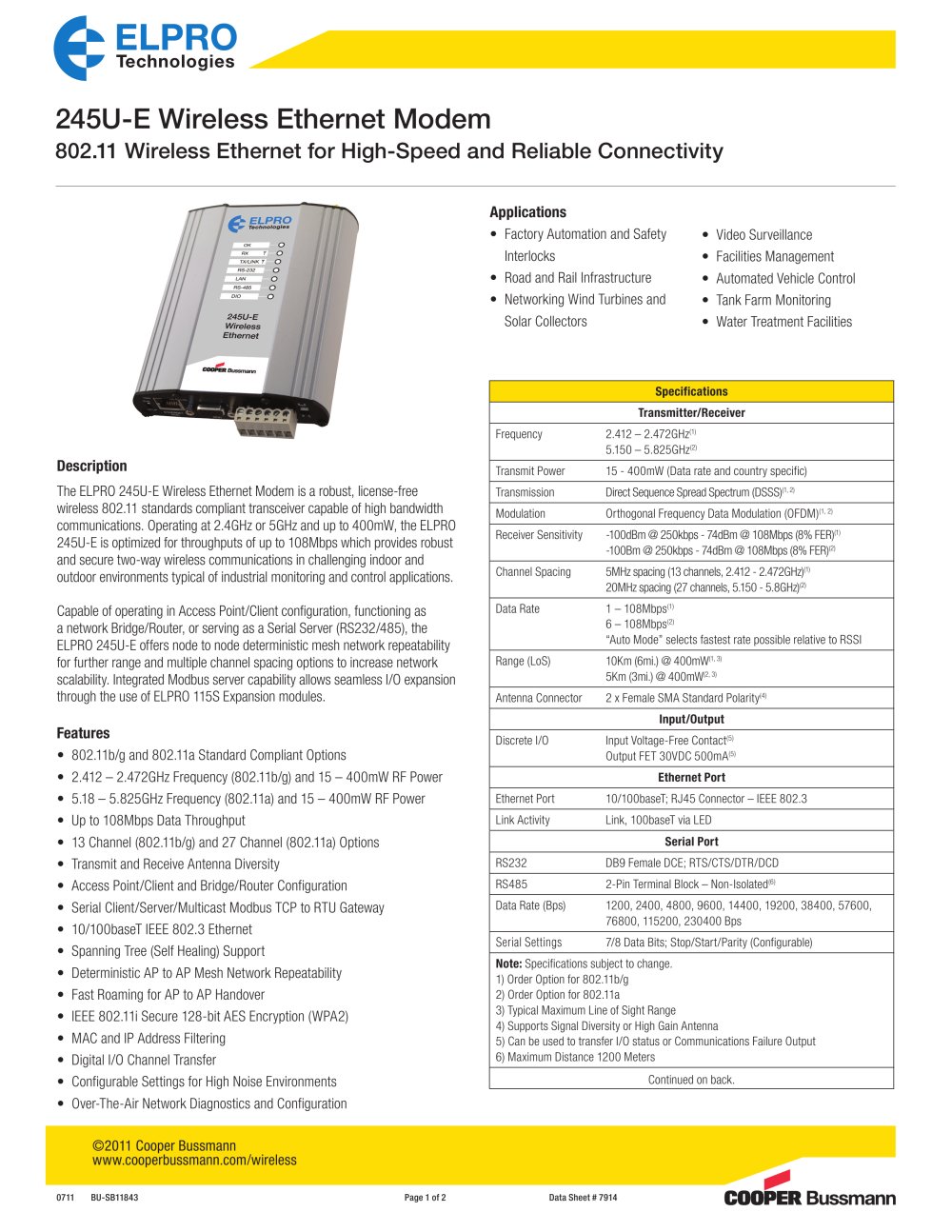

245U-E Wireless Ethernet
Product catalog summary
Specifications
- Transmitter/Receiver: Operates at frequencies 2.412 – 2.472GHz and 5.150 – 5.825GHz with transmit power ranging from 15 to 400mW. Utilizes Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Data Modulation (OFDM).
- Receiver Sensitivity: -100dBm at 250kbps to -74dBm at 108Mbps.
- Channel Spacing: 5MHz for 2.4GHz and 20MHz for 5GHz.
- Data Rate: 1 – 108Mbps for 2.4GHz and 6 – 108Mbps for 5GHz.
- Range: Up to 10Km at 400mW for 2.4GHz and 5Km for 5GHz.
- Antenna Connector: 2 x Female SMA Standard Polarity.
- Discrete I/O: Voltage-Free Contact input, FET output 30VDC 500mA.
- Ethernet Port: 10/100baseT; RJ45 Connector – IEEE 802.3.
- Serial Port: RS232 and RS485 with various data rates up to 230400 Bps.
- Factory Automation, Road and Rail Infrastructure, Networking Wind Turbines, Video Surveillance, Facilities Management, Automated Vehicle Control, Tank Farm Monitoring, Water Treatment Facilities.
- Compliant with 802.11b/g and 802.11a standards.
- Supports up to 108Mbps data throughput.
- Offers multiple configuration options including Access Point/Client and Bridge/Router.
- Includes security features like 128-bit AES encryption and MAC/IP filtering.
- Product codes for different configurations and a list of compatible accessories such as antennas, cables, surge diverters, and power supplies.
- Supports various protocols including TCP/IP, UDP, SNMP, and Modbus.
- User-configurable parameters via HTTPS Embedded Web Server.
- Security features include 802.11i encryption and support for 802.1x Radius Server.
- Meets EMC, RF, Hazardous Area, and Safety standards.
- Dimensions: 114 x 140 x 30mm, Weight: 0.45kg.
- Temperature Rating: -40 to +60°C.
- Power Supply: 9 to 30Vdc with under/over voltage protection.
See more
