240U-E Wireless Ethernet Modem

240U-E Wireless Ethernet Modem
2Pages

Catalog excerpts

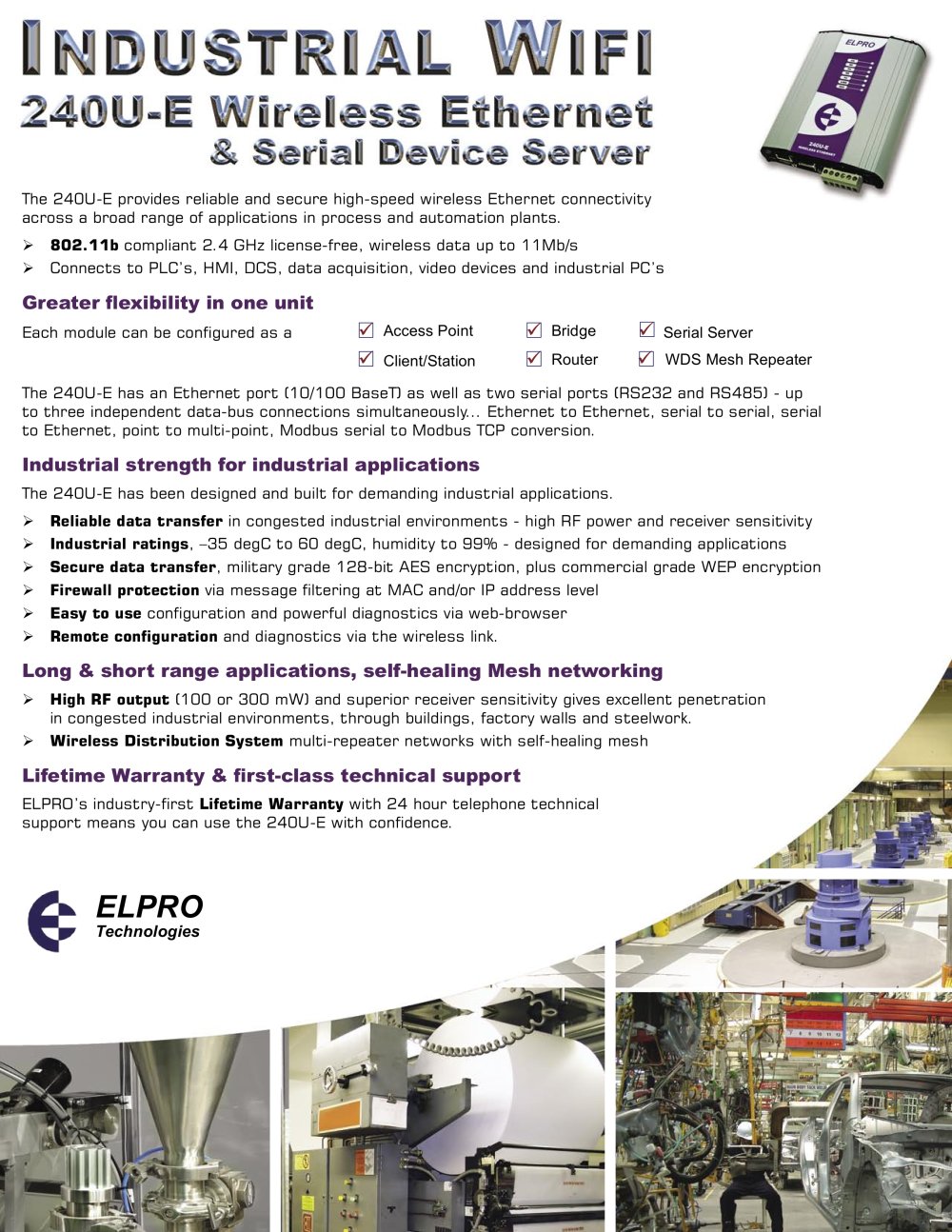

The 240U-E provides reliable and secure high-speed wireless Ethernet connectivity across a broad range of applications in process and automation plants. 802.11b compliant 2.4 GHz license-free, wireless data up to 11Mb/sConnects to PLCs, HMI, DCS, data acquisition, video devices and industrial PCҒs > Each module can be configured as a Access Point Bridge Serial Server Client/Station Router WDS Mesh Repeater The 240U-E has an Ethernet port (10/100 BaseT) as well as two serial ports (RS232 and RS485) - up to three independent data-bus connections simultaneously... Ethernet to Ethernet, serial to serial, serial to Ethernet, point to multi-point, Modbus serial to Modbus TCP conversion. > The 240U-E has been designed and built for demanding industrial applications. Reliable data transfer in congested industrial environments - high RF power and receiver sensitivity Industrial ratings , 35 degC to 60 degC, humidity to 99% - designed for demanding applications Secure data transfer , military grade 128-bit AES encryption, plus commercial grade WEP encryption Firewall protection via message filtering at MAC and/or IP address level Easy to use configuration and powerful diagnostics via web-browser Remote configuration and diagnostics via the wireless link. > High RF output (100 or 300 mW) and superior receiver sensitivity gives excellent penetration in congested industrial environments, through buildings, factory walls and steelwork. Wireless Distribution System multi-repeater networks with self-healing mesh > ELPRO֒s industry-first Lifetime Warranty with 24 hour telephone technical support means you can use the 240U-E with confidence. >

Open the catalog to page 1

10/100 BaseT RJ45, IEEE 802.3 compliant. Bridge/router functions work with all Ethernet protocols Embedded Protocols: TCP/IP, UDP ARP, PPP, ICMP, HTTP, FTP, TFTP, TELNET > ETHERNETRS485 RS232 Input voltage-free contact / Output FET 30VDC 500mA Used to transfer input to output status or communications failure output. > secure AESencryption Access Point / ClientBridge / Routerall in the same unit Configurable as Access Point or Client, Bridge or Router Point to point, Point to multi-point, user configurable addressing. WDS AP Mesh functionality gives Multi-Repeater networking. Address...

Open the catalog to page 2
