105U-G Wireless Gateway

Product catalog summary

Description: The document describes the Cooper Bussmann 105U-G Wireless Gateway, a versatile communication device supporting various industrial protocols and capable of connecting different vendor devices. It operates across multiple frequency bands (150/220/400/869MHz) with power outputs ranging from 5mW to 5W, and supports data rates from 3.6 to 19.2kbps. The device facilitates point-to-multipoint communications with features like forward-error correction, data integrity checks, and encryption.

Features: The gateway supports multi-hop repeating for extended communication range, configurable digital I/O, and offers multiple power options including AC, DC, and battery with UPS charging. It includes diagnostics for signal strength, communication logging, and voltage measurements.

Specifications: The transmitter/receiver section details modulation type (DFSK), transmit power, receiver sensitivity, data rates, and line-of-sight range. The input/output section includes onboard digital I/O specifications and Ethernet port details. The serial port supports RS232 and RS485 connections with configurable data rates.

Applications: The gateway is suitable for SCADA/DCS to PLC communications, moving machinery operations, data-bus cable replacement, smart instrument interfacing, and as a multi I/O data concentrator for large networks.

Protocols and Configuration: The document outlines various models supporting protocols like Modbus RTU, DF1, Ethernet/IP, Modbus TCP, Profibus DP, and DeviceNet. Each model has specific I/O capabilities and communication configurations.

General Specifications: The gateway's physical dimensions, weight, temperature, and humidity operating ranges are provided. It features an extruded aluminum housing with DIN rail mounting and is approved for various EMC, radio, and safety standards.

Power Supply: Details on nominal supply voltage, quiescent and transmission current, and battery supply are included, along with battery charge circuit specifications.

Accessories: The document lists compatible antennas, cables, surge diverters, power supplies, and mounting brackets, along with ordering information for different product codes based on frequency and RF power requirements.

Catalog excerpts

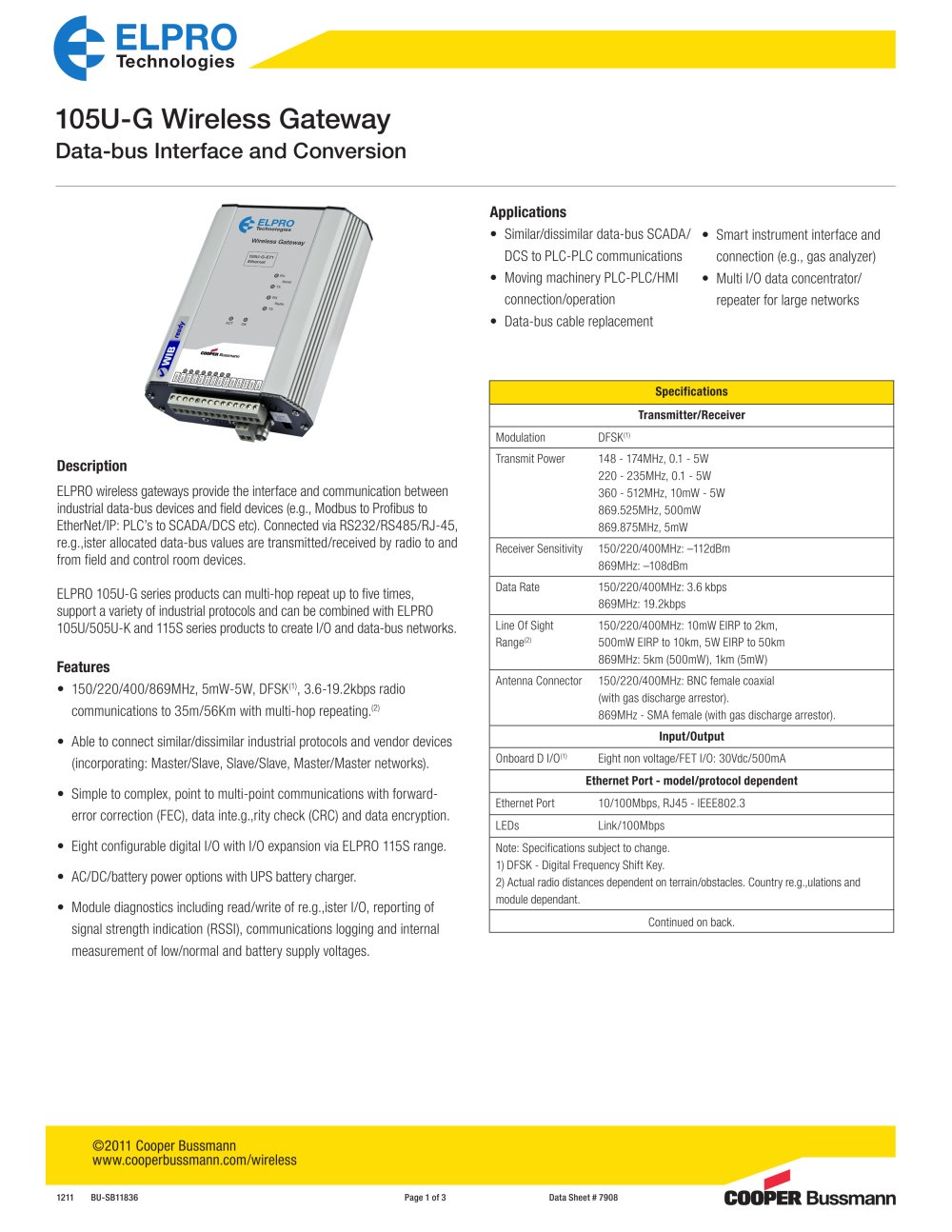

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:13.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:17.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:5.00pt "Tahoma", sans-serif; } .font3 { font:6.00pt "Tahoma", sans-serif; } .font4 { font:7.00pt "Tahoma", sans-serif; } .font5 { font:8.00pt "Tahoma", sans-serif; } .font6 { font:12.00pt "Tahoma", sans-serif; } .font7 { font:23.00pt "Tahoma", sans-serif; } ELPRO Technologies 105U-G Wireless Gateway Data-bus Interface and Conversion Applications Similar/dissimilar data-bus SCADA/ DCS to PLC-PLC communications Օ Moving machinery PLC-PLC/HMI connection/operation Data-bus cable replacement Օ Smart instrument interface and connection (e.g., gas analyzer) Multi I/O data concentrator/ repeater for large networks Spթcifications Transmitter/Receiver Modulation DFSK(1) Transmit Power 148 - 174MHz, 0.1 - 5W 220 - 235MHz, 0.1 - 5W 360 - 512MHz, 10mW - 5W 869.525MHz, 500mW 869.875MHz, 5mW Receiver Sensitivity 150/220/400MHz: -112dBm 869MHz: -108dBm Data Rate 150/220/400MHz: 3.6 kbps 869MHz: 19.2kbps Line Of Sight 150/220/400MHz: 10mW EIRP to 2km, Range(2) 500mW EIRP to 10km, 5W EIRP to 50km 869MHz: 5km (500mW), 1km (5mW) Antenna Connector 150/220/400MHz: BNC female coaxial (with gas discharge arrestor). 869MHz - SMA female (with gas discharge arrestor). Input/Output Onboard D I/O(1) Eight non voltage/FET I/O: 30Vdc/500mA Ethernet Port - model/protocol dependent Ethernet Port 10/100Mbps, RJ45 - IEEE802.3 LEDs Link/100Mbps Note: Specifications subject to change. 1) DFSK - Digital Frequency Shift Key. 2) Actual radio distances dependent on terrain/obstacles. Country re.g.,ulations and module dependant. Continued on back. Description ELPRO wireless gateways provide the interface and communication between industrial data-bus devices and field devices (e.g., Modbus to Profibus to EtherNet/IP: PLC's to SCADA/DCS etc). Connected via RS232/RS485/RJ-45, re.g.,ister allocated data-bus values are transmitted/received by radio to and from field and control room devices. ELPRO 105U-G series products can multi-hop repeat up to five times, support a variety of industrial protocols and can be combined with ELPRO 105U/505U-K and 115S series products to create I/O and data-bus networks. Features 150/220/400/869MHz, 5mW-5W, DFSK(1), 3.6-19.2kbps radio communications to 35m/56Km with multi-hop repeating.(2) Օ Able to connect similar/dissimilar industrial protocols and vendor devices (incorporating: Master/Slave, Slave/Slave, Master/Master networks). Simple to complex, point to multi-point communications with forward-error correction (FEC), data inte.g.,rity check (CRC) and data encryption. Օ Eight configurable digital I/O with I/O expansion via ELPRO 115S range. AC/DC/battery power options with UPS battery charger. Օ Module diagnostics including read/write of re.g.,ister I/O, reporting of signal strength indication (RSSI), communications logging and internai measurement of low/normal and battery supply voltages. ©2011 Cooper Bussmann www.cooperbussmann.com/wireless 1211 BU-SB11836 Page 1 of 3 Data Sheet # 7908 COOPER Bussmann
