Universal Data Logger

Product catalog summary

Overview: The HOTBOX SE is a universal data logger designed by ELPRO for recording various types of process data. It supports multiple sensor types and is ideal for autonomous data recording in diverse environments.

Specifications: The device features six channels, with the ability to select any four for data recording. It supports NTC temperature sensors (-50°C to +140°C), 4-20mA signal probes, and DC voltage sensors. The data logger can store up to 64,000 data points and is equipped with a large display for easy data viewing.

Features: The HOTBOX SE offers autonomous measuring, recording, displaying, and alarming capabilities. It is user-friendly, allowing for quick configuration and operation. The device can be powered by internal batteries or an external supply, with a power-saving mode for extended use.

Applications: The data logger is suitable for various applications, including monitoring pressure, CO2 concentration, gas levels, electrical data, temperature, humidity, air speed, water depth, and force. It is particularly useful for service and installation technicians.

Accessories and Connectivity: The HOTBOX SE comes with connectors for different sensor types, including NTC temperature probes, 4-20mA signals, and DC signals. It supports easy PC analysis with the elproLOG WIN software and offers online representation via user terminal programs.

Alarms and Evaluation: Sensors can be programmed to trigger external alarms. The elproLOG software provides uncomplicated data evaluation, displaying measured values in graphs and supporting ISO quality assurance and GLP applications.

Additional Equipment: The document lists various sensors and accessories compatible with the HOTBOX SE, including pressure transmitters, air speed sensors, CO2 and CO gas transmitters, and more.

Contact Information: ELPRO-BUCHS AG, Langäulistrasse 62, CH-9471 Buchs SG, Switzerland. Tel: +41 81 750 03 11, Fax: +41 81 750 03 17, Email: [email protected], Website: www.elpro.com

Catalog excerpts

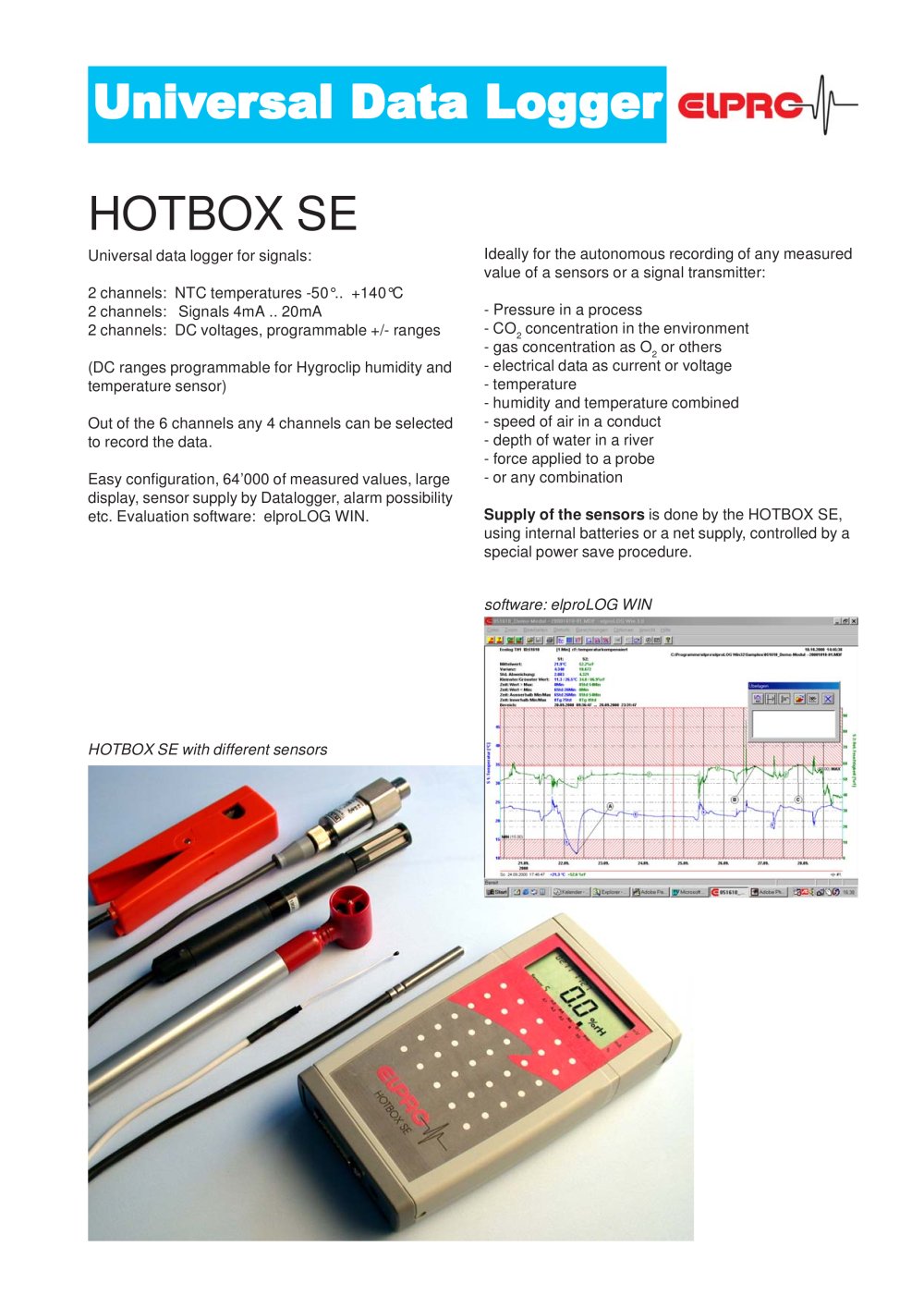

HOTBOX SE, the new data logger from the Swiss company ELPRO, is the ideal device for recording process data. It is simple to operate, easy to handle and can be adjusted quickly to suit all required measurement applications. It is possible to connect: 2 temperature sensors, 2 probes with 4..20mA and 2 sensors with DC voltage signals. The large display shows the values measured by the sensor, in the unit of measurement selected by the customer, periodically and independent of the storage cycle. Any 4 channels can be selected for recording the measured data in the memory which has a capacity for...

Open the catalog to page 2

Freely programmable units such as pressure, CO2, m/sec, etc.capacity for 64000 data points Autoscroll Display (all channels are alternating displayed) Sensor supply by internal batteries 2x 9V = 18V Link for external sensor supplyEasy PC analyse with elproLOG WIN SoftwareOnline representation over user terminal program or Hyperterminal Alarm output over inserted DC switch Connectors: DB15 for PC, printer, terminal 4-pins for 2x NTC Temperature probe 5-pins for 2x 4-20mA signals 7-pins for 2x DC signals and sensor supplyData Logger HOTBOX SEArt. Nr. 2501Suitcase with PC Software and PC cableArt....

Open the catalog to page 3
