ELPRO Datalopgger HAMSTER-E
4Pages

ELPRO-BUCHS AGCH-9471 Buchs SGELPRO MESSTECHNIK GmbHDE-73614 SchorndorfELPRO SERVICES Inc.Marietta, OH 45750 USAhome: www.elpro.com > page 1/4 size="-1">

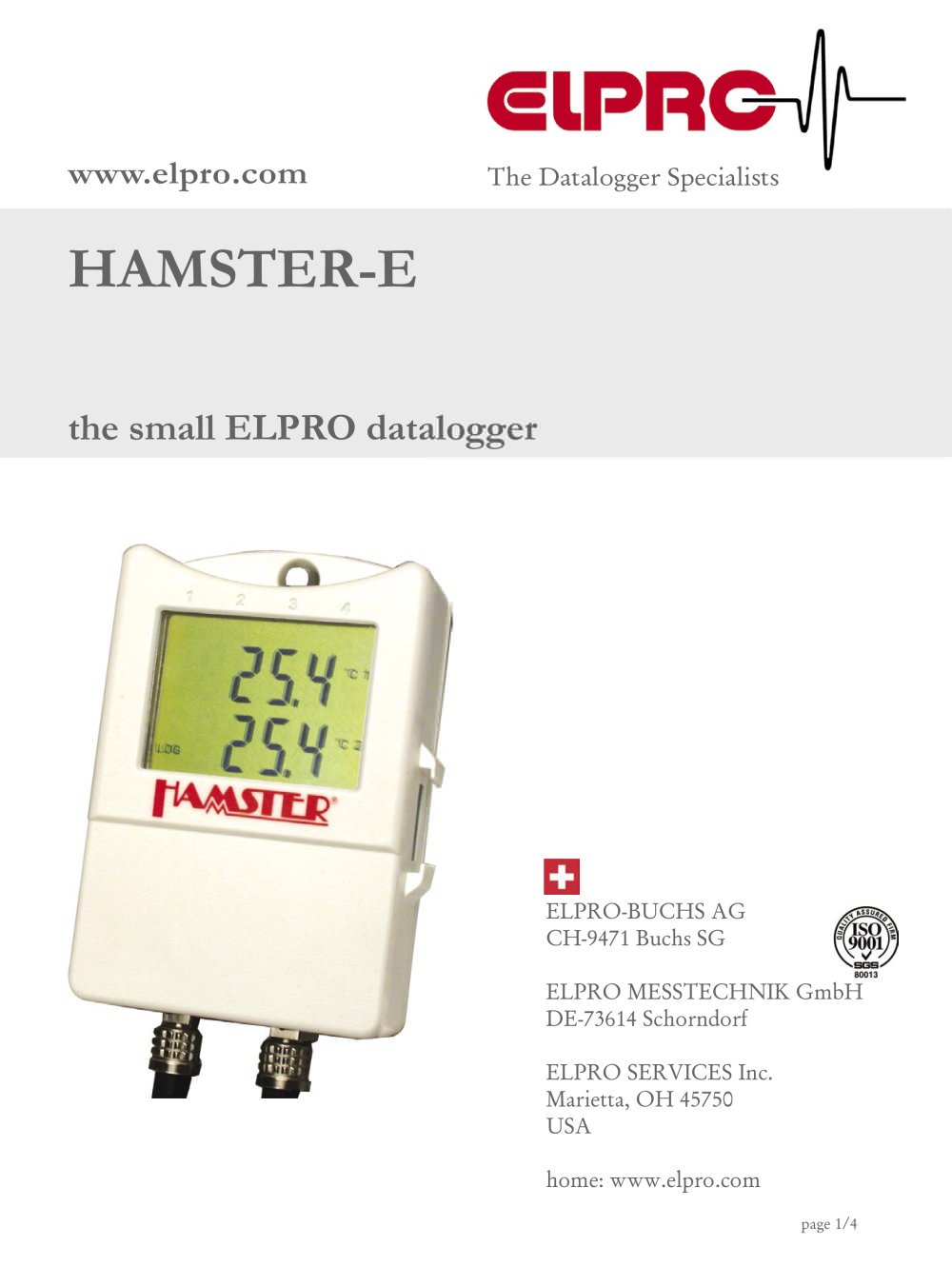

Hamster, the small datalogger: ELPRO dataloggers belonging to the HAMSTER-E series are optimized for recording temperature and relative humidity. The data is stored in the dataloggers internal memory and can be loaded to the PC simply and quickly via serial interface. A small optical cable adapter is used for the data transfer. As a result, the communication interface is kept absolutely water-resistant. Primary applications: - Transport of low-temperature and deep-frozen goods - Warehouses, cold-storage warehouses - Cold storage areas for fresh food products - Display cases and store rooms...

General technical data: Ambient temperature -30C .. +55аC (Hamster ET1 -40C .. +70аC) - Large data memory with 32,000 measured values - Small current consumption with typicalbattery life of 2-3 years- Battery change by user - Selectable recording intervalfrom 10 seconds to 24 hours- Start/stop and loop memory mode Measure range Resolution Accuracy ET1 internal probe -40C .. +70аC 0.2C +/- 0.5аC ET1-D internal probe -30C .. +55аC 0.2C +/- 0.5аC ET2 with probe class B -50C .. +100аC 0.2C +/- 0.5аC -90C .. +260аC 0.2C +/- 1.0аC EHT1 temperature -30C .. +55аC 0.2C +/- 0.5аC rel. humidity 5%rH...

elproLOG evaluation software functions - Programming for all ELPRO dataloggers- Datalogger readout - Printout of all screens and print preview - Clearly laid out graphic representation - Clearly laid out table formats - Status printout with information about datalogger - Statistical data, histogram visualization - Export of data and graphics - Send E-mail: data le per E-mail to receiver Simple, fast, reliable, plug & playFor all ELPRO dataloggers; self-adapts to the various units Can be adapted to match requirements Clearly laid-out documents can be created simply and effectively elproLOG...
