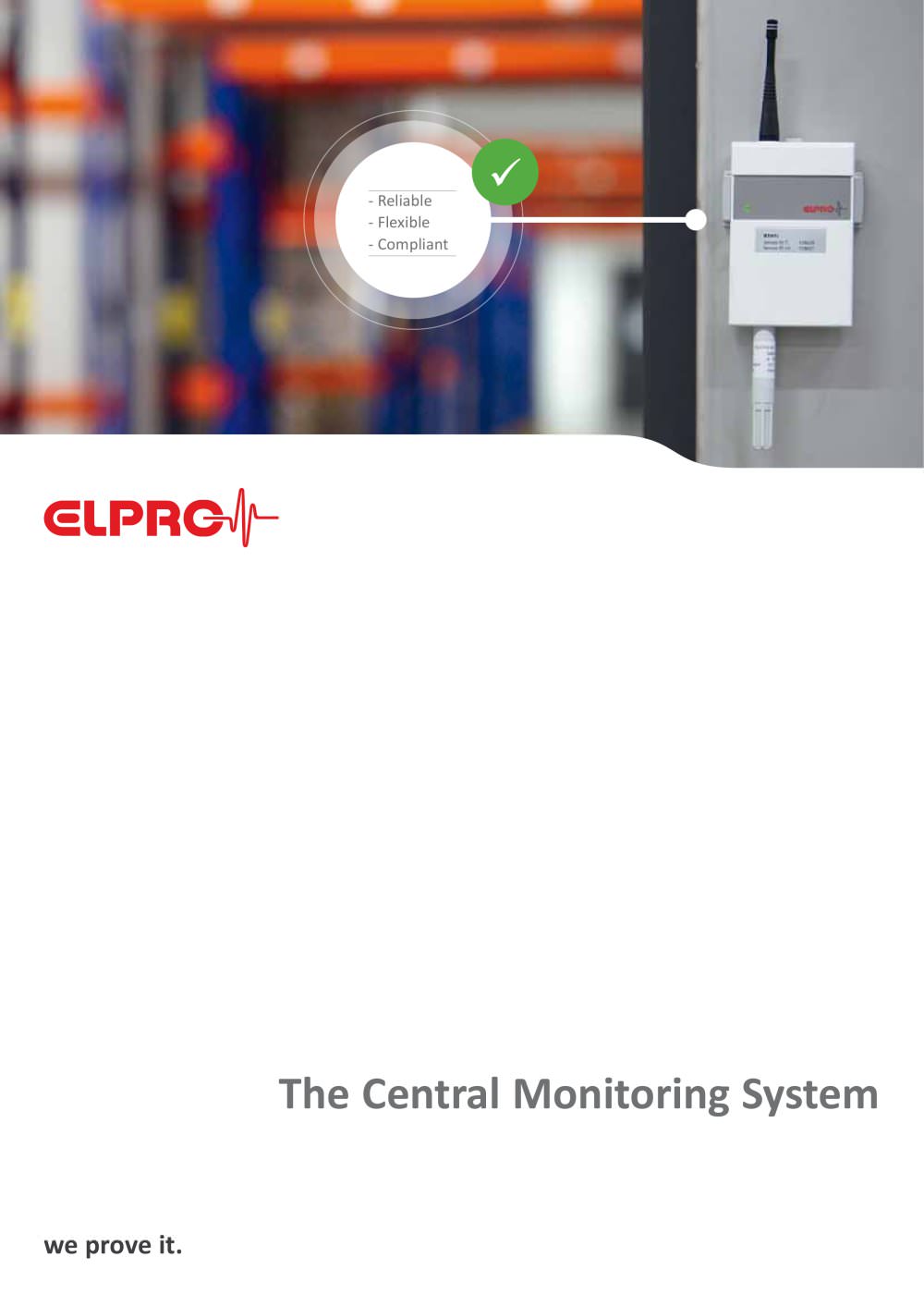

- Reliable - Flexible - Compliant The Central Monitoring System we prove it.

The Central Monitoring System A networked LAN wired or wireless sensor system Reliable There are several attributes that reinforce the high level of Meeting regulatory requirements is important, but how quality and reliability of the ELPRO system. ELPRO has been you meet them is critical. Should your regulatory compli- a datalogging company for over 25 years and develops pro- ances require a full audit trail and username / password ducts to the highest Swiss engineering standards. But, the access, these software components can help you develop most important testimonials are from our...

central monitoring system Measurement, Data Storage, Reporting, Alarms Critical components in a redundant system Regardless of regulatory requirement, redundancy is one of the most important attributes in choosing a central monitoring system. A redundant system means there is a built-in backup plan for monitoring and alarm. For example, if the network connection fails, there are multiple levels of alarms for notification and data is stored on the data logger as well as in historical archive files. Measurement - Real-time monitoring - Values displayed locally on the data logger, on the...

central monitoring system Chemical, pharmaceutical and food industries, or HVAC With a wide and varied range of applications, the ELPRO Central Monitoring System is in use wherever temperature, relative humidity, or other parameters are critical to controlled environments. The ELPRO system monitors data securely while improving processes to save time. Saving time and money with … … fully automated, periodical data logger readout. … real-time display on any PC in your network. … simple and seamless integration into your existing LAN networks. … easy expansion of existing systems with...

central monitoring system The ELPRO Central Monitoring System Simple and compliant system design The ELPRO Central Monitoring System collects and stores data reliably and safely, making it available on your existing LAN network. The system is comprised of multifunctional components – sensors, data loggers and monitoring software. Accurate sensors measure values while data loggers record data and automatically trigger alarms. The alarms are forwarded through the LAN network to the monitoring software. The corresponding monitoring software saves and documents the data, which can then be...

central monitoring system Multiple alarm options increase security Data is continuously collected and transmitted through the LAN network, ensuring a constant flow of information. Because the alarm functions at multiple levels (locally, centrally and independently), this allows for flexible configuration and enhances overall security. Since the alarm functions without software, local alarm can still function without network connections. Additionally, the alarm capability can be customized depending on application and system needs. Alarm functions Automatic phone dialing unit Local alarm...

ecolog-net network data loggers

ecolog-net network data loggers ECOLOG-NET network data loggers Hardware design and communication The ECOLOG-NET data loggers can function independently or in a networked environment. The importance is two-fold. For some applications, a LAN network is either not available or not necessary. In this situation, the ECOLOG-NET is still fully functional and data can be downloaded via USB. Secondly, if the network fails, the data logger continues to monitor and save data. The network-compatible system is easy to integrate by simply plugging in to your existing LAN network. This allows for...

ecolog-net network data loggers Perfect and seamless integration The ECOLOG-NET data loggers have a LAN interface to make the integration of your network instruments as easy as possible. The units can also be adapted with optional PoE (Power over Ethernet) modules, so that the power can be supplied directly from the network cable; thus, the need for additional power outlets is eliminated. Typical applications Measured variables Temperature, relative humidity T: Resistance measurement (NTC) | %RH: capacitive Sensors exchangeable Data security Integrated backup battery for uninterrupted...

ecolog-net network data loggers Data loggers with 4 mA..20 mA capability The ECOLOG-NET family of data loggers is designed to accommodate unique applications such as high rack warehouses and cleanrooms. The LA8 and LR8 model data loggers integrate most transmitters with a standard 4 mA..20 mA output. The wireless transmitters make retrofitting simple and avoid complex wiring installation. Cleanroom compatible design: Front panel made of stainless steel and integrated display Typical applications Number of channels Measured variables Temperature, rel. humidity, CO2, differential pressure and...

ecolog-net network data loggers Wireless and system integrated data communication The ECOLOG-NET wireless sensor system is comprised of the LR8 data logger and application-based transmitters. The ELPRO wireless system does not require repeaters to increase transmission signal. This results in a lower number batteries, more reliable data and easier system validation. Our system also operates with no data buffers and without using mesh network. Since data is transmitted directly from each sensor to the base station, you can be assured the wireless system provides uninterrupted access to your...

ecolog-net network data loggers Wireless sensors for a wide range of applications In conjunction with the LR8 wireless data logger, the wireless sensor system accommodates temperature, temperature / humidity, and 4 mA..20 mA sensors. ELPRO’s radio technology can achieve distances of 40-80 m indoors (depending on structural conditions) and more than 5’000 m in the open field. Wireless sensors RT1e: 1 external, temperature RT2e: 2 external, temperature Combined temperature and humidity probe Wireless sensor for 2 x 4 mA..20 mA signals Typical applications System accuracy with PT100 DIN A...
