Elpress mini - PVL350

Product catalog summary

Overview: The Elpress mini tool PVL350 is designed for efficient crimping with a new sleek design and a high-performance Li-Ion battery. It is optimized for single-handed operation, making it ideal for use in confined spaces.

Key Characteristics:

Single-handed operation for easy control.
Slim crimping head suitable for confined spaces.
High-performance 10.8 V Li-Ion battery with charge status indication.
Rotatable 'flip-top' head for easy die change and accessibility.
Ergonomic 2-component housing for comfortable use.
Lightweight and rapid crimping process for efficiency.
Automatic return of dies upon crimping completion.

Technical Data:

Maximum crimping force: 35 kN.
Crimping range: 6-70 mm².
Crimping process duration: approximately 3-4 seconds, depending on material.
Number of crimps: approximately 180 for 70 mm² Cu.
Battery voltage: 10.8 V.
Battery capacity: 1.5 Ah, Li-Ion.
Charge time: about 40 minutes.
Weight including battery: 1.6 kg.
Operating temperature range: -10°C to +40°C.
Dimensions: 330 x 85 x 60 mm.

Application Area and Dies:

C-sleeves: 10-6/10-6 mm² MBC4.
CUT-connectors: 6-16 mm² MB4016.
Hexagonal dies for various sizes ranging from 4 mm² to 95 mm² with specific die codes.

Contact Information: Elpress AB, P.O. Box 186, SE-872 24 KRAMFORS, Sweden. Tel: +46 (0)612-71 71 00, Fax: +46 (0)46 612-71 71 51, Email: [email protected], Website: www.elpress.net

Catalog excerpts

The Elpress mini tool PVL350 in a new sleek design with a high performance Li-Ion battery that streamlines your work with its improved battery capacity. CHARACTERISTICS: ■ Single-handed operation for easy control of all tool functions ■ Slim fitting crimping head - ideal for confined spaces High-performance 10.8 V Li-Ion battery - with indication of charge status Opening, rotatable “flip-top" head for easy die change and good accessibility Easy and comfortable to use with one hand thanks to its ergonomic 2-component housing with grip-friendly protection Extremely lightweight and rapid crimping process for maximum efficiency Automatic return of dies when crimping is completed TECHNICAL DATA PVL350: Crimping force Crimping range Crimping process Number of crimps Battery voltage Battery capacity Charge time Weight including battery Ambient temperature Dimensions

Open the catalog to page 1

All Elpress catalogs and technical brochures

Archived catalogs

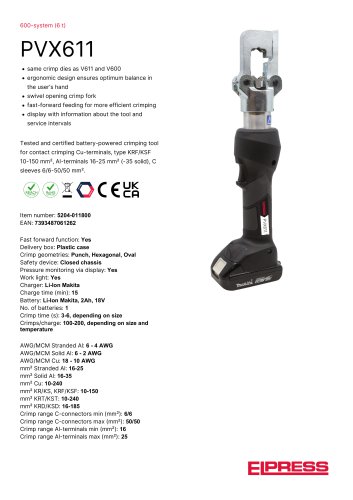

PVX611
