AG-02

Product catalog summary

Product Overview: The AG-02 antistatic gun is a transvector compressed air gun designed to remove static charge efficiently. It features a 'shockless' ionization pin, ensuring safety upon contact, and is housed in a durable gun body.

Key Features: The combination of the ionization pin and transvector gun allows for effective static charge removal over large areas with minimal compressed air usage. The gun is ergonomic and robust, utilizing the transvector principle to amplify air volume. A variety of nozzles are available for different applications.

Specifications:

Working Range: 50-800 mm
Operating Voltage: 7000 V
Power Supply: AF2WR – PS1WR
Maximum Pressure: 8 Bar
Compressed Air Consumption: Max 500 Nl/min (at 6 bar)
Noise Level: 90 dB at 30 cm distance and 4 bar pressure
Ambient Temperature: 0° C - 70° C
High Voltage Cable Lengths: 3/5/10 m, with other lengths available upon request

Additional Information: The AG-02 is supplied with a high-voltage cable in various lengths, which must be connected to a power supply for operation.

Catalog excerpts

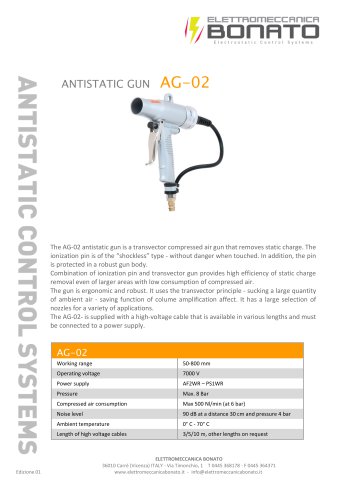

ANTISTATIC CONTROL SYSTEMS ANTISTATIC GUN AG-02 The AG-02 antistatic gun is a transvector compressed air gun that removes static charge. The ionization pin is of the "shockless" type - without danger when touched. In addition, the pin is protected in a robust gun body. Combination of ionization pin and transvector gun provides high efficiency of static charge removal even of larger areas with low consumption of compressed air. The gun is ergonomic and robust. It uses the transvector principle - sucking a large quantity of ambient air - saving function of colume amplification affect. It has a large selection of nozzles for a variety of applications. The AG-02- is supplied with a high-voltage cable that is available in various lengths and must be connected to a power supply. ELETTROMECCANICA BONATO 36010 Carre (Vicenza) ITALY - Via Timonchio, 1 T 0445 368178 - F 0445 364371 www.elettromeccanicabonato.it - [email protected]

Open the catalog to page 1

ANTISTATIC CONTROL SYSTEMS 36010 Carre (Vicenza) ITALY - Via Timonchio, 1 T 0445 368178 - F 0445 364371 EdizioneOl www.elettromeccanicabonato.it - [email protected]

Open the catalog to page 2
