DL 200
1 / 1 PageView full catalog
DL 200
Product catalog summary
Overview: The DL200 is an industrial laser designed for precision in repairing large molds and welding large objects. It features motorized and manual movements for executing specific welds in hard-to-reach positions.
Specifications:
- Motorized laser on 3 axes (X-Y-Z) controlled by joystick.
- High-resolution in-line camera.
- Tilt and rotation on 2 axes of the welding arm.
- Laser source: 2xNd:Ce: YAG 1064 nm.
- Average power: 140 W, Peak power: 10 kW.
- Energy: 200 J, Impulse time: 0.5 - 20 ms.
- Pulse frequency: 0.5 - 30 Hz.
- Spot diameter: 0.2 - 2.0 mm, Motorized spot setting with 30 positions.
- Wave programs: Pulse Shaping with 6 presets.
- Memory cells: 100 stored.
- Power supply: 230 V AC, 50/60 Hz (110 V on request) - 4.4 kW.
- XYZ axes stroke: X=50 cm, Y=40.5 cm, Z=60 cm.
- Type: Floor standing.
Dimensions and Weight:
- Dimensions: 93 cm x 109 cm x 149 cm.
- Weight: 95 kg (209.4 lb).
See more
Catalog excerpts

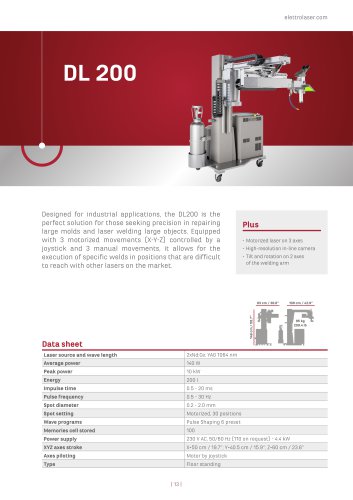

• Motorized laser on 3 axes • High-resolution in-line camera • Tilt and rotation on 2 axes of the welding arm Designed for industrial applications, the DL200 is the perfect solution for those seeking precision in repairing large molds and laser welding large objects. Equipped with 3 motorized movements (X-Y-Z) controlled by a joystick and 3 manual movements, it allows for the execution of specific welds in positions that are difficult to reach with other lasers on the market.
Open the catalog to page 1All Elettrolaser S.r.l. catalogs and technical brochures
Elettrolaser catalog EN23 Pages

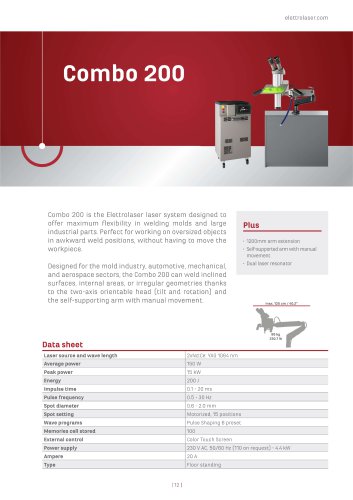

Combo 2001 Page

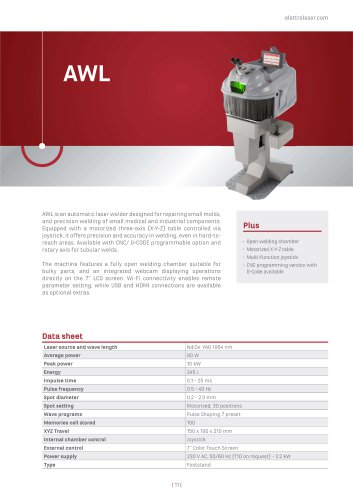

AWL1 Page
