TQ40-C, 1A

Product catalog summary
Overview: The document provides technical specifications and ordering information for the TQ40 split-core current transformer by ELEQ, designed for digital measurement systems. It highlights the product's compact design, accuracy, and ease of installation.
Specifications:
  • Accuracy: Class 1, suitable for high-accuracy kWh measurements, compliant with IEC 61869-2 standards, valid from 5 to 120% In.
  • Burden and Ratios: Various models with ratios such as 250/5A, 300/5A, 400/5A, and 500/5A, all with a burden of 1VA.
  • Environmental Conditions: Designed for indoor use with an operating temperature range of -10°C to +55°C, relative humidity of 5% to 85% non-condensing, and protection degree of IP20.
  • Application Conditions: Rated short-time thermal current of 60 x In for 1 second, continuous thermal current of 100%, rated insulation level of 0.72/3/-kV, and rated frequency of 50/60Hz.
  • Physical Dimensions: Suitable for conductors with a maximum diameter of 28mm, with secondary leads of varying lengths and specifications depending on the model.
Installation Features: The TQ40 transformer includes color-coded leads and ensures correct closure with an audible "click". It comes with tie wraps for easy fixation around the primary conductor.
See more

Catalog excerpts

TQ40-C, 1A-1

\ mastering electricity TQ40-C Split-core Current Transformer The very compact TQ40 split-core current transformer from ELEQ is especially designed for connection to digital measurement systems. The TQ40 is supplied with color coded leads. The accuracy class 1 for all these ct's are perfect for high accurate kWh measurements. Correct closing of the current transformer is guaranteed by a distinct sound of a "click". For fixation two tie wraps are supplied that are easily mounted around the primary conductor. Technical Specifications Ordering Specifications 1) Accuracy conform IEC 61869-2, valid from 5 to 120% In Wiring Diagram Environmental conditions This product is designed to be safe under the following conditions: Operating temperature: Relative humidity: Protection degree: Only suitable for insulated primary Application conditions Rated short-time thermal current: Continuous thermal current Rated insulation level: Rated frequency: Primary window dimensions: Secondary leads:

 Open the catalog to page 1

All ELEQ catalogs and technical brochures

  1. LS-94
    LS-94

    1  Page

  2. LS-84
    LS-84

    1  Page

  3. LS-74
    LS-74

    1  Page

  4. UAD16
    UAD16

    1  Page

  5. UAD6
    UAD6

    1  Page

  6. TQ50-E, TQ50-L, 1A
    TQ50-E, TQ50-L, 1A

    1  Page

  7. TQ40-B, 1A
    TQ40-B, 1A

    1  Page

  8. TQ30 Split
    TQ30 Split

    1  Page

  9. ELEQ GSA
    ELEQ GSA

    4  Pages

  10. RM60-D
    RM60-D

    1  Page

  11. IA60B31K
    IA60B31K

    1  Page

  12. SB08
    SB08

    1  Page

  13. TQ-line
    TQ-line

    1  Page

  14. GSR
    GSR

    4  Pages

  15. ELEQ Choke module for supressing ferro-resonance
    ELEQ Choke module for supressing ferro-resonance

    1  Page

  16. WSR
    WSR

    1  Page

  17. TQ50
    TQ50

    1  Page

  18. VCT32
    VCT32

    1  Page

  19. UAK
    UAK

    1  Page

  20. ZK4-M6/M8
    ZK4-M6/M8

    1  Page

  21. RM27
    RM27

    1  Page

  22. TQ120
    TQ120

    1  Page

  23. Junction box with relays
    Junction box with relays

    1  Page

  24. ELEQ analogue frequency meter with built in µP, WFIV series
    ELEQ analogue frequency meter with built in µP, WFIV series

    1  Page

  25. Intelligent currenttransformer
    Intelligent currenttransformer

    12  Pages

  26. Universal measuring transducer
    Universal measuring transducer

    6  Pages

  27. COMPACT-transducer EM800-
    COMPACT-transducer EM800-

    1  Page

  28. COMPACT-transmitter EM438
    COMPACT-transmitter EM438

    1  Page

  29. kWh meter single and three phase DIN rail mounting
    kWh meter single and three phase DIN rail mounting

    3  Pages

  30. Choke module for supressing ferro-resonance
    Choke module for supressing ferro-resonance

    1  Page

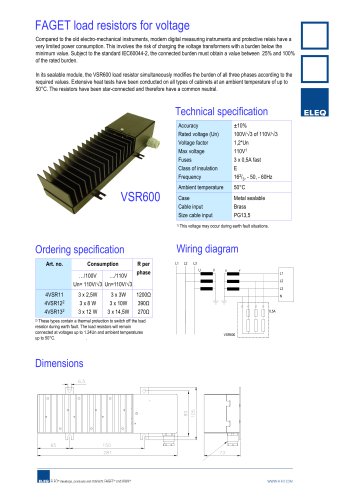

  31. Completely assembled 3 phase box with load resistors for voltage transformers, model VSR600
