Thickness measurement MiniTest 403/405

Product catalog summary

Overview: The MiniTest 403/405 series by ElektroPhysik is a precision ultrasonic micrometer designed for rugged industrial conditions. It features a dual-element transducer and measures materials ranging from 0.63 to 500 mm (0.025 to 19.999 inches). The device offers a switch for selecting between English and metric units and includes an internal data logger in the MiniTest 405 model.

Specifications:

Measuring Range: 0.63 to 500 mm / 0.025 to 19.999 inches in steel, depending on material and surface.
Resolution: 0.01 mm / 0.001 inch.
Measuring Accuracy: Varies based on material and conditions.
Velocity Range: 1250 to 10,000 m/sec / 0.0492 to 0.3937 inch/μs.
Measuring Rate: 4 readings per second for single point measurements or 16 per second in Scan Mode.
Calibration: Single and two-point calibration options included.
Weight: 284 g / 10 ounces (with batteries).
Size: 64 x 121 x 32 mm / 2.5 x 4.75 x 1.25 inches (W x H x D).
Operating Temperature: –30° to 50°C / –20° to 120°F.
Case: Extruded aluminium body with nickel-plated aluminium end caps, gasket sealed.
Keypad: Sealed membrane resistant to water and petroleum products, with six or nine tactile-feedback keys.
Transducer: Dual-element with a frequency range of 1 to 10 MHz, locking quick disconnect LEMO connectors, and a 4-foot cable.
Power Source: 2 x 1.5 V alkaline or 1.2 V NiCad AA cells, operating for 200 hours on alkaline and 130 hours on NiCad.
Display: Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for poor light conditions.
Data Output (MiniTest 405 only): RS 232 output for data transfer to a serial printer, computer, or external storage device.

Features:

Rugged design with an all-metal case and gasket sealing for harsh environments.
Portable and operates on 2 AA batteries for over 200 hours.
Alarm Mode: Alerts with a red LED and sound if measurements fall below a minimum acceptable thickness, and a green LED if above.
Differential Mode: Displays the difference from an entered acceptable thickness value.
High-speed scan for capturing minimum thickness.

Additional Information: The MiniTest 405 model includes an automatic numeric data logging system capable of storing 1 to 1000 readings. The device is designed to be user-friendly and adaptable to various industrial applications.

Catalog excerpts

Thickness measurement MiniTest 403/405-1

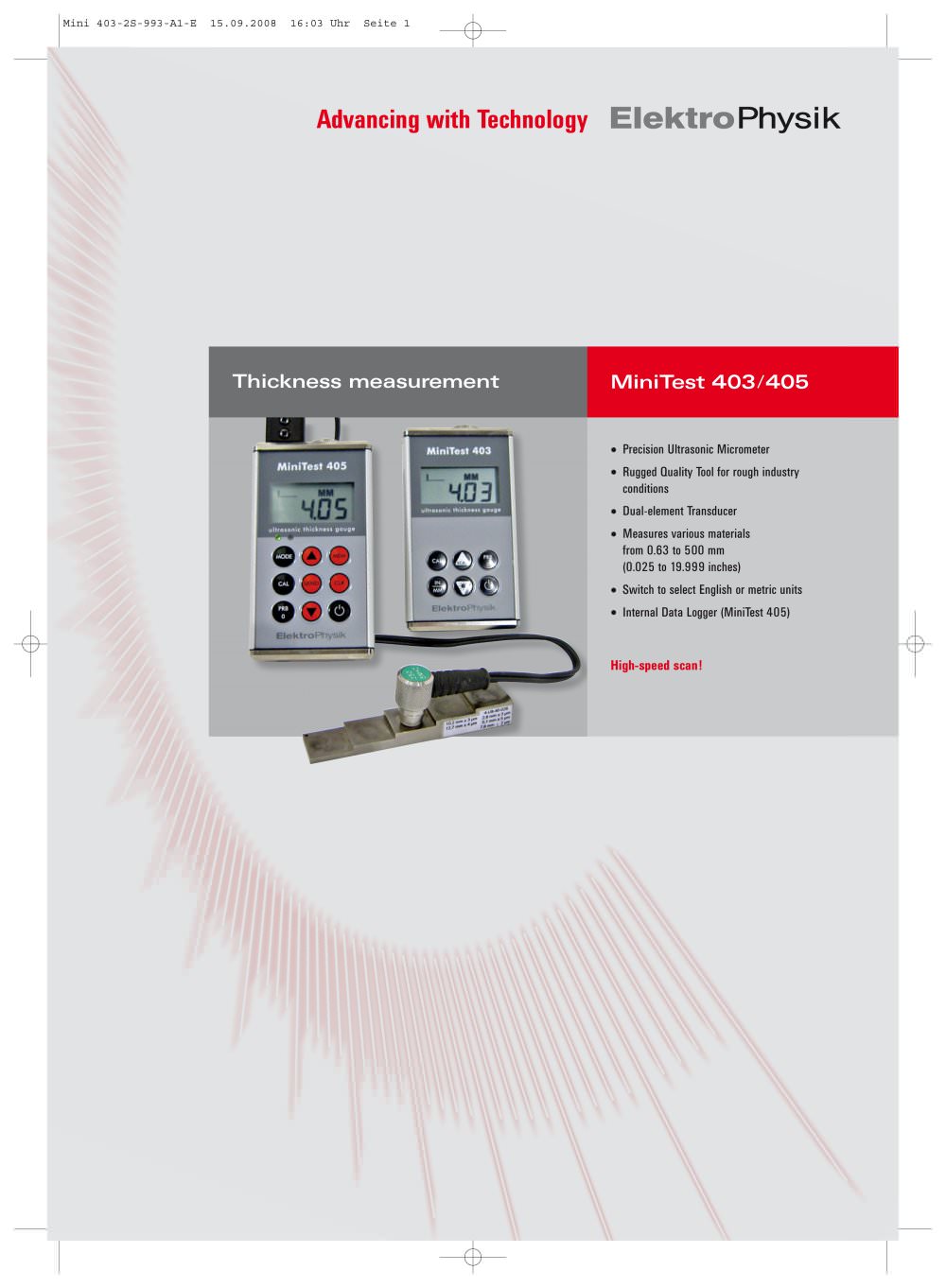

Advancing with Technology MiniTest 403/405 • Precision Ultrasonic Micrometer • Rugged Quality Tool for rough industry conditions • Dual-element Transducer • Measures various materials from 0.63 to 500 mm (0.025 to 19.999 inches) • Switch to select English or metric units • Internal Data Logger (MiniTest 405) High-speed scan! Thickness measurement Mini 403-2S-993-A1-E 15.09.2008 16:03 Uhr Seite 1

Open the catalog to page 1

Thickness measurement MiniTest 403/405-2

MiniTest 403/405 Series - The standard has been set! ElektroPhysik’s rugged thickness gauge family has been designed and built to satisfy the roughest industry conditions. The variety of features offered in the MiniTest 403 and MiniTest 405 allow the user to select a quality tool that will meet or exceed their specific application needs. The gauges come in an all metal case and are sealed with gaskets to protect Differential Mode: Enter acceptable thickness value, unit will display +/– the difference from the value entered. Alarm mode: Enter a minimum acceptable thickness value. If measurement...

Open the catalog to page 2
