P.I.G. 455

Product catalog summary

Overview: The Paint Inspection Gauge (P.I.G.) 455 by ElektroPhysik is a compact instrument designed for measuring coating thickness on non-metallic substrates such as wood, concrete, and plastics. It is particularly useful where traditional electromagnetic methods are ineffective.

Specifications:

Measuring Range: 2 - 200 μm (standard)
Dimensions: 110 x 85 x 25 mm
Weight: 0.4 kg
Power Supply: 9 V battery
Light Source: LED diffuse white
Measuring Microscope: Magnification of 50, Reticle 2 mm (1/100-division)

Testing Principle: The P.I.G. 455 uses a standardized wedge cut procedure to measure layer thickness. The coating is cut at a defined angle, and the thickness is calculated based on the slope projection of the cut face, using a measuring microscope.

Design and Function: The device features a black painted aluminum block with key components including:

Exchangeable carbide tip with precision-ground angular cutting blade
Measuring microscope with 50x magnification
Support pins for stability
Battery compartment for a 9 V battery
LED and fiber-optic light guide for illumination

Technical Data: The gauge supports various carbide tips for different measuring ranges and cutting angles:

No. 1: 20 - 2000 μm, 45° angle
No. 4: 10 - 1000 μm, 26.6° angle
No. 5: 5 - 500 μm, 14° angle
No. 6: 2 - 200 μm, 5.7° angle

Order Information: The P.I.G. 455 can be ordered with various accessories and spare parts, including special tips for different layer thicknesses.

Scope of Delivery: The package includes a carbide tip No. 6, a 9 V battery, a marking pen, a leather case, and operating instructions.

Catalog excerpts

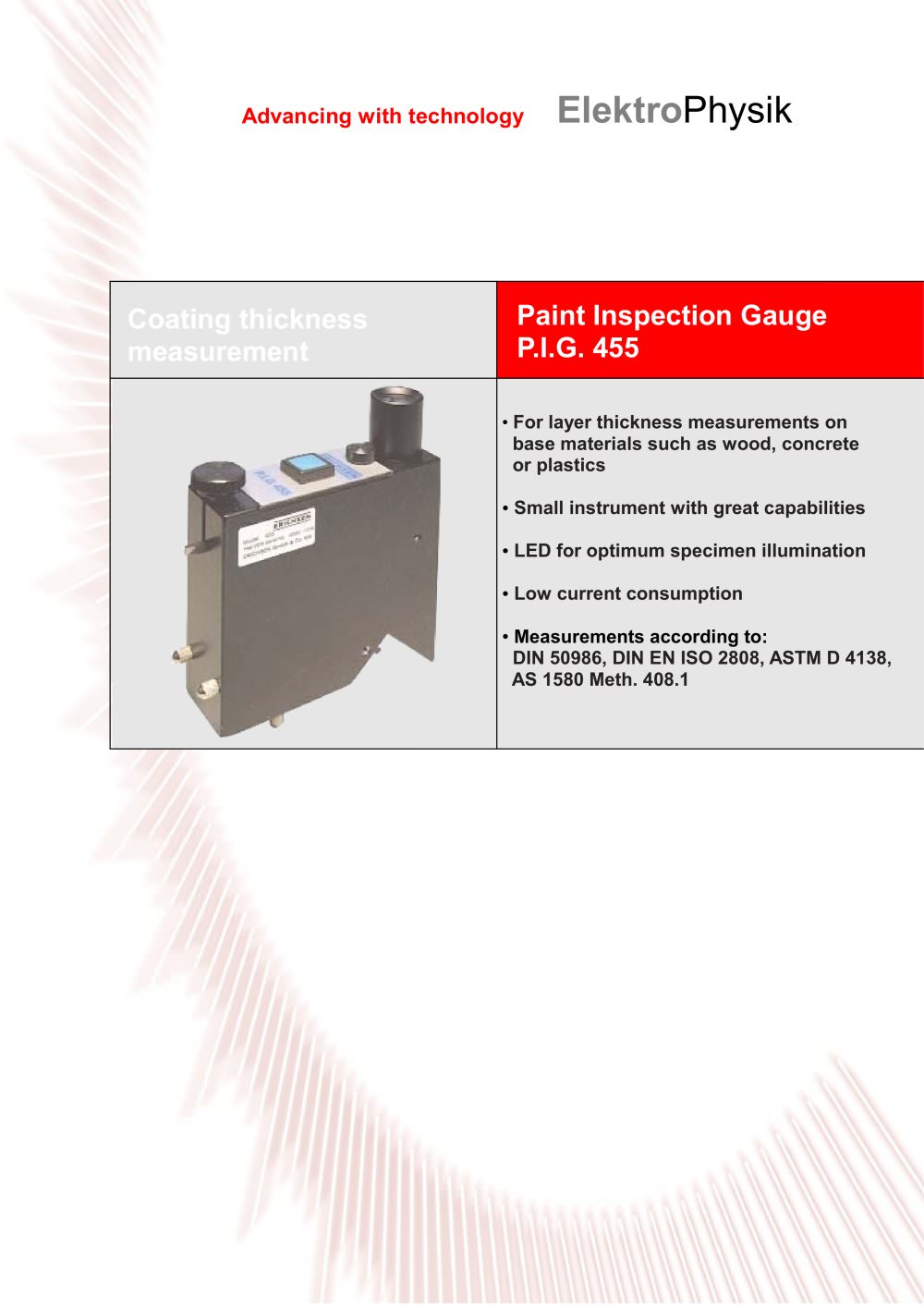

ElektroPhysik Coating thickness measurement Paint Inspection Gauge P.I.G. 455 œ For layer thickness measurements on base materials such as wood, concrete or plastics œ Small instrument with great capabilities œ LED for optimum specimen illumination œ Low current consumption œ Measurements according to: DIN 50986, DIN EN ISO 2808, ASTM D 4138, AS 1580 Meth. 408.1 Advancing with technology

Open the catalog to page 1

ElektroPhysik Pasteurstr. 15 D-50735 Köln Tel.: (0221 )75204-0 Fax: (0221 )75204-67 www.elektrophysik.com [email protected] ElektroPhysik USA 778 West Algonquin Rd. Arlington Heights IL 60005 Phone: +1 847 437-6616 Fax: +1 847 437-0053 www.elektrophysik.com [email protected] ElektroPhysik Nederland Borgharenweg 140 6222 AA Maastricht Tel.: +31 (0)43/3520060 Fax: +31 (0)43/3631 168 www.elektrophysik.com [email protected] Purpose and Application Testing principle Design and Function Technical Data Measuring range (standard): 2 - 200 ìm Dimensions: 110 x 85 x 25 mm Net weight: 0,4...

Open the catalog to page 2
