Picogloss 562 MC

Product catalog summary

Overview: The PicoGloss 562 MC is a compact, two-angle gloss meter designed for high precision gloss measurements. It features 20° and 60° measuring geometries, making it suitable for both high gloss and medium gloss surfaces. The device is particularly useful for on-site measurements due to its small size, comparable to a PC mouse.

Specifications: The device measures 105 x 31 x 73 mm and weighs 300 g. It uses LEDs as a light source and a Si-photo-cell detector. The display is an 8-digit LCD with a digit height of 11.5 mm. It operates within a temperature range of +15 °C to +40 °C and can store readings for 30 seconds. The device is powered by two LR03 batteries or via USB.

Measurement Capabilities: The PicoGloss 562 MC supports three measuring modes and automatic change-over for mirror-gloss measurements. It complies with standards such as EN ISO 2813, DIN 67 530, ISO 7668, and ASTM D 523. The reproducibility varies from 0.2 GU to 1 GU depending on the gloss unit range.

Features: The device offers single-key operation for ease of use, automatic calibration with a single standard, and a USB interface for data transfer. The software PICOSOFT III is available for data logging and processing.

Included Accessories: The package includes a high gloss standard, two LR03 batteries, a USB cable, a lens cloth, a transport case, and operating instructions.

Order Information: The product can be ordered using Order-No. 85-800-0118. Additional accessories include medium gloss standards for 20° and 60° measurements and a high gloss standard spare.

Contact Information: ElektroPhysik provides contact details for their offices in Germany, USA, and the Netherlands for further inquiries.

Catalog excerpts

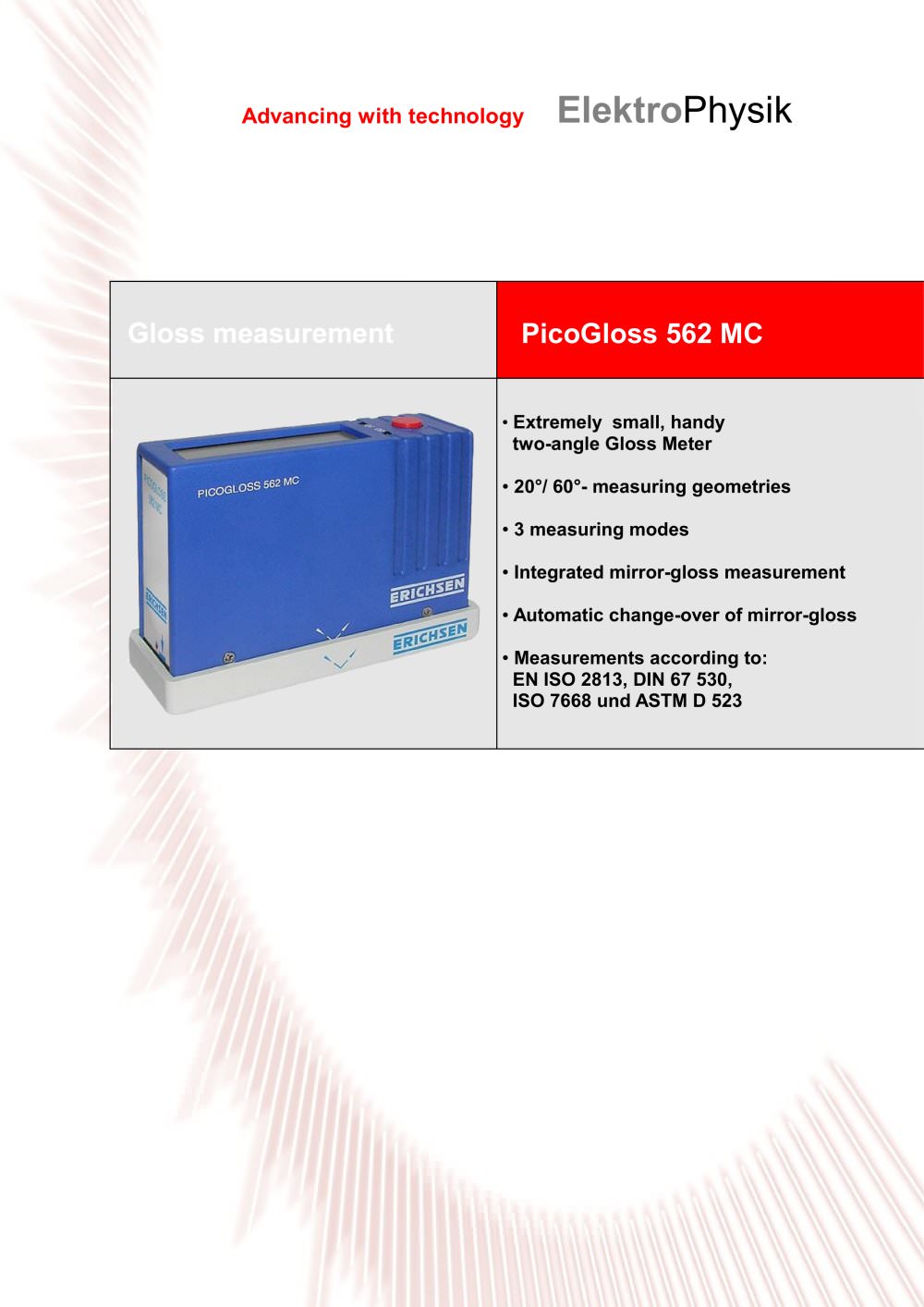

ElektroPhysik Gloss measurement PicoGloss 562 MC œ Extremely small, handy two-angle Gloss Meter œ 20°/ 60°- measuring geometries œ 3 measuring modes œ Integrated mirror-gloss measurement œ Automatic change-over of mirror-gloss œ Measurements according to: EN ISO 2813, DIN 67 530, ISO 7668 und ASTM D 523 Advancing with technology

Open the catalog to page 1

Design Special Features Reference-class: Technical Data Dimensions (L x W x H): 105 x 31 x 73 mm Net weight: 300 g Measuring aperture: 10 x 24 mm Measuring spot: 20°: 9 x 9 mm 60°: 8 x 16 mm Measuring geometry: 20°/60° Light source: LEDs Detector: Si-photo-cell Display: 8-digit LCD height of digits 11,5 mm PC-interface: USB Power supply: 2 round cells (LR03)or USB Permissible temperature range: Storage: - 10 °C to + 60 °C Operating (non-dewy): + 15 °C to + 40 °C Reproducibility: 0 to 150 GU: 0,2 GU 150 to 1000 GU: 0,5 GU 1000 to 2000 GU: 1 GU Reproducibility in case of interfering irridiation...

Open the catalog to page 2
