Picogloss 503

Product catalog summary

Overview: The Picogloss 503 is a portable, three-angle gloss meter designed for standardized gloss measurements across high, medium, and low gloss ranges. It supports measuring geometries of 20°, 60°, and 85° and complies with DIN, ISO, ASTM, BS, and JIS standards.

Design and Features: The device is compact and user-friendly, featuring a scroll wheel for navigation and a side key for initiating measurements. It includes integrated USB and Bluetooth interfaces for data transmission and power supply. The device comes in a handy case with a calibration standard.

Special Features: The Picogloss 503 offers a multilingual menu, a high-contrast LC display, and automatic calibration with a single standard. It performs a self-test upon startup and recommends standard checks if necessary. The device automatically switches to mirror gloss measurement for high-gloss surfaces.

Measurement and Evaluation: The gloss meter provides continuous measurement, displaying current, average, minimum, and maximum values. The 'gloss-link' software facilitates data transmission and report generation. Statistical evaluations can be performed on multiple measurements, with results stored and compared against references.

Accuracy and Technical Data: The device offers high accuracy with repeatability of 0.2 GU and reproducibility of 0.5 GU for ranges up to 99.9 GU, and 0.2% and 0.5% respectively for ranges up to 2000 GU. It is powered by a 1.5V alkaline battery or via USB, with a memory capacity for 999 measurements.

Order Information: The Picogloss 503 package includes the gloss meter, holder with gloss standard A, evaluation software, Bluetooth adapter, USB cable, hand strap, battery, carrying case, calibration certificate, and operation instructions.

Contact Information: ElektroPhysik provides contact details for their offices in Germany, USA, and the Netherlands for further inquiries.

Catalog excerpts

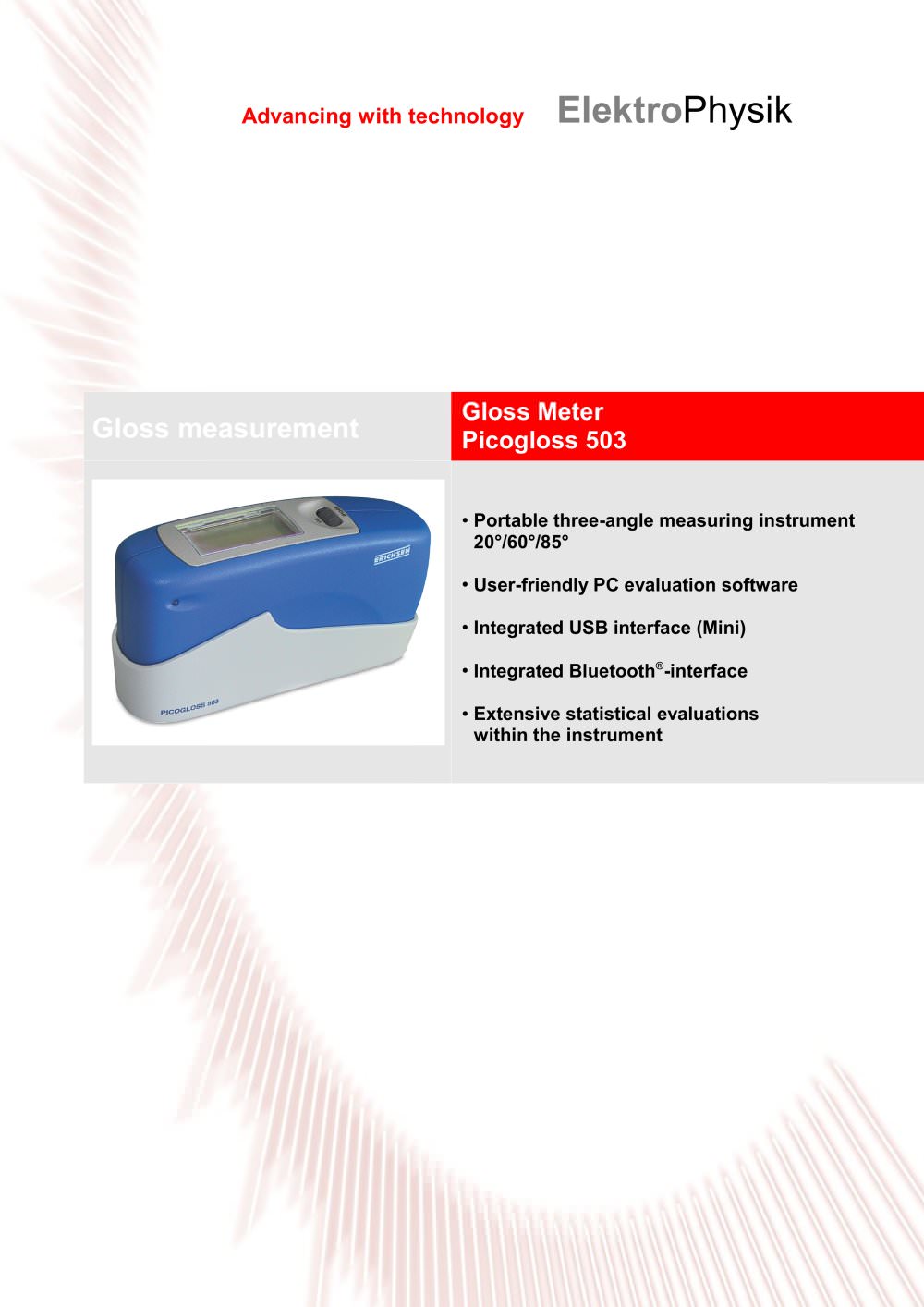

Gloss Meter Picogloss 503 œ Portable three-angle measuring instrument 20°/60°/85° œ User-friendly PC evaluation software œ Integrated USB interface (Mini) œ Integrated Bluetooth®-interface œ Extensive statistical evaluations within the instrument Advancing with technology ElektroPhysik Gloss measurement

Open the catalog to page 1

Design The PICOGLOSS 503 is a compact, portable threeangle gloss meter with measuring geometries of 20°, 60° and 85°, for standardised measurements (in accordance with DIN, ISO, ASTM, BS and JIS) of all three gloss ranges “high gloss“, “medium gloss “ and “low gloss“ - thus it is almost universally applicable. The PICOGLOSS 503 is operated by way of a scroll wheel using a simple, user-friendly navigation on the display. The measuring procedure is started by actuating a key that is located at the side in an ergonomic manner. In case of e. g. high gloss metallic or chromiumplated surfaces the instrument...

Open the catalog to page 2
