Paint Borer 518

Product catalog summary

Overview
The PAINT BORER 518 S is a universal thickness measuring instrument designed for assessing the thickness of all coatings on any substrate, including individual layers in multi-layer coatings. It utilizes the standardized wedge cut method to calculate layer thickness through a geometrical relationship.

Technical Specifications

Dimensions: 145 x 55 x 110 mm
Net weight: Approximately 850 g
Measuring accuracy: 1%
Rechargeable battery: 6F 22 (6LR 61)
Minimum sample dimensions: 150 x 25 mm without specimen table, 10 x 6 mm with specimen table

Features

Compact design with all components enclosed in a sturdy housing
Drill and microscope mounted on a horizontal slide for ease of use
Spring-mounted drill for minimal force application
Carbide drills with different cutting angles for various measuring ranges
Measuring microscope with 50x magnification and 100-line scale for 1% resolution
Adjustable illumination settings to conserve battery life
Suitable for evaluating elliptical holes on curved specimens

Operation
The operation involves applying a contrast mark, positioning the instrument, drilling through the coating, and using the microscope to measure the scale marks. The measurement is calculated by multiplying the scale marks by a scale factor.

Included Accessories

Drill no. 5
Felt tip pen
Screwdriver
Rechargeable battery (9 V)
Charging unit (230 V, 50 Hz)
Carrying case
Operating instructions

Additional Information
Special applications, such as measuring individual layers in multi-layer systems and curved specimens, are detailed in the operating instructions. The instrument is designed for ease of use and precision in various coating measurement scenarios.

Catalog excerpts

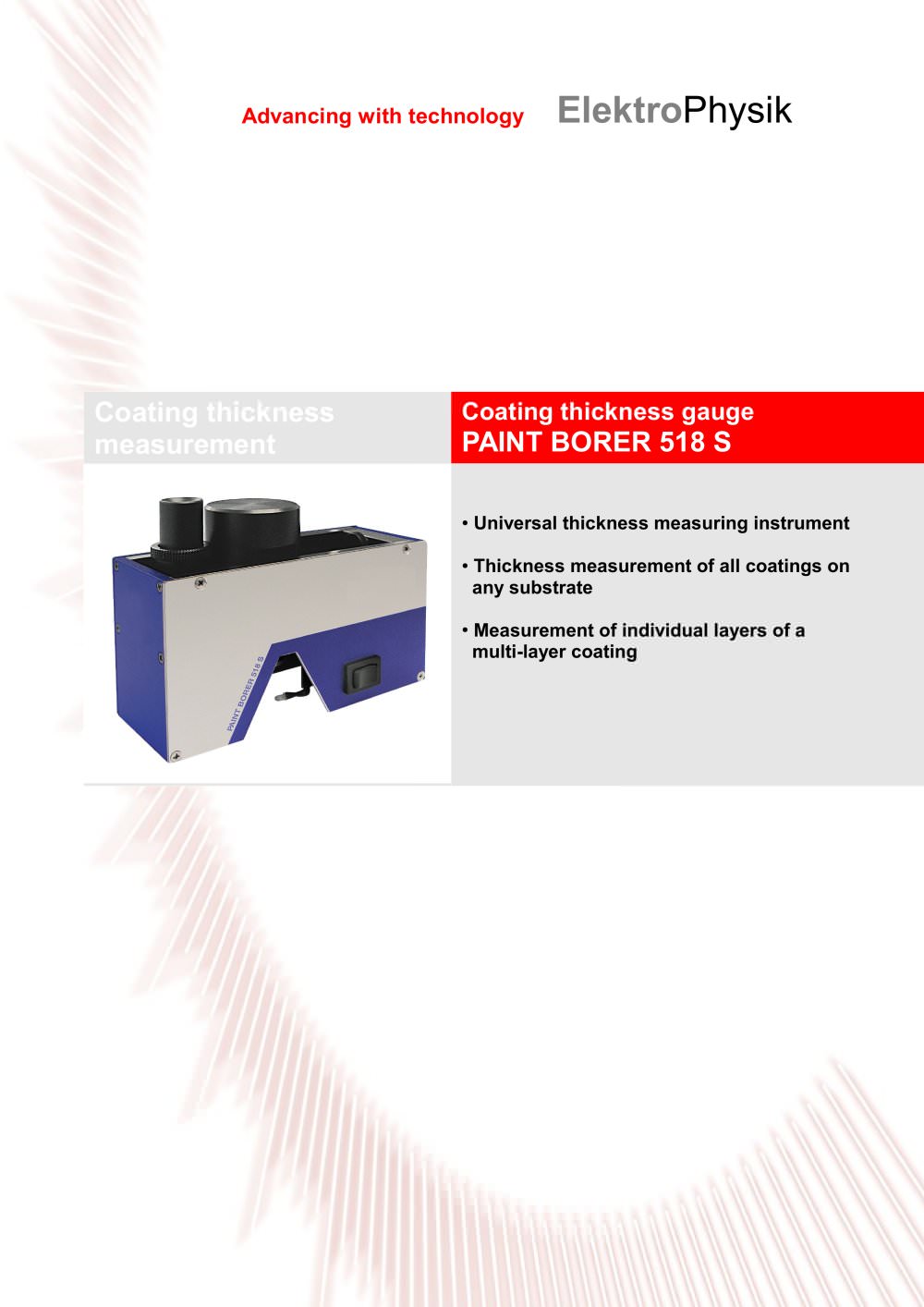

Coating thickness gauge PAINT BORER 518 S œ Universal thickness measuring instrument œ Thickness measurement of all coatings on any substrate œ Measurement of individual layers of a multi-layer coating Advancing with technology ElektroPhysik Coating thickness measurement

Open the catalog to page 1

ElektroPhysik Pasteurstr. 15 D-50735 Köln Tel.: (0221 )75204-0 Fax: (0221 )75204-67 www.elektrophysik.com [email protected] ElektroPhysik USA 778 West Algonquin Rd. Arlington Heights IL 60005 Phone: +1 847 437-6616 Fax: +1 847 437-0053 www.elektrophysik.com [email protected] ElektroPhysik Nederland Borgharenweg 140 6222 AA Maastricht Tel.: +31 (0)43/3520060 Fax: +31 (0)43/3631 168 www.elektrophysik.com [email protected] Thickness Measuring Instrument PAINT BORER 518 S PAINT BORER with specimen platform The measuring principle The measuring instrument Technical Data (Model 518...
