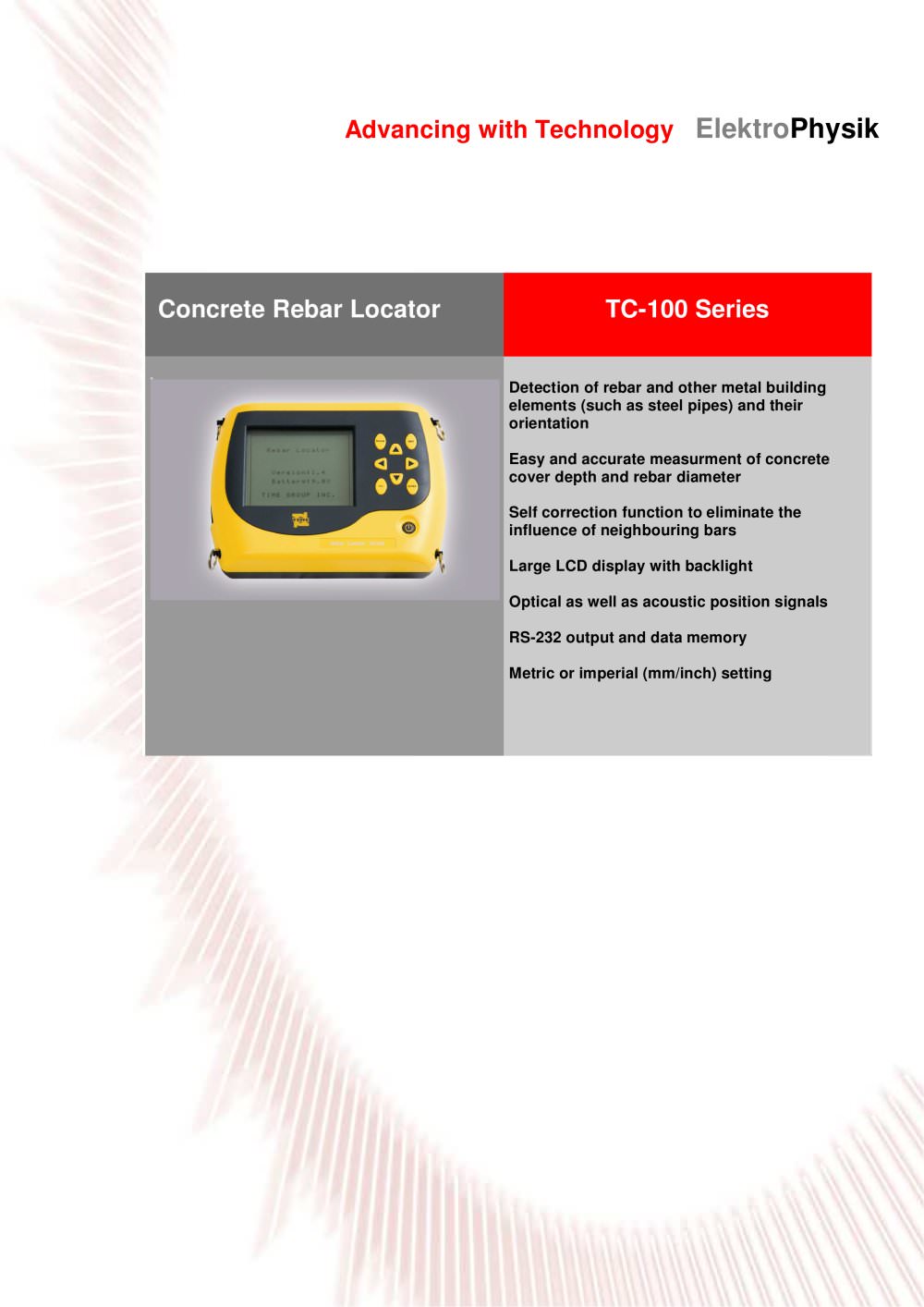

Advancing with Technology ElektroPhysik Concrete Rebar Locator TC-100 Series Detection of rebar and other metal building elements (such as steel pipes) and their orientation Easy and accurate measurment of concrete cover depth and rebar diameter Self correction function to eliminate the influence of neighbouring bars Large LCD display with backlight Optical as well as acoustic position signals RS-232 output and data memory Metric or imperial (mm/inch) setting

TC-100 / TC -110 The TC-100 / 110 series of compact, lightweight rebar detection systems offer the power of non-destructive pulse-induction technology for the detection and analysis of rebar positions and concrete thickness in concrete structures. The instruments are compact, accurate, solid and can stand the harshest environments. The gauge is easy to operate and does not require special skills. The systems detect reinforcement bars and mesh, to measure their cover depth and to determine the bar diameter. The TC-100 and TC-110 offer simply one of the most convenient ways to inspect your concrete...

Product variations • TC-100, standard unit (without probe cart) plus probe and standard accessories • TC-110, same as above plus standard supplied with probe cart, three scan mode, grid pattern, profile scan and large area scan direct display gridding and profile image of rebar Standard accessories: • Gauge with probe • Signal cables • Data analysis PC software • Batteries • User manual • Calibration certificate Technical Specification Covering layer thickness ranges: 6 to 90 mm 7 to 180 mm Rebar diameter measuring range: 6-50 mm Accuracy: ± 1 % to ± 4 % tolerance at the end of the range Real...
