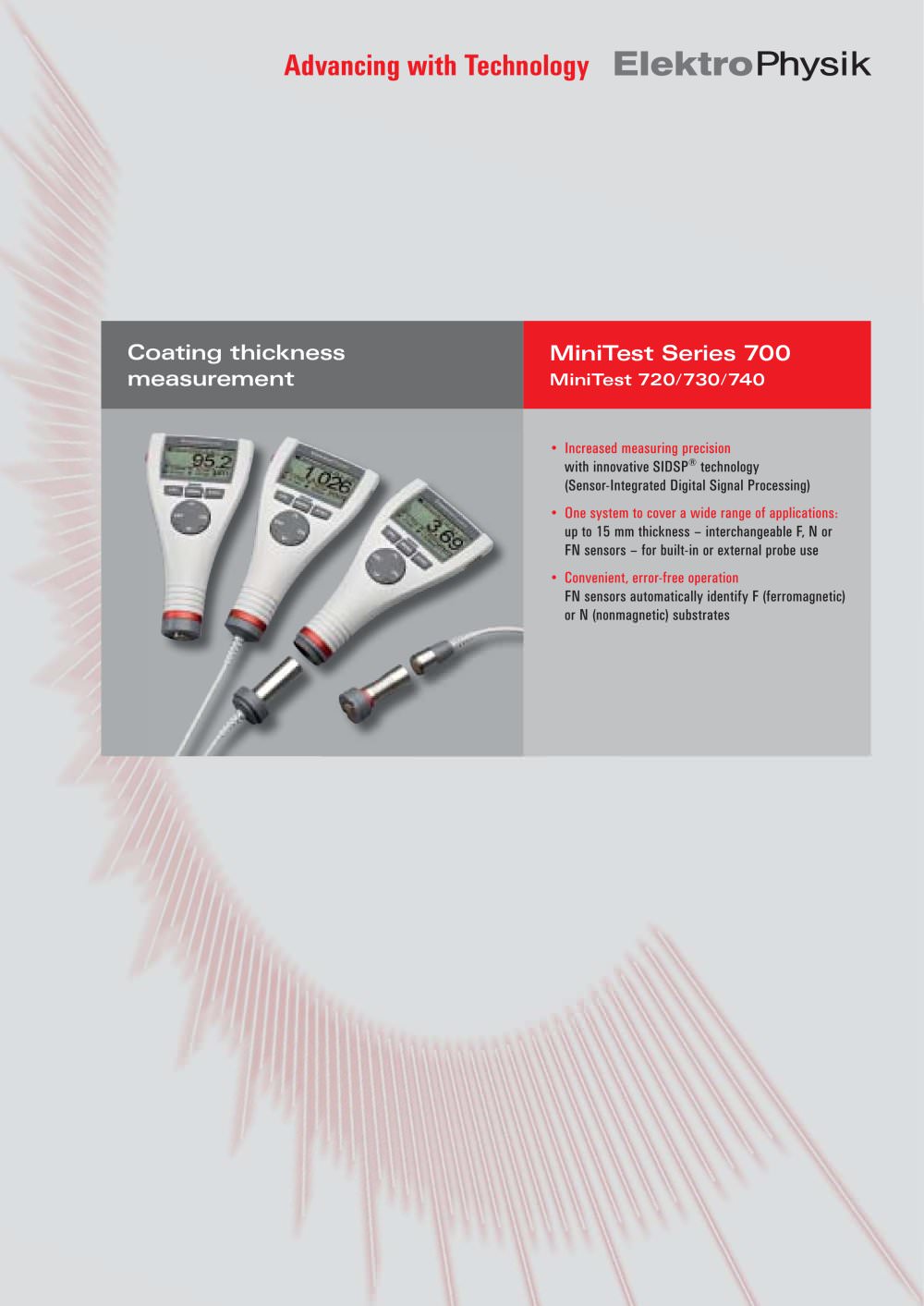

Advancing with Technology Coating thickness measurement MiniTest Series 700 MiniTest 720/730/740 • Increased measuring precision with innovative SIDSP® technology (Sensor-Integrated Digital Signal Processing) • One system to cover a wide range of applications: up to 15 mm thickness – interchangeable F, N or FN sensors – for built-in or external probe use • Convenient, error-free operation FN sensors automatically identify F (ferromagnetic) or N (nonmagnetic) substrates

SIDSP® technology – Brand new Worldwide Intelligent, digital Coating Thickness Sensors Analogue signal processing has served its time – digital signal processing is the future What is SIDSP®? SIDSP® is a world wide leading technology for coating thickness sensors developed by ElektroPhysik. With this new technology, ElektroPhysik has set another new benchmark for innovative coating thickness measurement. SIDSP® stands for Sensor-Integrated Digital Signal Processing – a technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement....

SIDSP® – High stability of measuring signals SIDSP® sensors’ characteristic curves feature high accuracy ElektroPhysik’s SIDSP® sensors achieve a reproducibility that has been unmatched so far. This can be substantiated by placing the sensor on the same measuring spot several times and you will obtain exactly the same result, each time – another proof for the high performance of SIDSP® sensors. During the manufacturing process, ElektroPhysik’s SIDSP® sensors go through a rigorous calibration procedure. Conventional analogue sensors are usually calibrated at only a few points on the characteristic...

SIDSP® sensors provide excellent adaptability SIDSP® eddy current sensors are applicable to a wide range of non-ferrous substrate materials with various conductivities such as copper, titanium, etc. without the need of recalibrating the gauge to the particular substrate. Need to take a few quick spot measurements? Just activate the quick mode and the sensor will adapt to your specific task setting. Need to achieve the highest possible accuracy of measurement? No problem, just select the high precision mode and the gauge will adapt to it. Whether your requirements are to take single readings or...

The MiniTest 700 Series with SIDSP® With the new MiniTest 700 product line, ElektroPhysik once again has strengthened its position as a leader in the global market of coating thickness measurement With the new SIDSP® F-sensors for measurement on steel or N-sensors for measurement on non-ferrous substrates you can take advantage of the benefits of increased accuracy and reproducibility. The new MiniTest 700 gauges are the solution to all your coating thickness problems where a reliable finish and perfect product appearance play a major role for long-term value and success, e.g. in the automotive...

Convenience and ease of use The MiniTest 700 is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. Designed for utmost flexibility for quality control and inspections, the sensor of the MiniTest 740 model can be easily converted from a built-in sensor into an external one. So even difficult to access areas can be reached without problems. The MiniTest 700 line is designed to meet all of your coating thickness testing requirements: Choose the MiniTest 720 if you prefer one hand operation with a built-in sensor. The model MiniTest...

MiniTest 700: Advantages at a Glance Correct readings with interference free measurement with precise evaluation through SIDSP® Extended field of application through exchangeable sensors to cover different ranges up to 15 mm (600 mils) thickness (with MiniTest 740) High flexibility of use through versatile sensors (the MiniTest 740 sensor can be changed from built-in to external sensor on a lead) Automatic substrate identification with FN sensors accelerates measurements and helps avoiding operating errors Efficient temperature compensation eliminates errors caused by changes in temperature High...

Technical Specification MiniTest 720 Sensor type: – built-in sensor – external sensor – convertible from external to built-in sensor Convertible sensors with measuring ranges up to 15 mm Automatic substrate identification with FN sensors Increased accuracy and reproducibility through sensor-integrated signal processing (SIDSP ®) High-accuracy sensor characteristics through up to 50 calibration points during the sensor manufacture Individual temperature compensation Number of memories Total memory capacity User-definable memory arrangement according to batches Batches include readings, a defined...
