Coating thickness measurement MiniTest 3100
8Pages

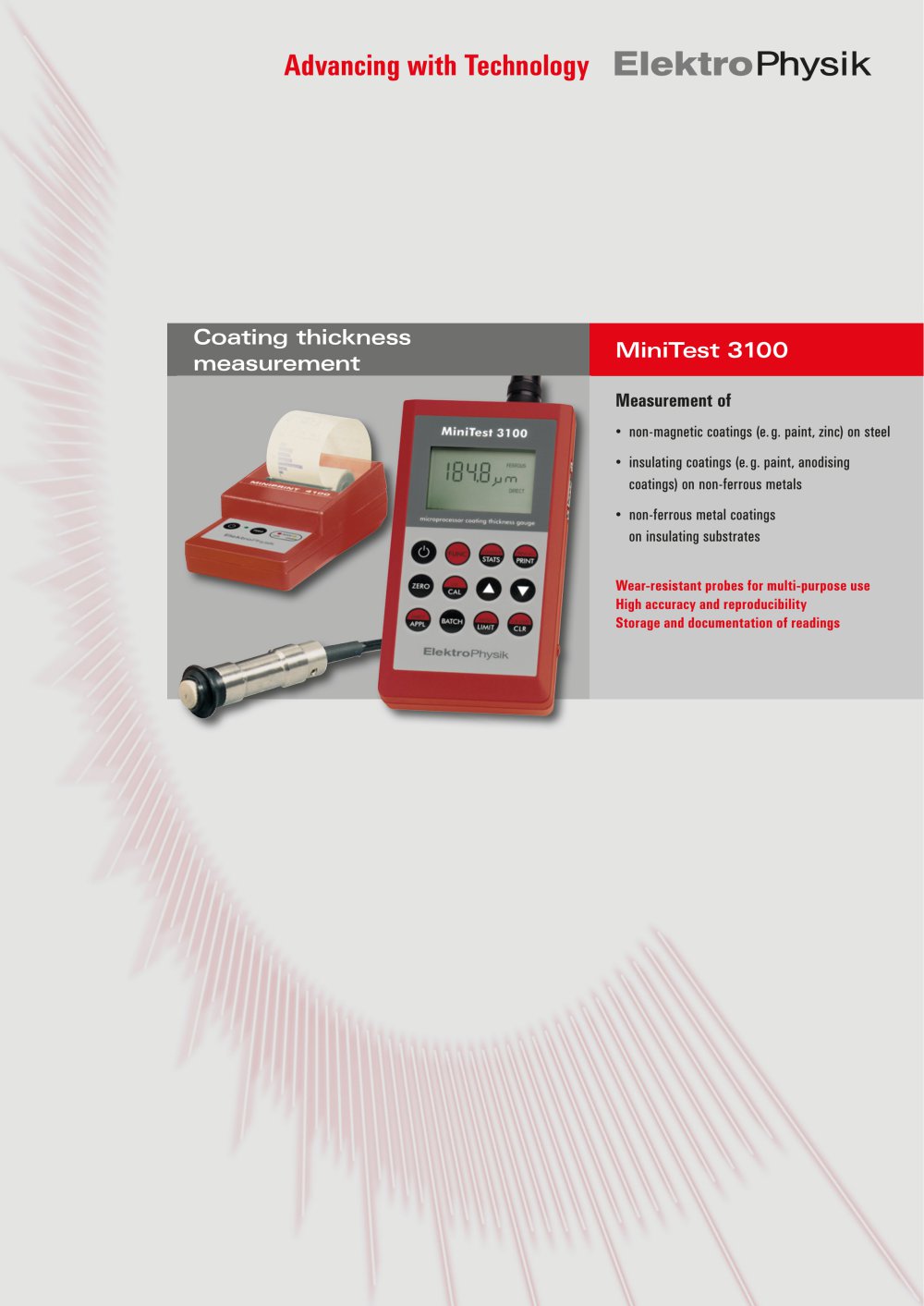

Advancing with Technology Coating thickness measurement MiniTest 3100 Measurement of • non-magnetic coatings (e. g. paint, zinc) on steel • insulating coatings (e. g. paint, anodising coatings) on non-ferrous metals • non-ferrous metal coatings on insulating substrates Wear-resistant probes for multi-purpose use High accuracy and reproducibility Storage and documentation of readi

Coating thickness measurement with MiniTest For more than 60 years now, ElektroPhysik has developed and produced an extensive range of precision measuring instruments for surface treatment. Being a pioneer in the field of non-destructive coating thickness measurement, ElektroPhysik in cooperation with national and international standardising bodies, research institutes and universities has successfully advanced the worldwide standardisation of coating thickness measurement. Numerous patents underline ElektroPhysik’s position as a leading manufacturer. The MiniTest gauge is a small universal...

MiniTest standard probes – special probes The probe is the core component of the coating thickness gauge. In order to meet the various requirements of our customers, probes for the most common applications are part of our range of products. For extraordinary measuring tasks, customer-made probes are available. ElektroPhysik probes are the result of a combination of modern production technologies as well as of a surface treatment know-how from more than 60 years. Intelligent probes Newly developed universal probes ElektroPhysik has developed a concept of “intelligent probes” allowing working...

Probe type Measuring range/ Minimum area for measurement non-magnetic coatings on steel and insulating coatings on non-ferrous metal, high resolution (0.1 μm) in the lower part of the measuring range powder coatings before baking on steel and non-ferrous metal non-magnetic coatings on steel and insulating coatings on non-ferrous metal, especially appropriate for measurements in tubes and pipes or objects which are difficult to access, high resolution (0.1 μm) in the lower part of the measuring range extremely thin metal, oxide or paint coatings on small steel objects high resolution (0.1...

Probe type Measuring range/ Minimum area for measurement 0 … 80 μm extremely thin chrome coatings on copper extremely thin insulating coatings, e. g. paint or anodising coatings on non-ferrous metal high resolution (0.1 μm) in the lower part of the measuring range thin insulating coatings, e. g. paint or anodising coatings on non-ferrous metal high resolution (0.1 μm) in the lower part of the measuring range thin insulating coatings, e. g. paint or anodising coatings on non-ferrous metal especially appropriate for measurements in tubes and pipes or objects which are difficult to access;...

Accessories MiniTest MiniPrint 4100 portable data printer, connected to the gauge without cable, for print-out of measuring values and statistics, with built-in accumulator battery and charger Rubber case with mounting device to protect against mechanical shocks on-site Twin case for gauge and printer PC evaluation program MSoft7000 basic edition for data transfer and MSOFT 41 for processing of measuring values, statistics and histograms NiCd accumulator battery with charger 230 V Precision support for measurements in production or on small parts Calibration foils with thicknesses ranging...

Technical data Guraranteed tolerance (of reading)1) Measuring range FN 1.6/90 Internal pipe probe Minium radius of curvature (convex/concave) Universal probes Magnetic induction Eddy current principle Internal pipe probe Minimum Minimum area for substrate thickness measurement only on flat surfaces Internal pipe probe Internal pipe probe only on flat surfaces for Cu coatings on insulating substrates Power supply: 1 x 9 V alkaline battery, AC adapter Ambient temperature: *Probes for high temperatures up to 350 °C Battery life: 10,000 measurements Gauge: 0...50 °C; Probe: –10 °C . ..70 °C,...

Features MiniTest Memory capacity Number of application memories Number of batches for each application memory Number of batches with individual value memories Total memory capacity for individual readings Statistics From single values: −, σ, kvar, n, max., min. x −, σ, kvar, n, max., min., CP, CPK From single values: x Block statistics: =, σ, kvar, n, max., min. x Block statistics: =, σ, kvar, n, max., min., CP, CPK x From all subgroups (BATCH) in the same application (APPL) Print values and statistics separately to APPL-BATCH groups Display and print-out of date and time at the time of...
