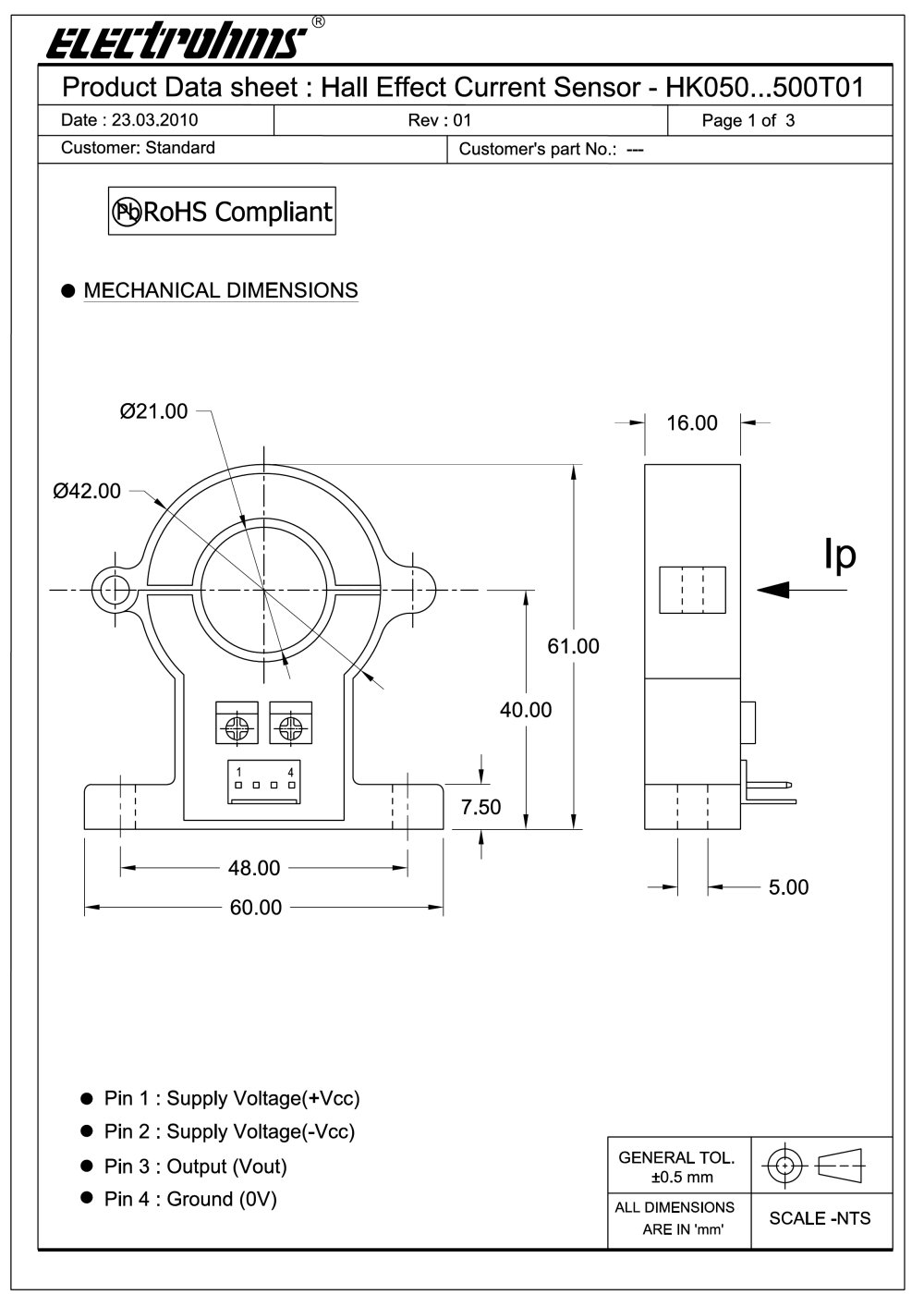

kLkLlrultim Product Data sheet : Hall Effect Current Sensor - HK050...500T01 Date: 23.03.2010 Customer: Standard Rev : 01 Customer's part No.: Page 1 of 3 RoHS Compilant MECHANICAL DIMENSIONS 021.00 042.00 16.00 61.00 -©- -©- 40.00 1 4 □ □ □ □ "i-r 7.50 1_L j_L 48.00 60.00 A 5.00 Pin 1 : Supply Voltage(+Vcc) Pin 2 : Supply Voltage(-Vcc)__ Pin3:Output(Vout) GEN±EoTmm°L Pin 4 : Ground (0V) all dimensions ADC1M, , . SCALE-NTS ARE IN "mm'

Product Data sheet : Hall Effect Current Sensor - HK050...500T01 Page 2 of 3 APPLICATION : Used for measurement of electric current, AC, DC, Pulsed in electrical & electronic equipment. FEATURES : Open loop current sensor. Օ Voltage output. Flange Mountable. Օ Split core type CONNECTION DIAGRAM 1 Q 2Q 3Q 4Q lv+ Rb INPUT & OUTPUT CHARACTERISTICS + Vout A iP + 4Volts - Ipn /\ 0 + Ipn - 4Volts 1 ■+lp Vout + lp Indicates primary current flowing in the direction of the arrow

Product Data sheet : Hall Effect Current Sensor - HK050...500T01 Page 3 of 3 PRIMARY PRIMARY PRODUCT NOMINAL CURRENT MEASURING RANGE rODE Ion (A)__IPJA)__CODE _50__± 100__HK050T01 _100__±200__HK100T01 _200__±400__HK200T01 _300__±600__HK300T01 _400__±800__HK400T01 500 ± 1000 HK500T01 SPECIFICATIONS @ 25° C PARAMETERS VALUES UNITS Burden Rթsistance (Rb) 10000 (min.) Q Voltage output @ Ipn = 0 (Vout) ±25.0 mV Voltage output @ Ipn ±4.0±1% V Supply Voltage (V+) ± 12 to 15 V Current consumption @+15V(lc) 25.0 mA Accuracy ± 1.0 % Linearity < 1.0 % Temprature coefficient of Vout ± 1.0 mvrc Response time...
