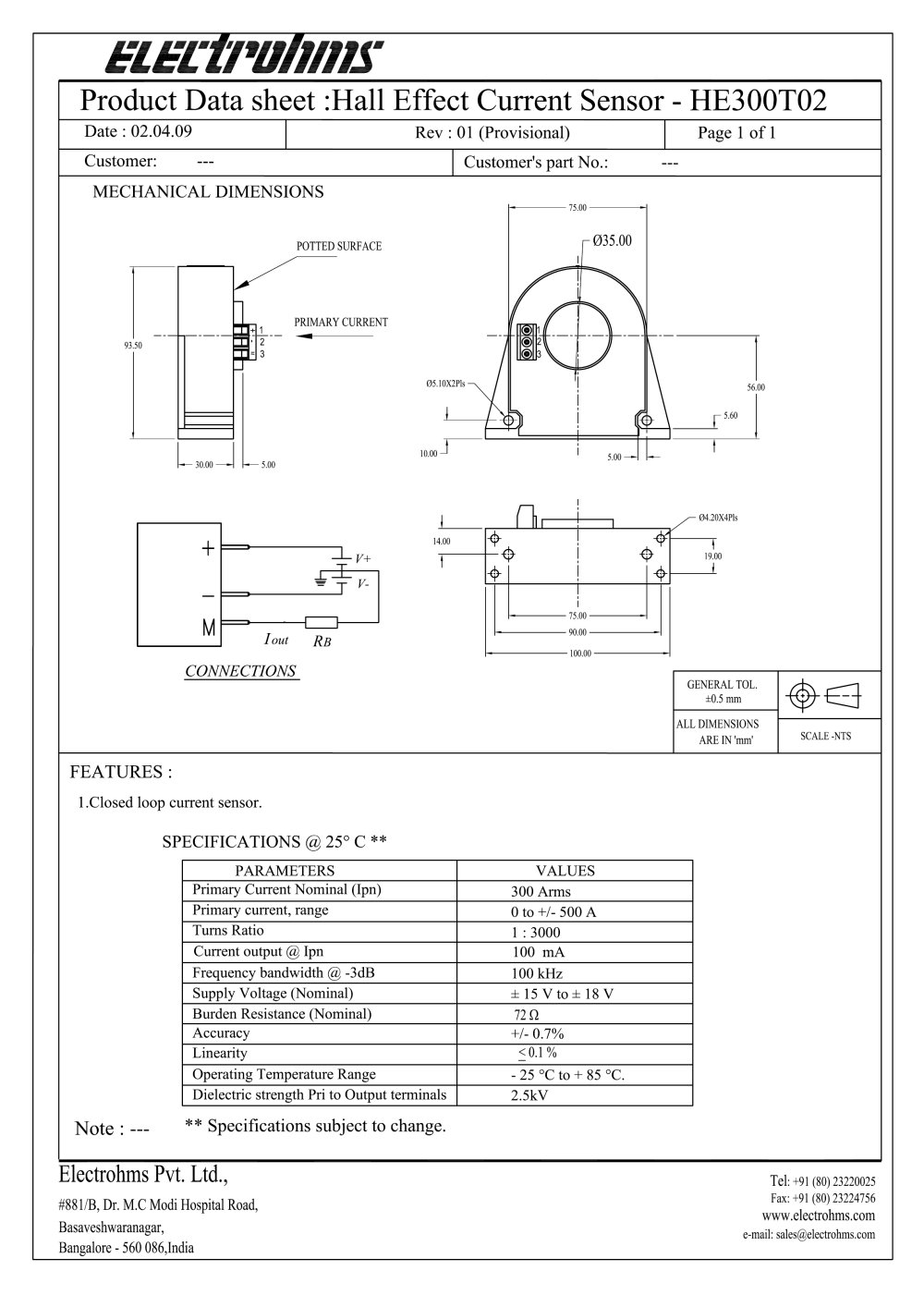

b'Lk'Llruhim Product Data sheet :Hall Effect Current Sensor - HE300T02 Date : 02.04.09 Customer: MECHANICAL DIMENSIONS Rev : 01 (Provisional) Customer's part No. Page 1 of1 POTTED SURFACE -035.00 PRIMARY CURRENT 56.00 10.00 ח 30.001 1ח5.00 + ■v+ ■A ~7 19.00 7±T M -c - 75.00 - - 90.00 - -100.00 - Iout Rb CONNECTIONS GENERAL TOL. ±0.5 mm ALL DIMENSIONS ARE IN'mm' 3 SCALE-NTS FEATURES: l.Closed loop current sensor. SPECIFICATIONS @ 25° C ** PARAMETERS Primary Current Nominal (Ipn) Primary current, range Turns Ratio Current output @ Ipn Frequency bandwidth @ -3dB Supply Voltage (Nominal) Burden R)sistance (Nominal) Accuracy Linearity Operating Temprature Range Dielectric strength Pri to Output terminais VALUES 300 Arms_ 0 to +/- 500 A 1 :3000_ 100 mA_ 100 kHz_ ±15Vto±18V 72 n_ +/- 0.7%_ <0.1% - 25 °C to + 85 °C. 2.5kV Note Spcifications subject to change. Electrohms Pvt. Ltd., TeL +9i («0)23220025 #881/B, Dr. M.C Modi Hospital Road, Fax: ^ (80)23224756 www.electrohms.com Basaveshwaranagar, ^ sales@electrohms.com Bangalore - 560 086,India
