Product catalog summary

Cable Sets Overview
ElectroCraft provides a range of cable assemblies for the Industrial Motion Control market, categorized into Standard flexible cables for static applications, Flex cables for continuous rolling flexing, and Food-grade flexible cables for food-related environments.

General Specifications
Power cables range from 16 AWG to 6 AWG and are compatible with popular motor/drive combinations. Cable sets are available in single-stage, two-stage, and three-stage configurations, with options for bulkhead-mounting or in-line connectors.

Standard Cable Type

Bend radius: 10x cable diameter for power cables, 12.5x for feedback cables.
Temperature range: 0 to 105°C for power cables, 0 to 90°C for feedback cables.
Shielding: 85% spiral wrap.
Jacket material: TPE, resistant to fuels, oils, acids, and caustic cleaners.
Not designed for repetitive flexing.

Continuous Flex Cables

Similar bend radius and temperature range as standard cables.
Flex life exceeds 5 million cycles.
Jacket material: TPE, with similar resistance properties.

Food-Grade Continuous Flex Cables

Similar bend radius and temperature range as other types, but with a PVC jacket.
Flex life exceeds 5 million cycles.

Brake and Feedback Cables
Various configurations are available for different motor series, including static, flex, and food-grade options. Compatibility with specific drive systems is detailed, with catalog numbers provided for ordering.

Power Cables
Available for MP-Series Low Inertia Motors, with specifications for static, HiFlex, and food-grade flex options. Cable sizes range from 16 AWG to 6 AWG, with specific catalog numbers for each configuration.

Note
Specifications are subject to change due to continuous improvement.

Specifications and Product Overview
The document provides detailed specifications for various ElectroCraft cable sets used in industrial motion control systems. It includes model numbers such as 2094-AM01, 2094-AM02, and 2098-xxx series, and highlights the flexibility and customization options available for these cable sets.

Procedures and Cable Selection
The document outlines the procedure for selecting the appropriate cable set. Users are instructed to enter data such as axis title, motor model number, drive model number, and cable set style code. The selection process involves choosing between single, two, or three-section styles, and specifying connector styles and cable types.

Standards and Recommendations
Recommendations are provided for selecting cable types based on application needs, such as non-flex, high-flex, or food-grade high-flex cables. The document emphasizes the importance of adhering to specified cable lengths and connector styles to ensure compatibility and performance.

Customization and Additional Data
ElectroCraft offers customization services for cable sets, allowing for non-standard lengths, high-flex cables, and intermediate connectors. Customers can specify custom requirements in the notes section of the order form.

Global Presence and Contact Information
ElectroCraft has a global distribution network with presence in countries such as the USA, Germany, China, and more. Contact information for ElectroCraft Ltd. in the UK is provided, including phone numbers and email addresses for inquiries.

Catalog excerpts

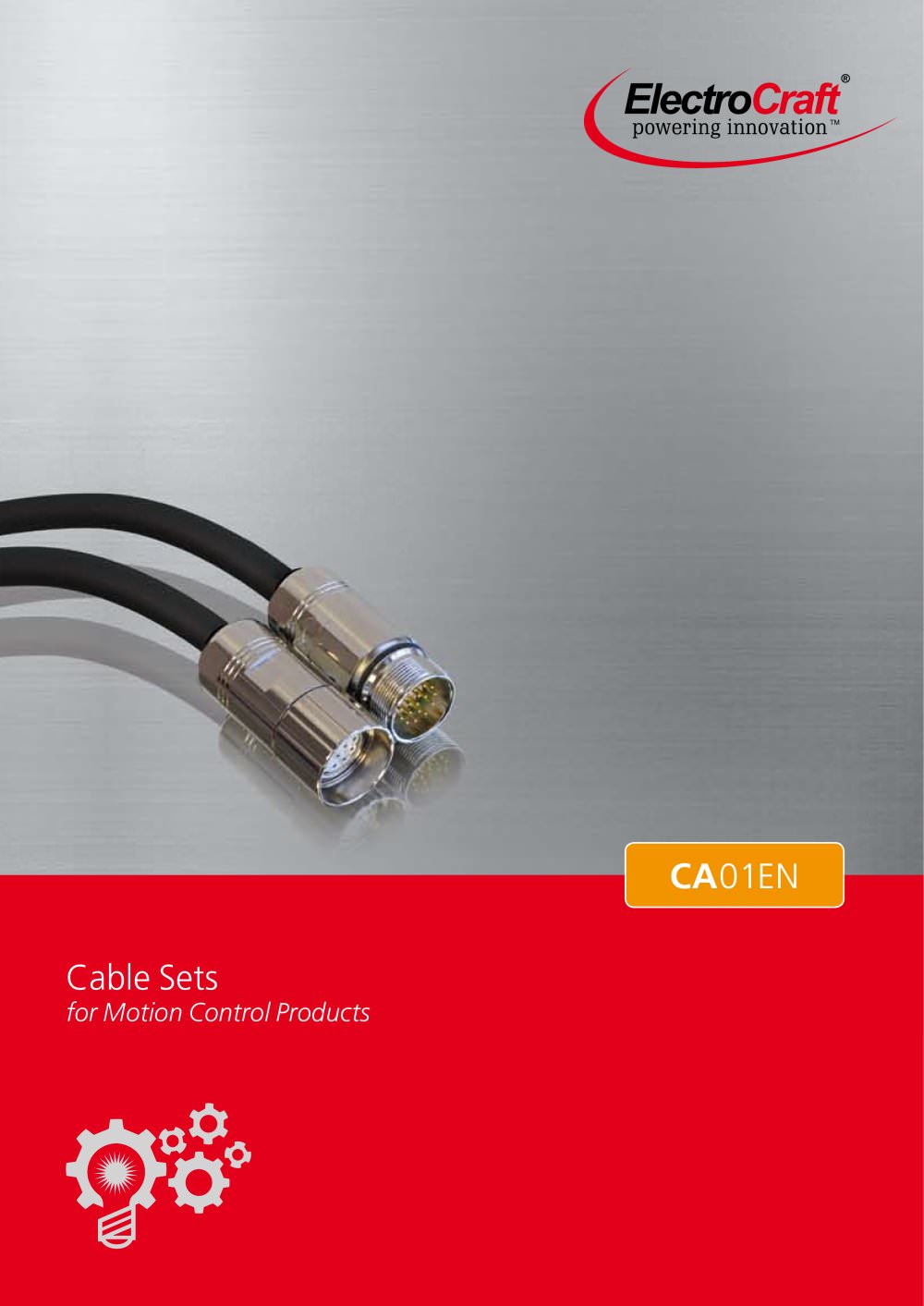

CA 01EN Cable Sets > for Motion Control Products 1 size="-1">

Open the catalog to page 1

A range of cable assemblies is available form ElectroCraft for the Industrial Motion Control market, available in three types of cable 1. Standard flexible cable for use in static applications. 2. Flex for use in applications where continuous rolling flexing occurs. 3. Food-grade flexible food-grade cable for use in applications where continuous rolling flexing occurs. >

Open the catalog to page 2

Power cables in 16 AWG/1.5mm > 2 , 14 AWG/2.5mm > 2 , 10 AWG/6mm > 2 , 8AWG/10mm > 2 and 6AWG/16mm > 2 sizes, and feedback and brake cables for popular motor/drive combinations from the leading manufacturers of industrial drive systems. > Single-stage sets of the above for direct connection from motor to drive׷ Two-stage sets of the above, i.e. with a single intermediate connector between drive and motor Three-stage sets of the above, i.e. with two intermediate connectors between drive and motor. The intermediate connectors may be bulkhead-mounting or in-line connectors. > General specification...

Open the catalog to page 3

2. Continuous flex cables Bend radius - Power Cables 3. Food-grade continuous flex cables 1. Standard cable type׷ Bend radius - Power Cables Bend radius - Power Cables 10 > * cable diameter for one-time bending. 10 > * cable diameter for one-time bending. 10 > * cable diameter for one-time bending. ׷ Bend radius - Feedback Cables Bend radius - Feedback Cables ׷ Bend radius - Feedback Cables 12.5 > * cable diameter for one-time bending. 12.5 > * cable diameter for one-time bending. 12.5 > * cable diameter for one-time bending. Flex life Not designed for repetitive flexing. ׷ Flex life greater...

Open the catalog to page 4

SeriesDescription Page Rockwell Automation Brake cables 6 MPLRockwell Automation MP-Series Low Inertia Motors 8 MPFRockwell Automation MP-Series Food-Grade Motors 16 MPGRockwell Automation MP-Series Integrated Rotary Actuators 20 MPSRockwell Automation MP-Series Stainless Steel Motors 24 MPASRockwell Automation MP-Series Integrated Linear Stages 30 FRockwell Automation F-Series Medium Inertia Motors 34 HRockwell Automation H-Series Low Inertia Motors 36 TL & TLYRockwell Automation TL & TLY-Series Motors 38 TLYRockwell Automation TLY-Series Motors 40 TLRockwell Automation TL-Series Motors 42 YRockwell...

Open the catalog to page 5

DRIVE TO MOTORDRIVE-END TRANSITION MP-Series (230 and 460V) Low Inertia MotorsStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake CableStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake Cable All MPL-Axxxx and MPL-Bxxxx motors(that require a separate brake cable)44-0408-xxxMN/A44-0556-xxxMConsult sales INTERMEDIATEMOTOR END TRANSITION MP-Series (230 and 460V) Low Inertia MotorsStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake CableStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake Cable All MPL-Axxxx and...

Open the catalog to page 6

DRIVE TO MOTORDRIVE-END TRANSITION F-Series Medium Inertia 230 volt motorsStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake CableStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake Cable All F-Series motors(that require a brake cable)44-0409-xxxMN/A44-0556-xxxMConsult sales INTERMEDIATEMOTOR END TRANSITION F-Series Medium Inertia 230 volt motorsStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake CableStatic Motor Brake CableFlex Motor Brake CableFood-grade Flex Motor Brake Cable All F-Series motors(that require a brake cable)44-0560-xxxMConsult...

Open the catalog to page 7

MOTOR END TRANSITION MP-Series (230V) Stainless-Steel MotorsDriveCablesizeStatic Motor Power CableHiFlex Motor Power Cable Food-grade Flex Motor Power Cable MPS-A330P without brake2094-ACxx-MPxx or 2094 AMxx16 AWG44-0553-xxxM2098-xxx-xxxMPS-A330P with brake2094-ACxx-MPxx or 2094 AMxx2098-xxx-xxxMPS-A4540F without brake2094-ACxx-MPxx or 2094 AMxx2098-xxx-xxxMPS-A4540F with brake2094-ACxx-MPxx or 2094 AMxx2098-xxx-xxxMPS-B330P without brake2094-BCxx-MPxx or 2094 BMxx16 AWG44-0553-xxxM2098-xxx-HVxxxMPS-B330P with brake2094-BCxx-MPxx or 2094 BMxx2098-xxx-HVxxxMPS-B4540F without brake2094-BCxx-MPxx...

Open the catalog to page 29

DRIVE TO MOTOR DriveCablesizeStatic Motor Power CableHiFlex Motor Power Cable Food-grade Flex Motor Power Cable F-40302098-xxx-02014 AWG44-0372-xxxN/A2094-AC09-M02S or 2094-M02-SF-40502098-xxx-020 or 2098-xxx-030 or 2098-0752094-AC16-M03S or 2094-M03-SF-40752098-xxx-0302094-AC16-M03S or 2094-M03-SF-61002098-xxx-030 or 2098-xxx-07510 AWG44-0373-xxxN/A2094-AC16-M03S or 2094-M03-SF-62002098-xxx-030 or 2098-xxx-0752094-AC32-M05S or 2094-M05-SF-63002098-xxx-075 or 2098-xxx-1508 AWG44-0374-xxxN/A2094-AC32-M03S or 2094-M05-S Note: Due to continuous improvement, specifications are subject to change.F-Series...

Open the catalog to page 35

DRIVE TO MOTOR DriveCablesizeStatic Motor Power CableHiFlex Motor Power Cable Food-grade Flex Motor Power Cable H-30162098-xxx-020 or 2098-xxx-010 or 2098-00516 AWG44-0371-xxxN/A2094-AC09-M02S or 2094-M02-SH-40302098-xxx-02014 AWG44-0372-xxxN/A2094-AC09-M02S or 2094-M02-SH-40502098-xxx-020 or 2098-xxx-030 or 2098-0752094-AC16-M03S or 2094-M03-SH-40752098-xxx-0302094-AC16-M03S or 2094-M03-SH-61002098-xxx-030 or 2098-xxx-07510 AWG44-0373-xxxN/A2094-AC16-M03S or 2094-M03-SH-62002098-xxx-030 or 2098-xxx-0752094-AC32-M05S or 2094-M05-SH-63002098-xxx-075 or 2098-xxx-1508 AWG44-0374-xxxN/A2094-AC32-M03S...

Open the catalog to page 37

PLEASE PHOTOCOPY THE FORM ON THE FOLLOWING SIDES AND USE IT TO SPECIFY THE CABLE SET > ElectroCraft manufacture custom cable sets to connect contain a minimum of two cables (power and feedback) all current motion Control systems. This service provi- but may contain up to nine cables if a brake motor is des alternatives to the standard cable offering where specified with a 3-section cable set style. the customer requires non-standard lengths, high-flex cables and /or intermediate connectors. A cable set will Enter data as per the following: Axis TitleOptionally enter an axis name or description...

Open the catalog to page 54

Note: Ligth blue text indicates typical examples Enter an identification for this cable set, if you are ordering serveral sets. > Enter full model for motor e.g. Rockwell Automation MPL-B320P-MJ22AA > Enter full model number for drive e.g. Rockwell Automation 2094-AM05-S > ABC Drive end cable set form Cable types NNon-flex (normal flexible cable static applications)THigh-flex (extra-flexible cable for continuously moving installations)FFood-grade high-flex cable SPower to match drive, feedback to match drive (straight connection)APower to match drive, feedback to match drive (angled connection)LPower...
