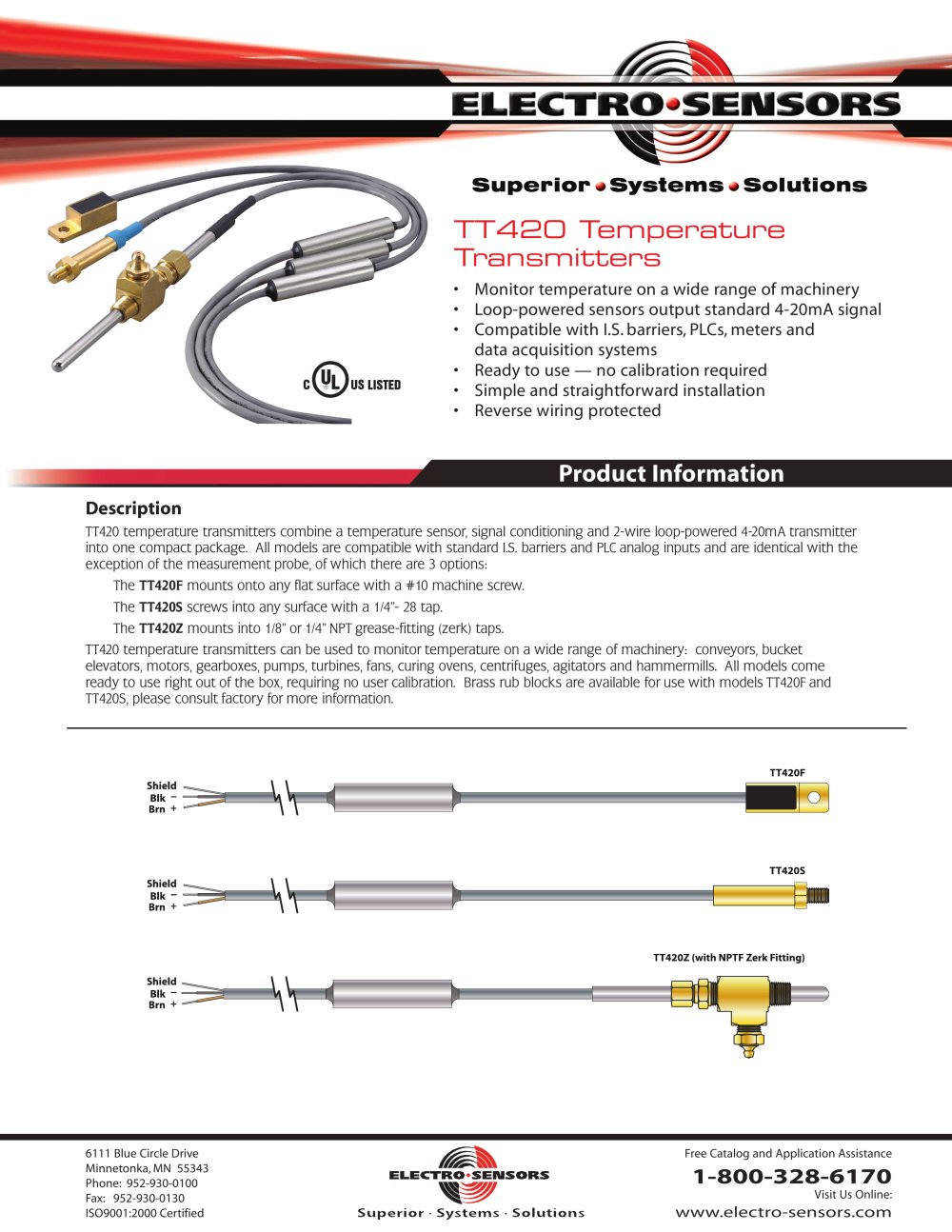

Superior • Systems • Solutions • Monitor temperature on a wide range of machinery • Loop-powered sensors output standard 4-20mA signal • Compatible with I.S. barriers, PLCs, meters and data acquisition systems • Ready to use — no calibration required • Simple and straightforward installation • Reverse wiring protected Product Information TT420 temperature transmitters combine a temperature sensor, signal conditioning and 2-wire loop-powered 4-20mA transmitter into one compact package. All models are compatible with standard I.S. barriers and PLC analog inputs and are identical with the exception of the measurement probe, of which there are 3 options: The TT420F mounts onto any flat surface with a #10 machine screw. The TT420S screws into any surface with a 1/4"- 28 tap. The TT420Z mounts into 1/8" or 1/4" NPT grease-fitting (zerk) taps. TT420 temperature transmitters can be used to monitor temperature on a wide range of machinery: conveyors, bucket elevators, motors, gearboxes, pumps, turbines, fans, curing ovens, centrifuges, agitators and hammermills. All models come ready to use right out of the box, requiring no user calibration. Brass rub blocks are available for use with models TT420F and TT420S, please consult factory for more information. 6111 Blue Circle Drive Superior • Systems • Solutions Free Catalog and Application Assistance

TT420 Temperature Transmitters Dimensions • TT420 Temperature Transmitters Specifications • TT420 Temperature Transmitters Models TT420Z 6” Probe (No zerk fitting) . . . . . . . . . . 800-001500 TT420Z 6” Probe (w/1/8” NPTF zerk fitting) . . 800-001501 TT420Z 4” Probe (w/1/8” NPTF zerk fitting) . . 800-001504 TT420Z 6” Probe (w/1/4” NPTF zerk fitting) . . 800-001502 TT420Z 4” Probe (w/1/4” NPTF zerk fitting) . . 800-001505 TT420F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800-001510 TT420S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800-001520...
