High voltage generator SC 04 B

High voltage generator SC 04 B

High voltage generator SC 04 B

Product catalog summary
Overview: The SC 04 B high voltage generator is designed for capacitive ionising systems within the ELCOWA range. It is an advanced model following the SC 02 B generator, offering high performance and robust features, including optional stainless steel construction and autotest capabilities.
Specifications:
  • Dimensions: 160 x 250 x 96 mm
  • Weight: 7.2 kg
  • Supply Voltage: 230 V / 50 Hz / 60 Hz
  • Nominal Output Voltage: 5 kV
  • Output Voltage Under Load: 7 kV
  • Output Amperage: 7 mA
  • Consumption: 35 VA
  • Safety Fuse: 0.5 AT
  • Protection Index: IP 20
Features:
  • Available in blue lacquered or stainless steel sheet metal box
  • 2 or 4 high voltage outputs
  • Autotest system with indicator light
  • Built-in relay for sound or light signal control
  • Quick and easy electrical connections with special ELCOWA connectors
Options:
  • 4 high voltage outputs by connectors
  • Autotest with indicator light and dry contact
  • Various supply voltages: 24/120 or 400 V AC
  • Brushed stainless steel box
  • Protection index: IP 65 with SC 04B SIB
Usage Limitations:
  • Not suitable for inflammable or explosive environments
  • Maximum distance from active part: 7 meters
  • Maximum shielded cable length: 10 meters
Recommended Electrodes: ECA 88B, ECA 88BS, TISP-N/TIS-N, ECOFLOW, ECOVAC 2, ECOVAC 4
Safety Note: Ensure proper earthing of the electrode and generator for optimal operation.
See more

Catalog excerpts

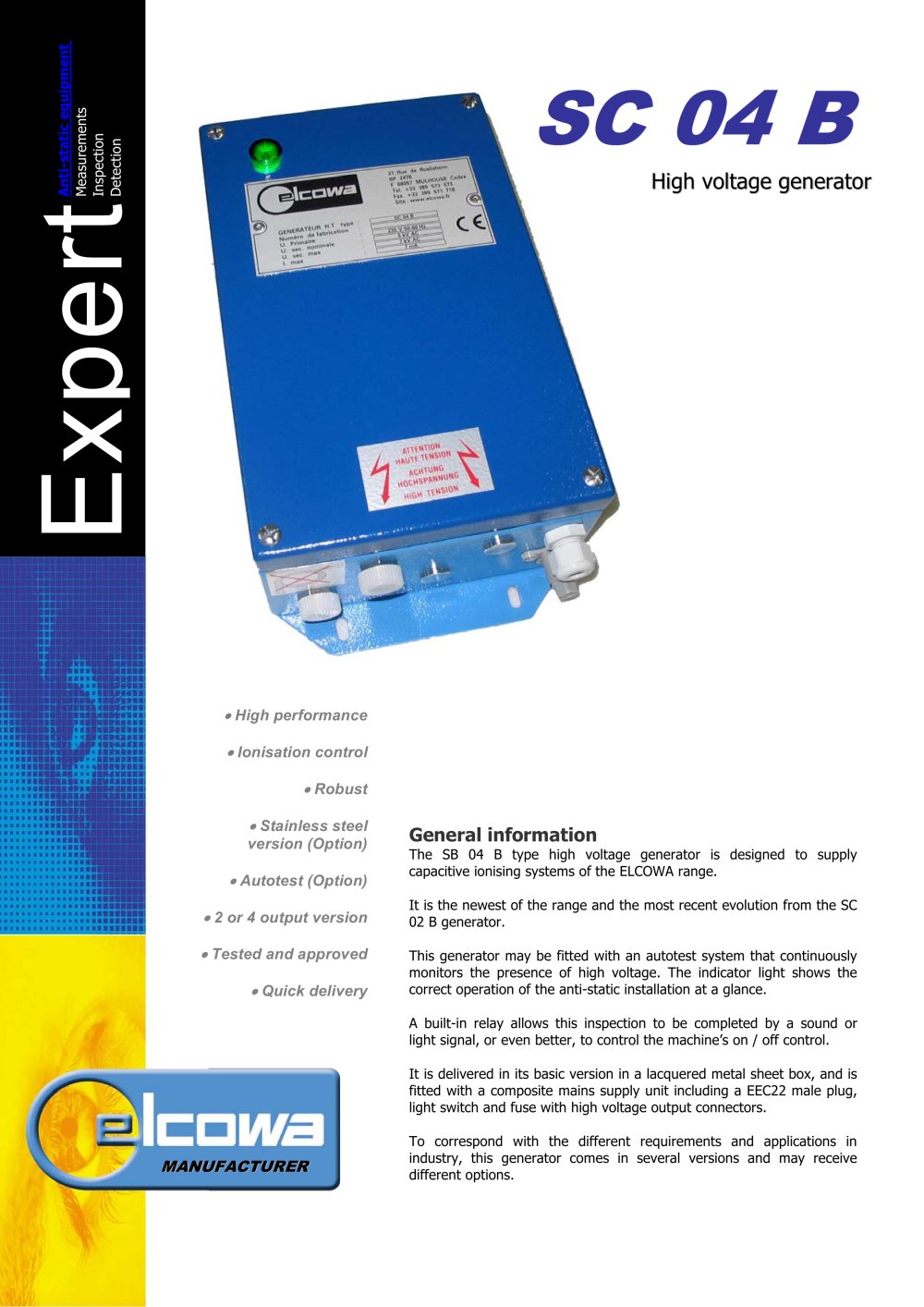

High voltage generator SC 04 B-1

Measurements Inspection Detection Anti-static equipment High performance Ionisation control Robust Stainless steel version (Option) > The SB 04 B type high voltage generator is designed to supply capacitive ionising systems of the ELCOWA range. It is the newest of the range and the most recent evolution from the SC 02 B generator. This generator may be fitted with an autotest system that continuously monitors the presence of high voltage. The indicator light shows the correct operation of the anti-static installation at a glance. A built-in relay allows this inspection to be completed by a sound or light signal, or even better, to control the machines on / off control. It is delivered in its basic version in a lacquered metal sheet box, and is fitted with a composite mains supply unit including a EEC22 male plug, light switch and fuse with high voltage output connectors. To correspond with the different requirements and applications in industry, this generator comes in several versions and may receive different options. Autotest (Option) 2 or 4 output version Tested and approved Quick delivery MMA A NNUUF F A A C C TTUUR R E E R R >

 Open the catalog to page 1
