Short-form Catalogue (KR10-10)

Product catalog summary
Overview
ELCIS ENCODER, formed from the merger of ELCIS and SICOD, specializes in rotary and linear transducers. The company offers a wide range of encoders, known for their quality and robustness, distributed globally through numerous sales and service centers.
Product Lines
  • Absolute Series Encoders: These encoders are noted for their high reliability and low cost. They offer various models with different dimensions, shaft sizes, and resolutions, suitable for diverse applications.
  • Incremental Series Encoders: Known for their reliable performance and affordability, these encoders come in multiple models with varying dimensions, shaft sizes, and maximum pulse rates.
  • Analogic Potentiometers: These include a multi-turn potentiometer with hybrid winding and an analog converter, offering high reliability at a low cost. Custom versions are available upon request.
  • Cable Transducers: Suitable for applications with space, installation, or cost constraints, these transducers provide infinite resolution and are available in various stroke lengths.
Specifications and Features
  • Encoders are available in various sizes and protection ratings (IP00 to IP65).
  • Power supply options range from 5V to 30V, with different electronic configurations like NPN, line-driver, and push-pull.
  • Operating temperature ranges are typically from -25°C to 85°C.
  • Maximum frequencies and resolutions vary across models, catering to different industrial needs.
Distribution and Support
ELCIS ENCODER products are distributed worldwide, with support centers in Europe, USA, South America, Asia, Africa, and Australia, ensuring effective product distribution and customer support.
See more

Catalog excerpts

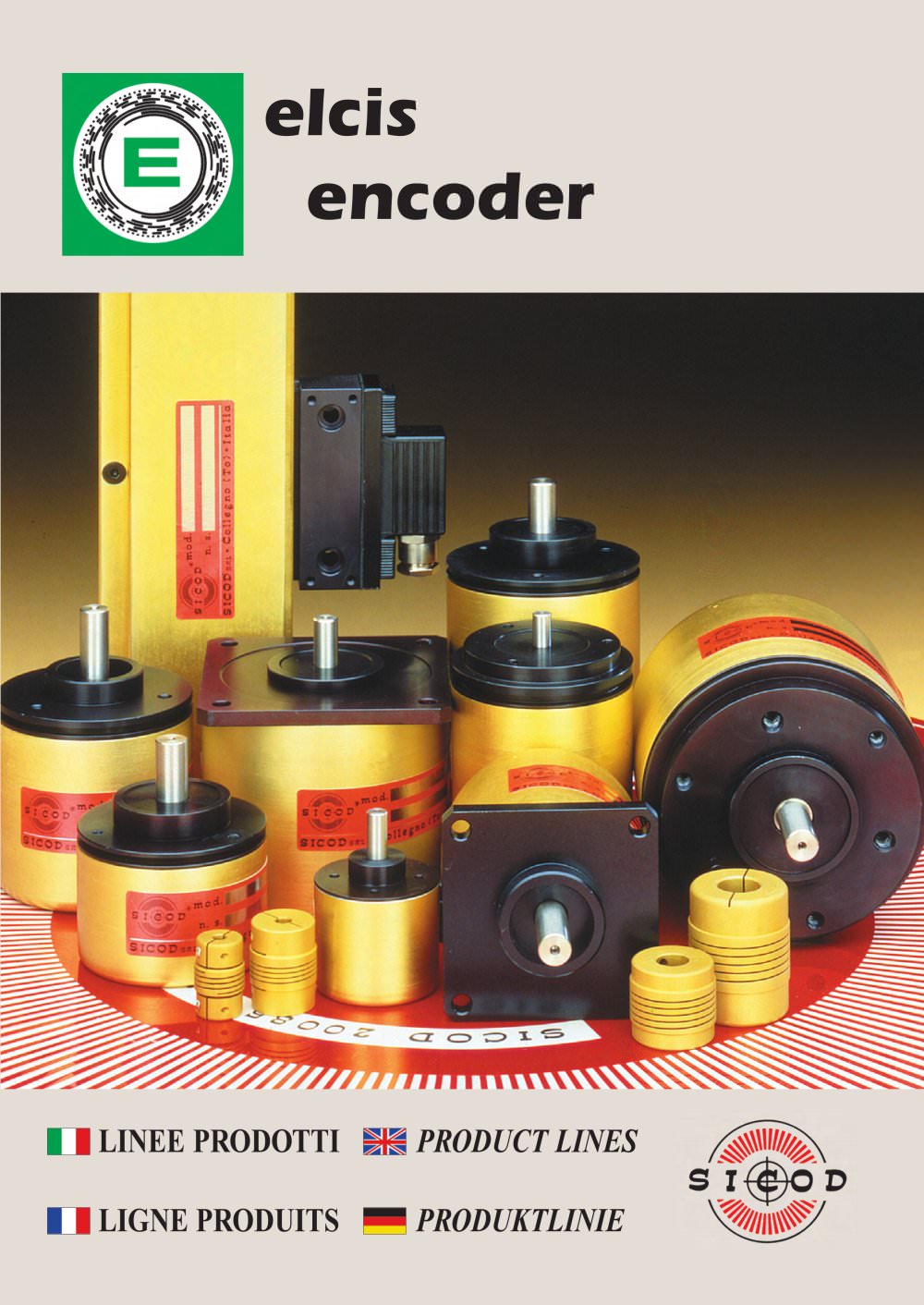

Short-form Catalogue (KR10-10)-1

elcis encoder LINEE PRODOTTI PRODUCT LINES LIGNE PRODUITS PRODUKTLINIE

 Open the catalog to page 1
Short-form Catalogue (KR10-10)-2

PRECISIONE E QUALITA’ Essere specialisti in un ben specifico settore industriale significa conoscere i reali problemi dei Clienti e produrre apparecchi atti a soddisfare le più difficili esigenze. L’uso degli encoder nell’ingegneria meccanica si è espanso di pari passo con i sistemi elettronici di controllo. La ELCIS ENCODER, nata dalla fusione della ELCIS e della SICOD, è specialista nel settore dei trasduttori di posizione sia rotativi che lineari. Il know-how tecnologico acquisito fin dal 1974 nel campo degli encoder permette di presentare una gamma estremamente vasta e completa di questi...

 Open the catalog to page 2
Short-form Catalogue (KR10-10)-3

22BL 25BL I .. SERIE INCREMENTALE .. INCREMENTAL SERIES .. SERIE INCREMENTAUX .. SERIE INKREMENTALE Gli encoder della serie incrementale SICOD si distinguono per le elevate caratteristiche abbinate ad un prezzo eccezionalmente basso. Contattateci per ulteriori informazioni. Dimensioni / Dimensions / Dimensions / Abmessunge ø 22x14 – IP00 27x40x14 – IP00 Ø Albero / Ø Shaft / Ø Axe / Ø Welle ø 2÷4 ø 4÷8 SICOD incremental series encoders distinguish themselves for their highly reliable characteristics matched to an exceptional low price. Please contact us for further information. Peso / Weight /...

 Open the catalog to page 3
Short-form Catalogue (KR10-10)-4

30 38Z 40 40F 40Z 44EA ø 30x31,3 - IP52 ø 38x45,5 - IP54 ø 40x36 - IP52 ø 40x52,5 - IP52 ø 40x40 - IP52 ø 44x52 – IP54 ø 4x11,2 ø 4÷8 ø 6x15 ø 6x10 ø 6÷12 pass through ø 6x12,5 ~ 80 g ~ 180 g ~ 120 g ~ 150 g ~ 120 g ~ 100 g Max 10 N Max 15 N Max 10 N Max 10 N Max 15 N Max 10 N Ax. cable Rad. cable Rad. cable Rad. cable Rad. cable Ax. cable 5 ÷ 24V 5 ÷ 24V 5 ÷ 24V 5 ÷ 24V 5 ÷ 24V 5 ÷ 24V NPN, line-driver, push-pull Line-driver, push-pull NPN, line-driver,push-pull NPN, line-driver,push-pull NPN, line-driver, push-pull Line-driver, push-pull 100÷1024 2500 2500 2500 2500 2500 180 kHz 160 kHz 180...

 Open the catalog to page 4
Short-form Catalogue (KR10-10)-5

PTA35 PTV35 P .. POTENZIOMETRI ANALOGICI .. ANALOGIC POTENTIOMETERS .. POTENTIOM. ANALOGIQUES .. ANALOGISCHE POTENTIOMETER I potenziometri analogici SICOD contengono al loro interno un potenziometro multigiro con avvolgimento ibrido ed un convertitore analogico Essi abbinano al basso costo l’elevata affidabilità. Versioni custom disponibili a richiesta. Dimensioni / Dimensions / Dimensions / Abmessunge 35x24 – IP65 35x38 – IP65 Ø Albero / Ø Shaft / Ø Axe / Ø Welle ø 6,35x12 ø 6,35x12 SICOD analogical potentiometers include a multi turn potentiometer with winding hybrid and analogical converter....

 Open the catalog to page 5
Short-form Catalogue (KR10-10)-6

PRODUZIONE: Encoder incrementali e assoluti low-cost Encoder modulari Trasduzioni a filo Potenziometri Giunti PRODUCTION: Incremental and absolute low-cost encoders Modular encoders Cable transducers Potentiometers Couplings PRODUCTION: Codeurs incrémentaux et absolus a bas prix Codeurs modulaire Transducteurs à fil Potentiomètres Accouplements HERSTELLUNG: Inkrementale und absolute low-cost Drehgeber Kit Drehgeber Seilgeber Potentiometer Kupplungen RAPPRESENTANTE / AGENT / REPRESENTANT / VETRETER I dati riportati nel catalogo possono cambiare senza preavviso. Specifications on catalog may be...

 Open the catalog to page 6
