Pressure/Level
8Pages

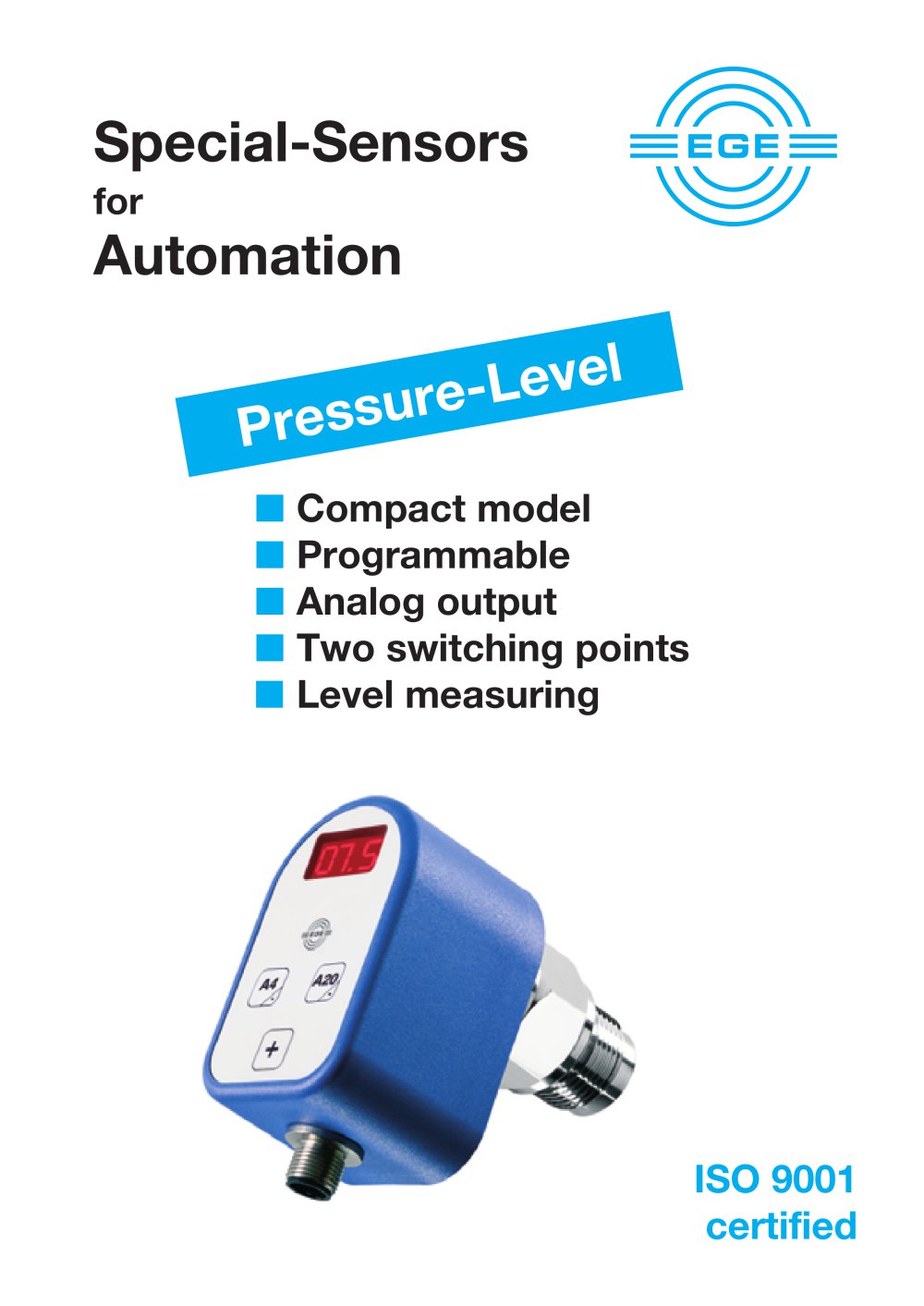

Automation evel ure-L Compact model Programmable Analog output Two switching points Level measuring

Pressure Sensors Technology and application Usage This high performance device monitors pressure levels in pipes and containers. However, the high accuracy of its capacitive ceramic gauge head makes it an effective fill level monitor as well. It can record fill levels with an accuracy of one centimeter in containers that stand five meters tall. Measurement instruments with a 1000 mbar measurement range have proven to be very useful for these types of applications. When measuring the fill level of water, 10 mbar of pressure corresponds to 10 cm water height. The instrument displays the...

Pressure Sensors Two switching points Series DN 752 Monitoring sensor for gases and fluids Fast and easy programming Two independent switching points 7-segment display Display rotatable Design Sensing range Output ID-No. Type Supply voltage [V] Switching current [mA] Current consumption [mA] Ambient temperature [°C] Medium temperature [°C] Compressive strength [bar] Sensor material Material gauge head Sealing material Housing material Protection [EN 60529] Connection 2 3 48 AISI 316 Ti Ceramic FPM PBT IP 65 M12 connector (1) BN (4) BK Connecting cable Type SLG 4-2 (Z00445) EGE-Elektronik...

Pressure Sensors Analog output Series DN 752 Monitoring sensor for gases and fluids Fast and easy programming Analog output model 7-segment display Display rotatable Design Sensing range Output ID-No. Type Supply voltage [V] Current ouput [mA] Load RL [] Current consumption [mA] Ambient temperature [°C] Medium temperature [°C] Compressive strength [bar] Sensor material Material gauge head Sealing material Housing material Protection [EN 60529] Connection 48 AISI 316 Ti Ceramic FPM PBT IP 65 M12 connector L+ Connecting cable Type SLG 3-2 (Z01076) EGE-Elektronik Spezial-Sensoren GmbH •...

Pressure Sensors Two switching points and analog output Series DN 752 Monitoring sensor for gases and fluids Linear current output 4...20 mA Two programmable switching points NC/NO programmable Display rotatable Design Sensing range Output ID-No. Type Supply voltage [V] Current output [mA] Switching current [mA] Load RL [] Current consumption [mA] Ambient temperature [°C] Medium temperature [°C] Compressive strength [bar] Sensor material Material gauge head Sealing material Housing material Protection [EN 60529] Connection 64 AISI 316 Ti Ceramic FPM PBT IP 67 M12 connector (1) BN Connection...

Pressure Sensors Switching points and analog output Additional technical data Output analog Linearity Temperature drift Long time drift Influence of supply voltage Input/output resolution Alignment range Adjustment range of damping 4...20 mA 0.2% of maximum value 0.1% / 10 K of maximum value 0.1% / Year of maximum value 0.5% / 10 V of maximum value 16 Bit zero point 0% - 95% / final point 3,3% - 100% 0...30 seconds Switching output S1 / S2 Output voltage Time delay Rise time PNP NO/NC programmable +UB – 1.5 V < 8 ms < 400 μs with RL < 400 or IL > 4.5 mA, respectively Operational and display...

Process Sensors Flow sensors Electronical monitoring of flow ■ Measuring range 1 ml/min...100 l/min Level sensors for Ex-applications ■ For level monitoring in Ex areas ■ With PTFE connector cable Sensors for connection to amplifiers Level sensors ■ Steam proof at a pressure of up to 30 bar ■ For chemically aggressive media Ultrasonic sensors Temperature sensors ■ Compact model with digital display ■ Monitoring in pipes and containers ■ Multi use output NO/NC + analog Infrared detectors Position control EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com
