Opto high capacity systems
12Pages

{{requestButtons}}

Catalog excerpts

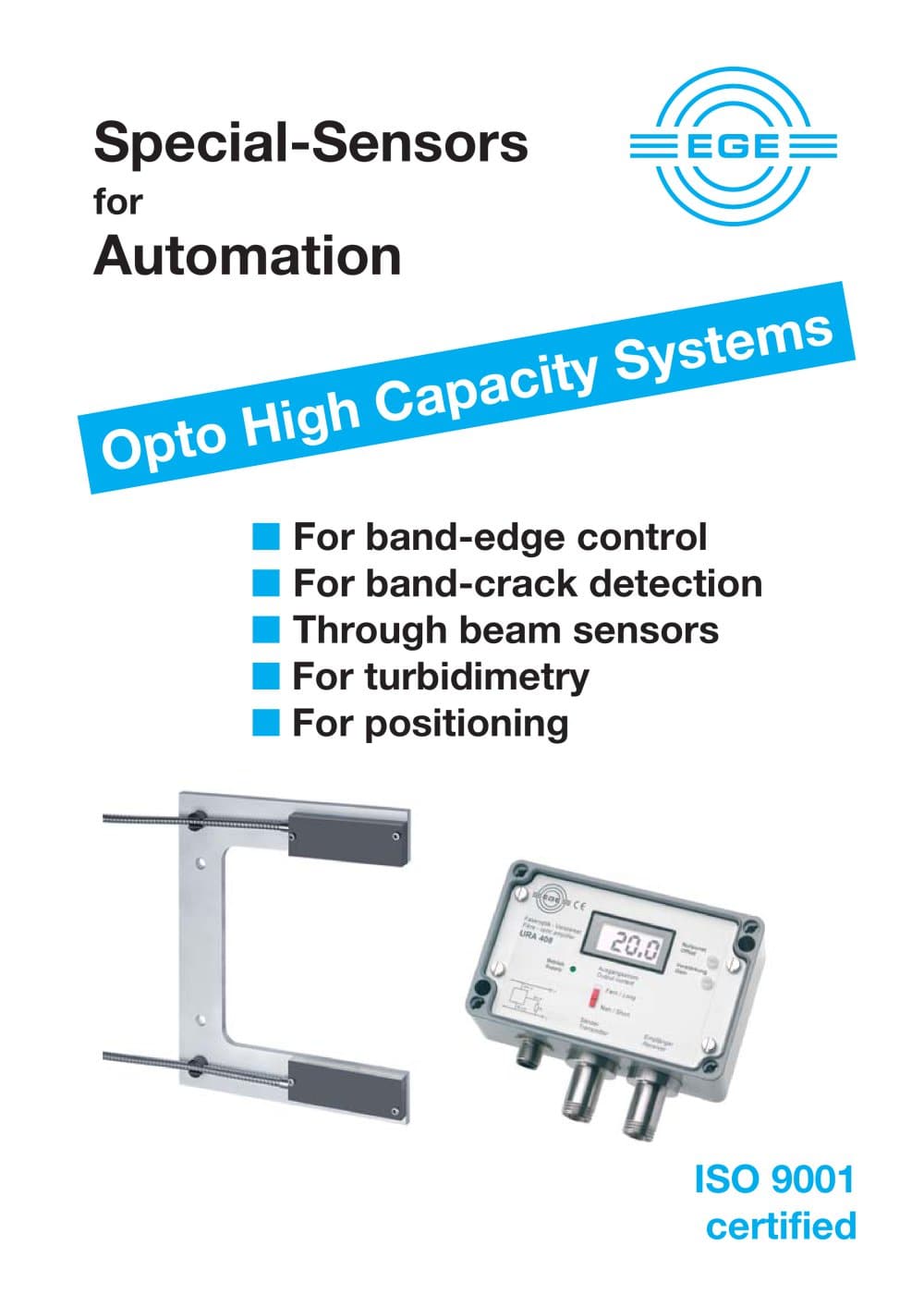

Opto high capacity systems - 1

■ For band-edge control ■ For band-crack detection ■ Through beam sensors ■ For turbidimetry ■ For positioning

Open the catalog to page 1
Opto high capacity systems - 2

Opto-Sensors Technology and application System description The Opto Edge controller consists of an amplifier (1) to which two fibre-optic cables (2) of up to 10 m in length can be connected via a rapid action coupling. The first fibreoptic cable routes a send signal generated by the amplifier to a first optical converter (3), while the second fibre-optic cable returns a send signal detected by a second optical converter (4) to the amplifier as a receiving signal. This receiving signal is processed further in the amplifier into an output control signal. The Opto Edge controller works with...

Open the catalog to page 2
Opto high capacity systems - 3

Opto-Sensors Technology and application High capacity amplifier URA 408 Fibre-optic cable and optical converter The fibre-optic cables used are made of glass fibre bundles which are installed in flexible stainless steel tubing or in a metal housing to protect them against environmental influences. They can be subjected to 250 °C and in special applications up to 350 °C. If a high degree of moisture is expected the stainless steel tubing is enclosed in an additional silicon sheath. The greatest advantage of the fibreoptic cable is that it is absolutely insensitive to electrical and magnetic...

Open the catalog to page 3
Opto high capacity systems - 4

Opto-SensorsAnalog high-capacity amplifier Series URA 4...20 mA output 10 kHz detection frequency LCD display EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 4
Opto high capacity systems - 5

Series URA Outputs 4...20 mA 0...10 V Relay output PNP output Discriminator Fibre-optic cable rapid action coupling EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 5
Opto high capacity systems - 6

Series ULW Recording width up to 100 mm Ambient temperature up to 200 °C High resolution Recording width B [mm] EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 6
Opto high capacity systems - 7

Opto-Sensors Band-edge detector Series UBD Light barrier technology Up to 100 mm sensing range Up to 200 mm fork width Light barrier fork L ID-No. Type Fork width A [mm] Mounting breadth M [mm] Fork size L x H [mm] Length of light cable [cm] Temperature range [°C] Detection tolerance [mm] Protection [EN 60529] Material converter Material cable Characteristics 200 – 25...+200 1 IP 54 aIuminium stainless steel Fibre-optic cable rapid coupling required amplifier series URA..., see page 5.04, 5.05 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 7
Opto high capacity systems - 8

Opto-Sensors High performance through beam sensors Series ULM Range up to 100 m Sensing range [m] Function ID-No. Type Ambient temperature [°C] Field of view [°] EMC-class [mm] Housing material Protection [EN 60529] Connection Receiver P50002 ULME 030 VS – 20...+70 10 A brass-nickel IP 67 5 m PVC-cable 4x0.34 mm2 reqiured amplifier series OKZ 550 GWR, see page 5.10 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.

Open the catalog to page 8
Opto high capacity systems - 9

Opto-SensorsHigh temperature through beam sensors Series ULL To be used with fibre-optic Up to 350 °C With intermediate repeater Fibre-optic amplifier Attachment optics Sensing range [m] required amplifier series OKZ 550 GWR, see page 5.10 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 9
Opto high capacity systems - 10

Opto-Sensors Amplifier Series OKZ AC-Voltage supply DC-Voltage supply LED indication Cable break and short circuit monitoring ID-No. Type Supply voltage [V] Current consumption [mA] Sensing range Hysteresis Light on / dark on Output Switching current Switching power Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN60529] Function indicator Housing material P50030 OKZ 550 GWR 24 DC / 230 AC 60 / 10 adjustable max. 10% switchable relay with change-over conact max. 4 A / 250 V AC 1000 VA / cos ϕ > 0.7 / L/R < 200 ms 5 – 20...+60 A screw terminals IP 20, housing IP 40...

Open the catalog to page 10
Opto high capacity systems - 11

Type ID-No. Design 1 m fibre-optic cable up to 250 °C 2 m fibre-optic cable up to 250 °C 3 m fibre-optic cable up to 250 °C 5 m fibre-optic cable up to 250 °C 10 m fibre-optic cable up to 250 °C Fibre-optic cable with increased lengths or with protection hose on request. Fibre-optic mounting clamp Air blower for optical converter ULW 100-200, length L=120 mm Air blower for optical converter ULW 50-200, length L=70 mm Mounting clamp for optic ULV EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 11
Opto high capacity systems - 12

Cematic-Electric B.V. Postbus 777 NL-7550 AT Hengelo Tel. +31 742433422 Fax +31 742913333 ICM Ital Control Meters Srl Via della Valle 67 I-20048 Carate Brianza (Mi) Tel. +39 0362 8052 00 Fax +39 0362 8052 01 Bibus Spain, S. L. Rua do Arroncal, Vial C - Nave 4A ES-36350 Nigran Tel. +34 986 247286 Fax +34 986 209247 Powelectrics Limited Sandy Hill Park, Sandy Way Amington, Tamworth GB-Staffordshire B77 4DU Tel. +44 1827310666 Fax +44 1827310999 Countapulse Controls (PTY) LTD. P.O.B. 40393 ZA-2022 Cleveland Tel. +27 116157556 Fax +27 116157513 Shanghai Beishidetian Business Trade Co., Ltd. 4F,...

Open the catalog to page 12
