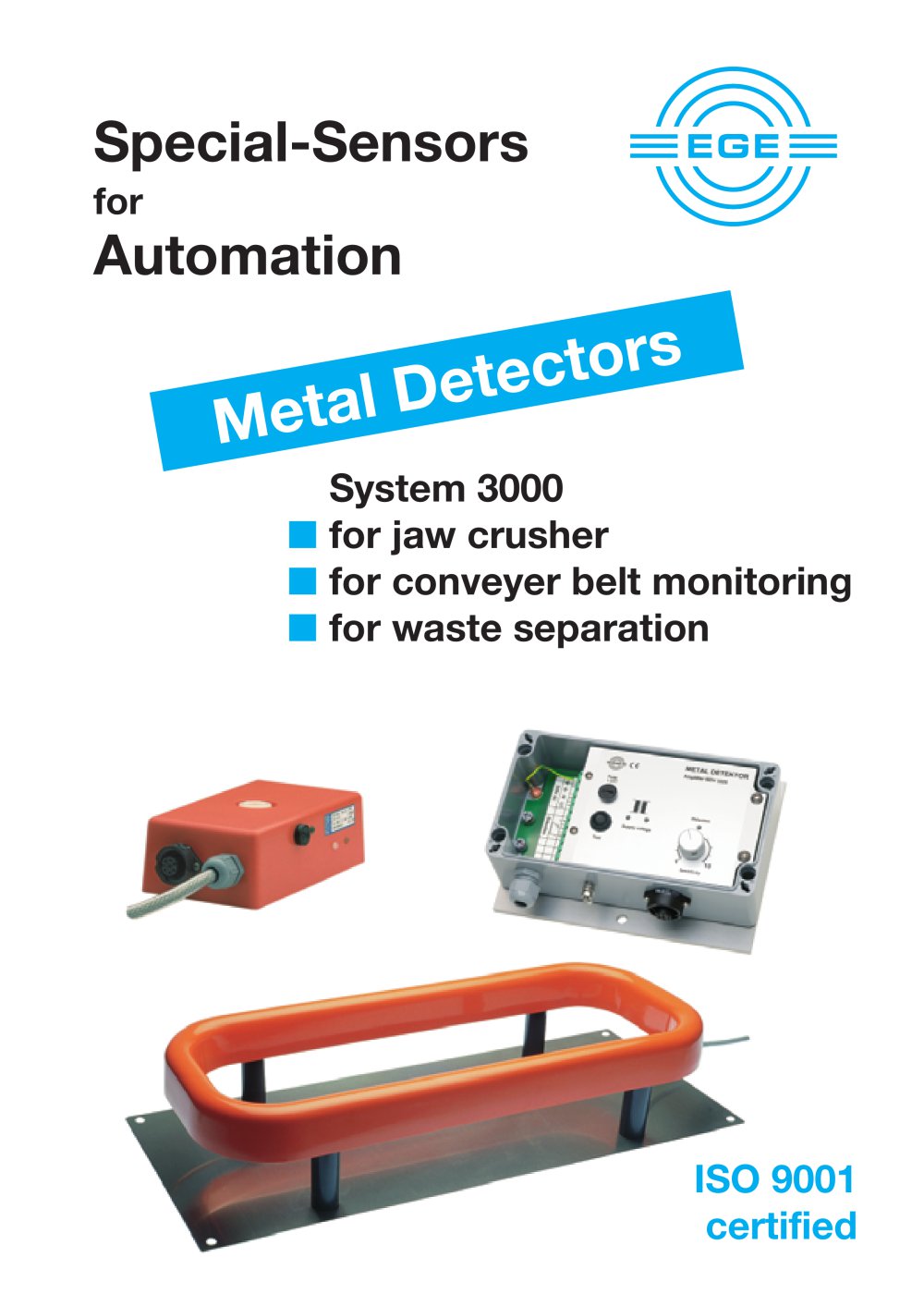

System 3000 for jaw crusher for conveyer belt monitoring for waste separation
Open the catalog to page 1Metal Detectors Technology and use The metal detector System 3000 is designed to detect medium size and larger pieces of metal. The system has a very effective means of adjusting sensitivity. When used with the MU 3300 amplifier, it will respond at the highest level of sensitivity to medium size parts like nails, washers, or pieces of flatware. When used with the MDV amplifier, it will respond only to larger pieces of metal like teeth from an excavator bucket, tools, or metal paneling. If not discovered, these items could destroy stone-crushing machines, vibratory equipment, or...
Open the catalog to page 2Metal Detectors Amplifier for detector coils Series MU High sensitivity Automatic adaption Self monitoring function Reset function 230 / 115 V AC ID-No. Type Supply voltage [V] Current consumption [mA] Output Switching voltage [V] Switching current [A] Switching power [VA] Ambient temperature [°C] Time delay [s] EMC class Protection [EN 60529] Display Housing material P81012 MU 3300 230 / 115 AC ±10% <60 Relay / Change over contact 250 AC / 220 DC 4 1000 / 60 (cos = 1) -20...+60 typ. 60 A IP 65 LED-array Steel Sensitivity diagram (steel cube ST 37) Relay „Detection“ decays when metal is...
Open the catalog to page 3Metal Detectors Amplifier for detector coils Series MDV Automatic regulation adaption Waterproof IP 67 For detector coil with cable plug ID-No. Type Supply voltage [V] Current consumption [mA] Output Switching voltage [V] Switching current [A] Switching power [VA] Ambient temperature [°C] EMC class Protection [EN 60529] Display Housing material Connection P81017 MDV 3172 WR1 115 AC ±10% <60 Relay / Change over contact 250 AC / 220 DC 1 AC / 2 DC 125 VA / 60 W -25...+70 A IP 67 LED PVC 2 m PVC cable 7x0,5 mm2 Note: The amplifier MDV 3172 has a NO-function. During metal detection, the relay...
Open the catalog to page 4Metal Detectors Amplifier for detector coils Automatic regulation adaption For detector coil with cable plug With sensitivity adjustment knob Test button Housing material possible to adjust the sensi- a NO-function. During metal detection, the relay is activa- By pushing the test button Relay / Change over contact Screw terminals EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com
Open the catalog to page 5Metal Detectors Detector coils Series MDS Designed for outdoor use Rugged construction Substantially made ID-No. Type Coil type Ambient temperature [°C] Protection [EN 60529] Housing material Connection P81056 MDS 3095-SA A -25...+70 IP 67 PBT / Aluminium plate 3 m PUR cable with cable plug Sensitivity diagram (steel cube ST 37) Schaltabstand / distance mm 500 Maximum sensitivity for detector coil MDS 3065 with MDV Note: When using two detector coils one coil must be coil type A and the other coil type B. The maximum detection width increases up to 1800 mm (see connection box MA 125, page...
Open the catalog to page 6Metal Detectors Accessories SUPPLY ISOLATION UNIT NTG 251/255, DTG 24 Type NTG 251 NTG 255 DTG 24 The power supply isolation unit is connected between the power supply and the amplifier MDV… It limits the power supply overvoltage and therefore protects the amplifier against overloading. It is used wherever no overvoltage protection is available, where the power supply takes place via an overhead power transmission network or an unstabilised battery charger, or where high inductive loads, e.g. motors, are directly switched. The power supply isolation unit acts also as an interface filter....
Open the catalog to page 7Headquarters EGE-Elektronik Spezial-Sensoren GmbH Ravensberg 34 D-24214 Gettorf Tel. +49 (0) 4346 / 41580 Fax +49 (0) 4346 / 5658 Internet: www.ege-elektronik.com EGE-Elektronik ApS Forstallé 79 DK-6200 Aabenraa Tel. +45 70207271 Fax +45 70207272 Stork AS Brynsveien 100 N-1352 Kolsås Tel. +47 67176400 Fax +47 67176401 Cematic-Electric B.V. Postbus 777 NL-7550 AT Hengelo Tel. +31 742433422 Fax +31 742913333 ICM Ital Control Meters Srl Via della Valle 67 I-20048 Carate Brianza (Mi) Tel. +39 0362 8052 00 Fax +39 0362 8052 01 Bibus Spain, S. L. Rua do Arroncal, Vial C – Nave 4A ES-36350 Nigran...
