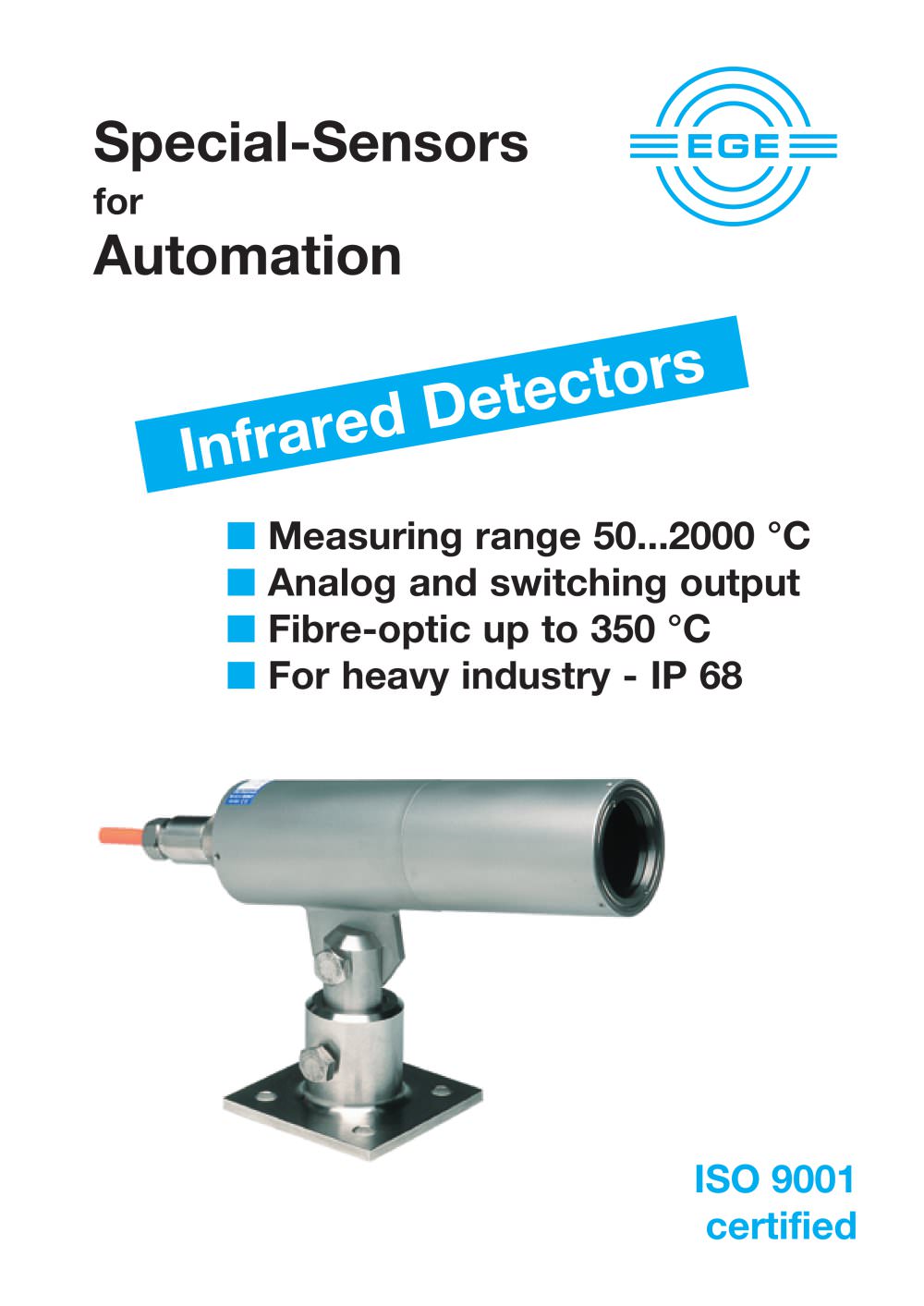

Infrared detectors - 1

ared Infr ctors Dete Measuring range 50...2000 °C Analog and switching output Fibre-optic up to 350 °C For heavy industry - IP 68

Open the catalog to page 1
Infrared detectors - 2

Infrared Detectors Function and application Where conventional sensors would fail due to too high temperature, infrared detectors working on a non-contact principle can be used. They respond to the radiated heat of the hot materials. Compact units with optics are used for distances of 2 to 8 m from the object. For distances of only a few cm, heat-resistant light-conducting cables should be used for transmission. Series ODM Infrared detectors ODM... detect energy radiated by a hot body in the near infrared range (1...3 μm). Energy absorbed within the spectral range determines detected...

Open the catalog to page 2
Infrared detectors - 3

Infrared Detectors Typical diagrams for infrared detectors If the hot surface is smaller than the field of view of the infrared detector, not so much energy enters into the opening of the infrared detector as would be possible under full illumination. Therefore the temperature will be falsely determined. This can be corrected when it is known what percentage of the field of view is covered by the hot surface. If the illumination is not 100%, the threshold temperature of the infrared detector must be lowered in order to detect the hot surface. (Diagram 2) object surface area detector visible...

Open the catalog to page 3
Infrared detectors - 4

Infrared Detectors Compact models Series ODMO Sensors with switching output Threshold 300 - 600 - 750 °C Field of view 2° Modular system Waterproof IP 68 + IP 69K Design Sensing temperature Output ID-No. Type Operating voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Voltage drop max. [V] Minimum load current [mA] Current consumption [mA] Hysteresis Ambient temperature [°C] EMC-class Protection [EN 60529] Housing material Connection Connection VEG 5-5 1 View to plug side Accessories 6.04 ODMO 402 WS ODMO 402 GSP ODMO 602 WS ODMO 602 GSP ODMO 902 WS ODMO 902...

Open the catalog to page 4
Infrared detectors - 5

Infrared Detectors Compact models Series ODMO Sensors with switching output Threshold 300 - 600 - 750 °C Field of view 5° Modular system Waterproof IP 68 + IP 69K Design Sensing temperature Output ID-No. Type Operating voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Voltage drop max. [V] Minimum load current [mA] Current consumption [mA] Hysteresis Ambient temperature [°C] EMC-class Protection [EN 60529] Housing material Connection Connection VEG 5-5 1 ODMO 405 WS ODMO 405 GSP ODMO 605 WS ODMO 605 GSP ODMO 905 WS ODMO 905 GSP View to plug side Accessories...

Open the catalog to page 5
Infrared detectors - 6

Infrared Detectors Fibre glass optic Series ODML Sensors with switching output Threshold 350 - 650 - 800 °C Field of view 4° und 8° Modular system Special plug for IP 68 Design DC PNP • 2 conductor AC • Amplifier for fibre optics Sensing temperature Output ID-No. Type Operating voltage [V] Switching current [mA] Short circuit proof Overcurrent release [mA] Voltage drop max. [V] Minimum load current [mA] Current consumption [mA] Hysteresis Ambient temperature [°C] EMC-class Protection [EN 60529] Housing material Connection Connection VEG 5-5 1 View to plug side Accessories 6.06 see page 6.10...

Open the catalog to page 6
Infrared detectors - 7

Infrared Detectors Compact models Series OD 100 Sensor with two switching points Measuring-range 0...300 °C Two switching outputs PNP Stainless steel housing Sensing range Output ID-No. Type Operating voltage Current consumption Switching current Overcurrent release Voltage drop max. Field of view Reproduction [V] [mA] [mA] [mA] [V] [°] [°C] Temperature coefficient [%/K] Hysteresis [°C] Response time [ms] Ambient temperature [°C] EMC-class Protection [EN 60529] Housing material Connection Diameter of sight plane [mm] 280 245 210 175 Accessories EGE-Elektronik Spezial-Sensoren GmbH •...

Open the catalog to page 7
Infrared detectors - 8

Infrared Detectors Analog detector Series OD 100 Analog infrared detectors Measuring-range 0...300 °C Analog output 4...20 mA Stainless steel housing Sensing range Output ID-No. Type Operating voltage Current consumption Current output Field of view Reproduction [V] [mA] [mA] [°] [°C] Temperature coefficient [%/K] Response time [ms] Precision [%] Ambient temperature [°C] Load resistance RL [] EMC-class Protection [EN 60529] Housing material Connection 18...32 DC < 40 4...20 < 10 ±1 ±0,1 of the measuring value <100 ±3 of the measuring value – 10...+60 < 500 A IP 67 AISI 316 Ti M12 connector...

Open the catalog to page 8
Infrared detectors - 9

Infrared Detectors Fibre-optic amplifier Series ODE Contactless measurement of temperature Measuring-range 300...2000 °C Analog output 4...20 mA Switching output PNP • Relay output Threshold adjustable Fibre-optic cable up to 350 °C Design Measuring range Operating voltage ID-No. Type Power consumption Ambient temperature Relay output Switching output max. Current max. [V] [A] Nominal switching power [VA] Voltage output [V] Load resistance [k] Current output [mA] Load resistance [] Current sensitivity [mA/V] EMC-class Protection [EN 60529] Reponse time [ms] Empfindlichkeitskennlinien...

Open the catalog to page 9
Infrared detectors - 10

Infrared Detectors Optics and accessories Type Fixing device for front-optics ULV 2 m fibre-optic cable up to 250 °C 3 m fibre-optic cable up to 250 °C 5 m fibre-optic cable up to 250 °C 10 m fibre-optic cable up to 250 °C Fibre-optic cable with increased lengths or with protection hose on request. Z06004 Rotating mounting Air curtain device for Series ODMO... with housing Ø 60 mm Connection plug cable ODM Connection plug cable with PU-cable 5 m IP 68 M12 connector Cable plug housing with 2 m cable 38,5 EGE-Elektronik Spezial-Sensoren GmbH • http://www.ege-elektronik.com

Open the catalog to page 10
Infrared detectors - 11

Process Sensors Flow sensors Electronical monitoring of flow ■ Measuring range 1 ml/min...100 l/min Level sensors for Ex-applications ■ For level monitoring in Ex areas ■ With PTFE connector cable Sensors for connection to amplifiers Level sensors ■ Steam proof at a pressure of up to 30 bar ■ For chemically aggressive media Ultrasonic sensors Pressure sensors ■ Compact model with digital display ■ Monitoring in pipes and containers Temperature sensors ■ Compact model with digital display ■ Monitoring in pipes and containers ■ Multi use output NO/NC + analog EGE-Elektronik Spezial-Sensoren...

Open the catalog to page 11
