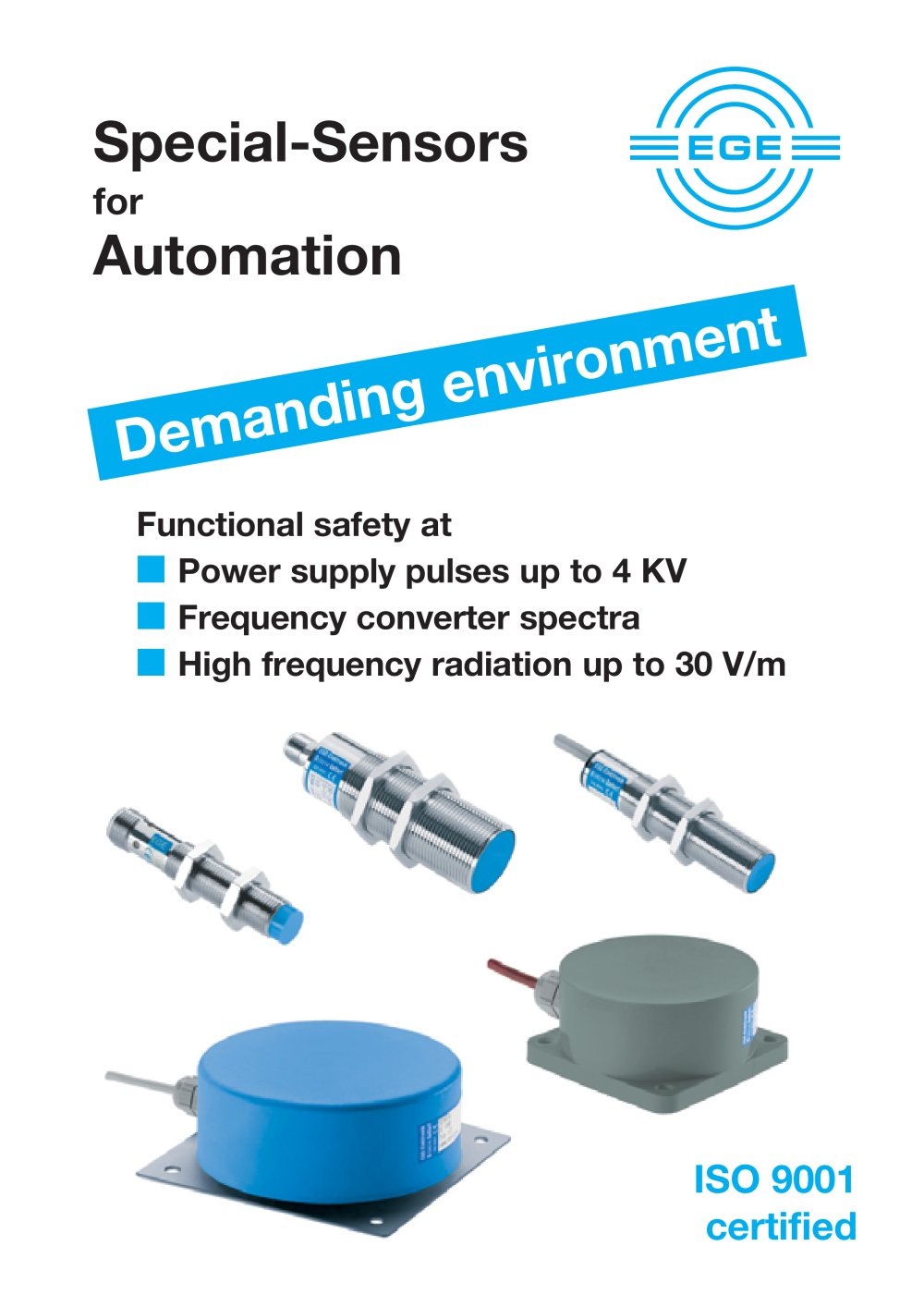

demanding environment - 1

Special-Sensors for Automation ment viron ing en and m De Functional safety at Power supply pulses up to 4 KV Frequency converter spectra High frequency radiation up to 30 V/m ISO 9001 certified

Open the catalog to page 1
demanding environment - 2

Inductive Sensors Demanding environment Electromagnetic interference In contrast to sinusoidal waveforms, the voltage or current pulses used have very steep slopes/edges that can generate a very broadband interference spectrum, which can cover a spectrum of up to 30 MHz. High frequency technologies in a frequency range up to 2 GHz, which are used for the wireless transmission of digital signal sequences, are also problematic. It “collects” the surrounding interference signals and, depending on line length and interference frequency, transfers them directly to the sensor electronics....

Open the catalog to page 2
demanding environment - 3

Inductive Sensors Demanding environment Valid standards The effects of the electromagnetic interferences transmitted to the sensor line can be reduced by selecting high quality power supplies equipped with integrated interference filters. Sensors used in extreme environmental conditions can also be fitted with rejection filters and suitable components that meet higher demands than those of customary standards. The “demanding environment” sensors offered by EGE are designed specifically for rugged environments in which sensors are exposed to high electrical, electromagnetic or mechanical...

Open the catalog to page 3
demanding environment - 4

Inductive Sensors Demanding environment Series IGM - Proximity switches M12 / M18 / M30 Metal sleeve DC 10…48 V Short form LED 2f 4 nf ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Current consumption [mA] Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN 60529] LED display Housing material Connection P31246 IGMU 02 GSP P31247 IGMU 04 GSP (1) BN (4) BK (3) BU 3.04 EE30410 L+ 5f 1 L- 4 P31250 P31251 IGMU 05 GSOP IGMU 08 GSOP 10...48 DC 200 • • 2 2.5 500 – 25...+75 A IP 67 • Br-Ni / PBT M12 connector 45...

Open the catalog to page 4
demanding environment - 5

Inductive Sensors Demanding environment Series IGM - Proximity switches M12 / M18 / M30 Metal sleeve DC 10…48 V Short form LED Operating distance sn [mm] Switching output 2f 4 nf ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Current consumption [mA] Switching frequency [Hz] Ambient temperature [°C] EMC-class Protection [EN 60529] LED display Housing material Connection P31244 IGM 02 GSP P31245 IGM 04 GSP 2 m PVC-cable 3x0.34 mm² BN L+ BK BU LED LED 5f 10 36 LED LED 8 nf 45 54 36 8 LED 24 8 17 8 Installation flush (f) non flush...

Open the catalog to page 5
demanding environment - 6

Inductive Sensors Demanding environment Series IGM - Proximity switches M18 / M30 Metal sleeve DC 10…48 V AC 20...250 V Long form Design DC PNP • M18x1 DC PNP • M30x1.5 AC • M30x1.5 10 8 10 programmable Operating distance sn [mm] Switching output 5f 8 nf LED LED 14 LED 10 f 15 nf 64 36 36 20 Installation flush (f) non flush (nf) 36 82 36 64 LED 24 82 82 24 14 64 Dimensions LED LED 10 f 15 nf ID-No. P31258 P31259 P31262 P31263 Type IGMU 005 GSOP IGMU 008 GSOP IGMU 010 GSOP IGMU 015 GSOP Supply voltage [V] 10...48 DC Switching current [mA] 200 Short circuit proof • Reverse protection •...

Open the catalog to page 6
demanding environment - 7

Inductive Sensors Demanding environment Series IGM - Proximity switches M18 / M30 Metal sleeve DC 10…48 V AC 20...250 V Long form AC • M30x1.5 10 DC PNP • M30x1.5 10 DC PNP • M18x1 8 Design 36 64 36 82 36 64 24 24 82 82 64 Dimensions 36 5f 8 nf 10 f 15 nf ID-No. P31256 P31257 P31260 Type IGM 005 GSOP IGM 008 GSOP IGM 010 GSOP Supply voltage [V] 10...48 DC Switching current [mA] 200 Short circuit proof • Reverse protection • Voltage drop [V] 2 Minimum load current [mA] – Current consumption [mA] 2.5 Swiching frequency [Hz] 500 Ambient temperature [°C] – 25...+75 EMC-class A Protection [EN...

Open the catalog to page 7
demanding environment - 8

Inductive Sensors Demanding environment Series ID - Proximity switches Ø 80 mm DC 10...55 V AC 20...250 V Sensing range adjustable Design DC PNP Ø 80 mm DC PNP Ø 80 mm AC Ø 80 mm antivalent antivalent programmable 65 40 5,5 5,5 Dimensions 65 8 Installation non flush (nf) Pot. 80 Pot. LED LED Operating distance sn [mm] (Adjustable range) Switching output 55 nf (25…80) 55 nf (25…80) 55 nf (25…80) ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Minimum load current [mA] Current consumption [mA] Switching frequency [Hz] Ambient...

Open the catalog to page 8
demanding environment - 9

Inductive Sensors Demanding environment Series ID - Proximity switches Ø 105 mm DC 10...55 V AC 20...250 V Sensing range adjustable Design DC PNP Ø 105 mm DC PNP Ø 105 mm AC Ø 105 mm antivalent antivalent programmable 85 40 5,5 5,5 Dimensions 85 Ø 105 10 Installation non flush (nf) Pot. LED Pot. LED Operating distance sn [mm] (Adjustable range) Switching output 100 nf (20…110) 100 nf (20…110) 70 nf (20…110) ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Minimum load current [mA] Current consumption [mA] Switching frequency [Hz]...

Open the catalog to page 9
demanding environment - 10

Inductive Sensors Demanding environment Series ID - Proximity switches Ø 160 mm DC 10...55 V AC 20...250 V Sensing range adjustable Design DC PNP Ø 160 mm DC PNP Ø 160 mm antivalent AC Ø 160 mm antivalent programmable 150 175 60 175 Dimensions 9 9 150 Ø 160 3 Installation non flush (nf) Pot LED Pot LED Operating distance sn [mm] (Adjustable range) Switching output 120 nf (20…150) 120 nf (20…150) 120 nf (20...150) ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Minimum load current [mA] Current consumption [mA] Switching frequency...

Open the catalog to page 10
demanding environment - 11

Inductive Sensors Demanding environment Series ID - Proximity switches Ø 200 mm DC 10...55 V AC 20...250 V Sensing range adjustable DC PNP Ø 200 mm DC PNP Ø 200 mm AC Ø 200 mm antivalent antivalent programmable 10,5 175 Ø 200 3 210 Dimensions 60 Design 170 200 Installation non flush (nf) Pot. LED Pot. LED Operating distance sn [mm] (Adjustable range) Switching output 140 nf (40…170) 140 nf (40…170) 140 nf (40…170) ID-No. Type Supply voltage [V] Switching current [mA] Short circuit proof Reverse protection Voltage drop [V] Minimum load current [mA] Current consumption [mA] Switching...

Open the catalog to page 11
