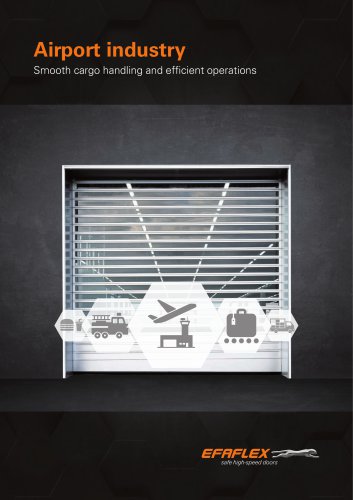

Airport industry Smooth cargo handling and efficient operations

Airport industry Airport facilities around the world are facing increased usage, and pressure to deliver improved passenger safety. From first arrival, through to take off there are a stream of processes, procedures, and safety checks, each of which need to coordinate to reduce the risk of costly delays. Meticulous planning is vital to avoid queues and back logs. EFAFLEX have developed a portfolio of high-speed doors that can help across any airport facility. Designed bespoke for areas including baggage handling, catering zones, and emergency services they all can help to reduce energy usage,...

Individual solutions for the airport industry. High-speed turbo door EFA-STT® Page 7 High-speed spiral door EFA-SST® Page 6 High-speed spiral door EFA-SST® TK-100 Page 9 High-speed spiral door EFA-SST® ISO-60 Page 8 For more information about our solutions for the airport industry visit: www.efaflex.com/airpor

YOUR ADVANTAGES AT A GLANCE: • Industry-specific door solutions for effective airport security and logistics • Opening at speeds up to 3.0 m/s and closing up to 1.0 m/s • Crystal clear laths for increased daylight and improved user safety as an option • Optional thermal insulation door leaf • Extremely fast and quiet operation due to spiral construction • Top safety devices High-speed roll-up door EFA-SRT® MHT Compact Page 11 High-speed spiral door EFA-SST® Page 6 High-speed spiral door EFA-SST

• Max. heat insulation with EFA-THERM® laths • Highest wind load capacity • Also available in low-header design Spiral door technology in perfection.EFA-SST® The EFA-SST® high-speed spiral door represents a modern generation of industrial doors: perfect insulation, energy-efficient functionality, state-of-the-art technology. During the technical redesign, particular attention was paid to improving the physical properties of the door leaf as well as optimising the functionality, thus once again raising the standard of EFAFLEX industrial doors.

Thanks to laths made of crystal-clear acrylic glass, the door leaf of the EFA-STT® is over 70 percent transparent - this makes it a unique high-speed door worldwide: robust and yet almost completely see-through. The ability to see through the door offers advantages where two-way traffic occurs: Accidents are prevented and smooth transport operations are guaranteed. • The door leaf consists at 70% of crystal clear acrylic glass • Highest wind load capacity • Also available in low-header design

• Max. heat insulation with EFA-THERM® laths • 60 mm thick door leaf The lock-up door for thermo-regulated zones. EFA-SST® ISO-60 Doors in cooled spaces must withstand extremely high loads. Top quality and perfect workmanship are paramount for ensuring that all components are absolutely resistant to cold and humidity. EFA-SST® ISO 60 is the ideal closing door for frequent openings with high requirements for insulation, as is the case in cooling rooms. The EFA-SST® ISO-60 combines two EFAFLEX door technologies into one innovative solution: the spiral and highly insulating laths. In addition, high-quality...

The specialist door for minus degrees. EFA-SST® TK-100 The EFA-SST® TK-100 high-speed spiral door is the first true single-door solution for freezer areas. In addition to the highest opening and closing speeds, it achieves the best insulation values for spiral doors and thus represents a high-quality solution for every deepfreeze room. • Optimal single door solution • Air permeability class 5 according to DIN EN 12426 • Frames and laths thermally separated • Almost hermetically sealed

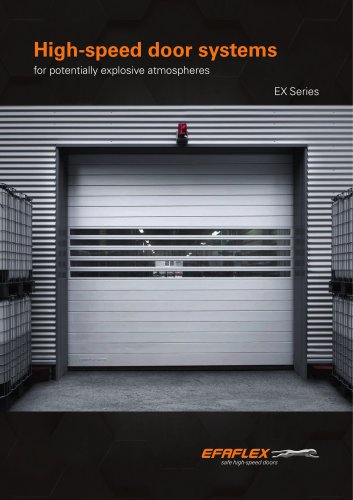

• For use in explosion Protection Zones 1 and 2, optionally on request in • Highest wind load capacity • Suitable for external and internal applications The hall door for potentially explosive atmospheres. EFA-SST® EX The EFA-SST® EX is designed for both outdoor and indoor use in potentially explosive atmospheres. In addition to high opening and closing speeds, it particularly impresses with a solid door leaf with high wind resistance and optimal sealing. The door leaf consists of double-walled aluminium laths that be combined with transparent laths. It is also possible to have the door leaf...

The customised plant solution.EFA-SRT® MHT Compact Capable of up to 500,000 load changes per year, the innovative EFA-SRT® MHT Compact performs the highest number of openings and closings on the market. The door also impresses with its compact design with control integrated into the frames and a self-supporting construction. This allows it to be flexibly integrated and customised into complex systems, such as baggage handling at airports. • Door system for industrial and commercial purposes in materials handling technology • Control system completely integrated in construction • Self-supporting...

Standard, o upon request, - Not available, npd = No Performance Determined

• Standard, o upon request, - Not available, ^Depending on door leaf, guide of door leaf and door size, we reserve the right to make technical alterations!

Standard, o upon request, - Not available, npd = No Performance Determined,

• Standard, o upon request, - Not available, * Depending on door leaf, guide of door leaf and door size, we reserve the right to make technical alterations!

Standard, o upon request, - Not available, o (1) Depending on the type of drive, * Depending on door leaf, guide of door leaf and door size, we reserve the right to make technical

EFAFLEX Tor- und Sicherheitssysteme GmbH & Co. KG Fliederstraße 14 84079 Bruckberg / Germany Telephone +49 8765 82-0 www.efaflex.com [email protected] EFAFLEX® is a registered and legally protected trademark. Subject to technical changes. Some diagrams depict special features. Overall design: www.creativconcept.de 04 | 2025
