STP-iX455 Turbomolecular vacuum pump datasheet

STP-iX455 Turbomolecular vacuum pump datasheet

Product catalog summary

Overview: The STP-iX455 is an advanced turbomolecular pump designed for applications requiring low vibration, such as electron microscopy and lithography. It features a magnetic bearing and motor drive system that reduces vibration by 50% compared to previous models.

Key Features:

Integrated controller eliminating the need for rack-mounted controllers and cables.
450 l/s pumping speed for nitrogen, suitable for vibration-sensitive applications.
Innovative self-sensing magnetic bearing system with digital 5-axis control.
Automatic Balancing System (ABS) and Automatic Vibration Reduction (AVR) for low vibration during operation.

Technical Specifications:

Pumping speed: 450 l/s for N2, 460 l/s for H2.
Compression ratio: >108 for N2, 1x104 for H2.
Ultimate pressure: 10-8 order Pa.
Rated speed: 55,000 rpm.
Input voltage: 48 V DC.
Vibration levels: < 0.01 µm at rated speed.
Noise levels: < 50 dB at rated speed.
Communication interface: I/O Remote, RS232/485.
Weight: 15-16 kg.

Design and Configuration:

Can be configured for corrosive processes.
Available accessories include iPS-240 power supply and iDT-001 display unit.
Multiple configurations for standalone or integrated operation with power supply and display unit.

Compliance and Standards:

UL Listed, CE Marked, and SEMI® S2 Compliant.

Contact Information: Global contact details for BOC Edwards are provided for various regions including Europe, USA, Asia Pacific, and more.

Catalog excerpts

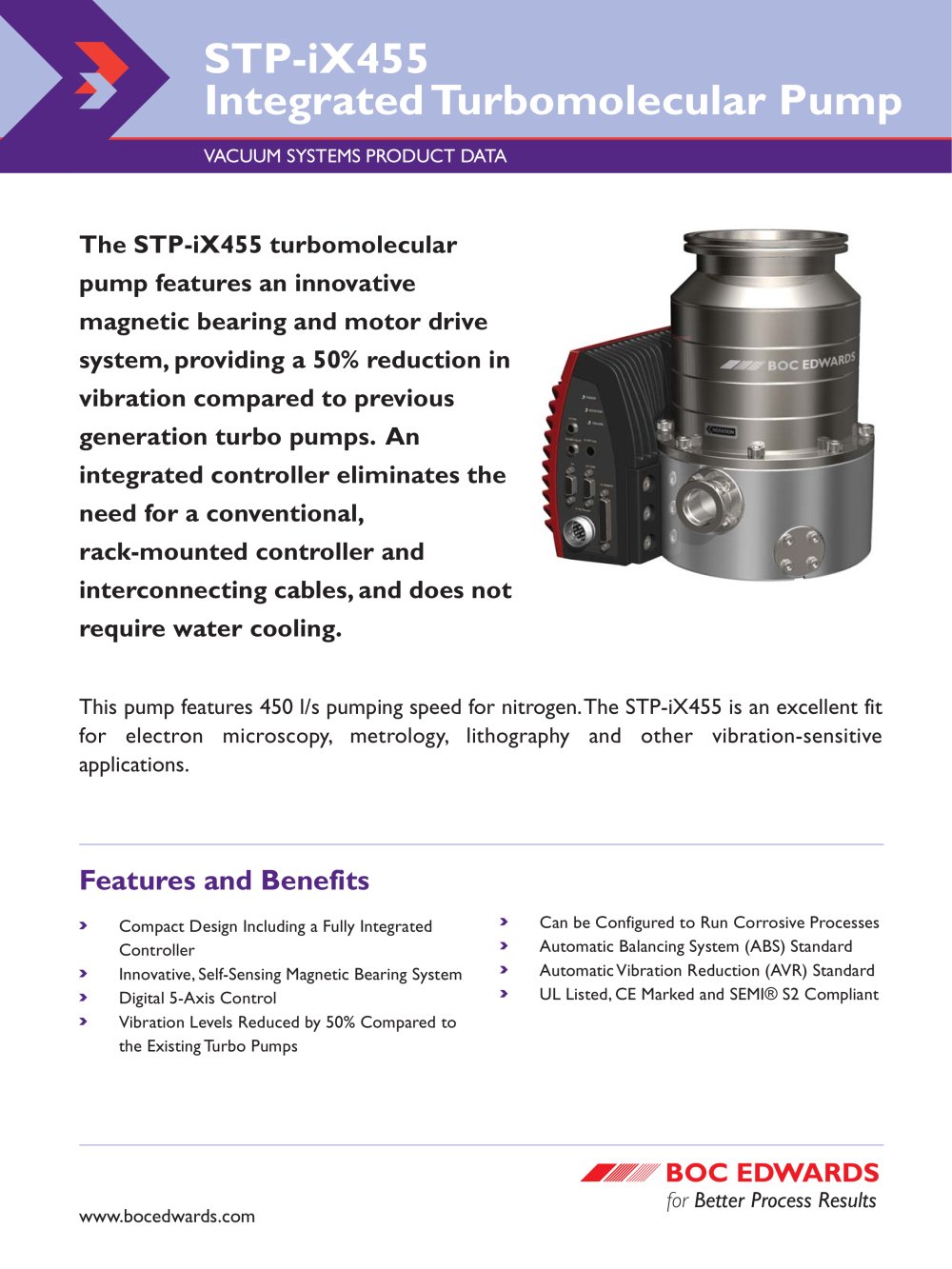

STP-iX455 Turbomolecular vacuum pump datasheet-1

This pump features 450 l/s pumping speed for nitrogen. The STP-iX455 is an excellent fit for electron microscopy, metrology, lithography and other vibration-sensitive applications. > Compact Design Including a Fully Integrated Controller Innovative, Self-Sensing Magnetic Bearing System Digital 5-Axis Control Vibration Levels Reduced by 50% Compared to the Existing Turbo Pumps Can be Configured to Run Corrosive ProcessesAutomatic Balancing System (ABS) Standard Automatic Vibration Reduction (AVR) Standard UL Listed, CE Marked and SEMI S2 Compliant www.bocedwards.com VACUUM SYSTEMS PRODUCT DATA for Better Process Results >

Open the catalog to page 1

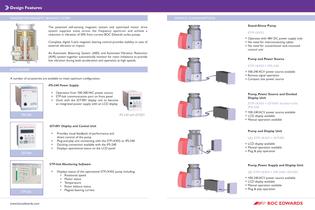

STP-iX455 Turbomolecular vacuum pump datasheet-2

Stand-Alone PumpSTP-iX455 Operates with 48V DC power supply onlyNo need for interconnecting cables No need for conventional rack-mounted control unit Pump and Power SourceSTP-iX455 + iPS-240 100-240 ACV power source availableRemote signal operation Compact size power source > Pump, Power Source and Docked Display UnitSTP-iX455 + iDT-001 docked with iPS-240 INNOVATIVE MAGNETIC BEARING SYSTEM VARIOUS CONFIGURATIONSThe patented self-sensing magnetic system and optimized motor drive system suppress noise across the frequency spectrum and achieve a reduction in vibration of 50% from current BOC Edwards...

Open the catalog to page 2
