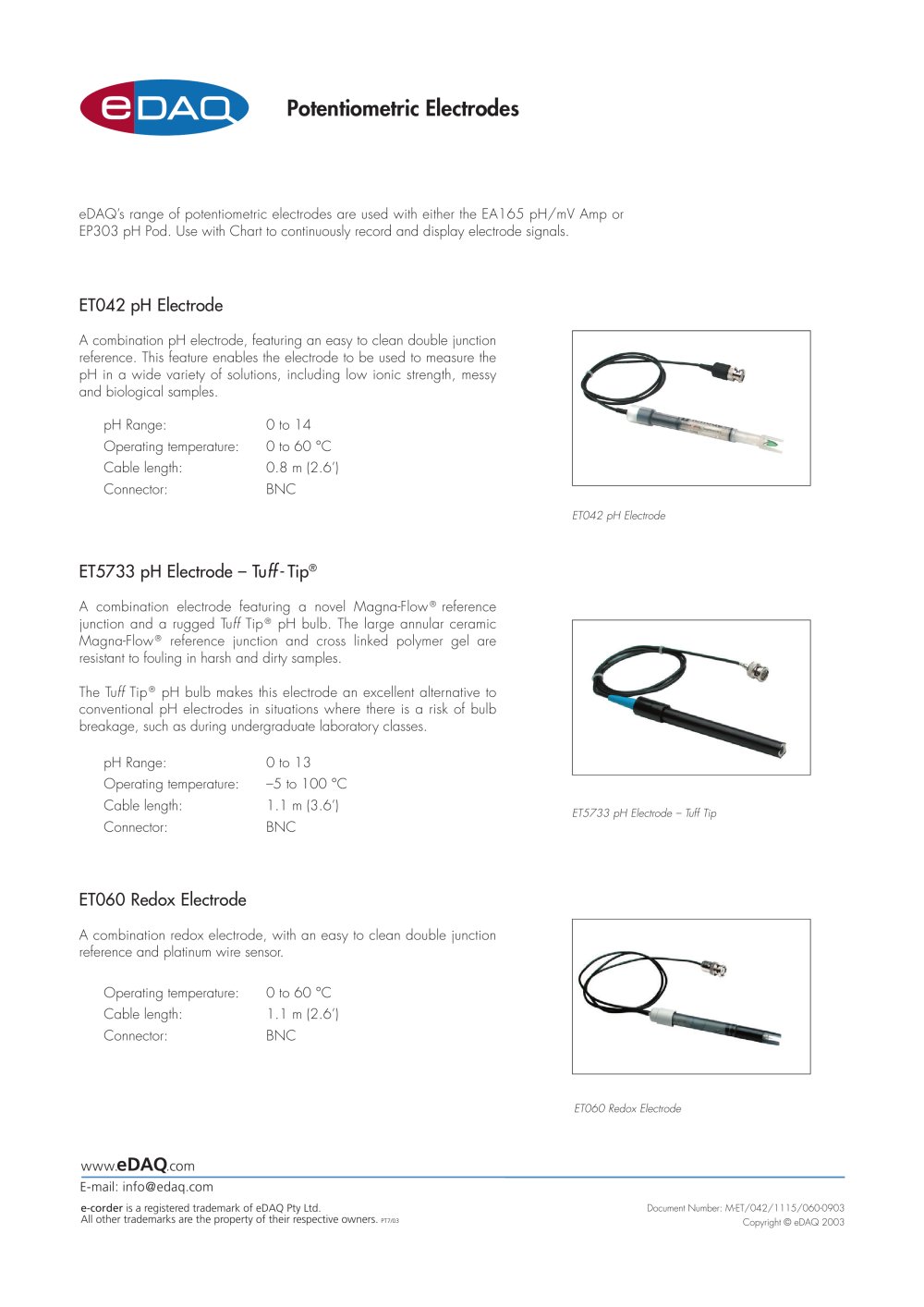

Potentiometric Electrodes eDAQ’s range of potentiometric electrodes are used with either the EA165 pH/mV Amp or EP303 pH Pod. Use with Chart to continuously record and display electrode signals. ET042 pH Electrode A combination pH electrode, featuring an easy to clean double junction reference. This feature enables the electrode to be used to measure the pH in a wide variety of solutions, including low ionic strength, messy and biological samples. pH Range: 0 to 14 Operating temperature: 0 to 60 °C Cable length: 0.8 m (2.6’) Connector: BNC ET042 pH Electrode ET5733 pH Electrode – Tuff - Tip® A combination electrode featuring a novel Magna-Flow ® reference junction and a rugged Tuff Tip ® pH bulb. The large annular ceramic Magna-Flow ® reference junction and cross linked polymer gel are resistant to fouling in harsh and dirty samples. The Tuff Tip ® pH bulb makes this electrode an excellent alternative to conventional pH electrodes in situations where there is a risk of bulb breakage, such as during undergraduate laboratory classes. pH Range: 0 to 13 Operating temperature: –5 to 100 °C Cable length: 1.1 m (3.6’) Connector: BNC ET5733 pH Electrode – Tuff Tip ET060 Redox Electrode A combination redox electrode, with an easy to clean double junction reference and platinum wire sensor. Operating temperature: 0 to 60 °C Cable length: 1.1 m (2.6’) Connector: BNC ET060 Redox Electrode www.eDAQ.com E-mail: info@edaq.com e-corder is a registered trademark of eDAQ Pty Ltd. All other trademarks are the property of their respective owners. PT7/03 Document Number: M-ET/042/1115/060-0903 Copyright © eDAQ 2003
