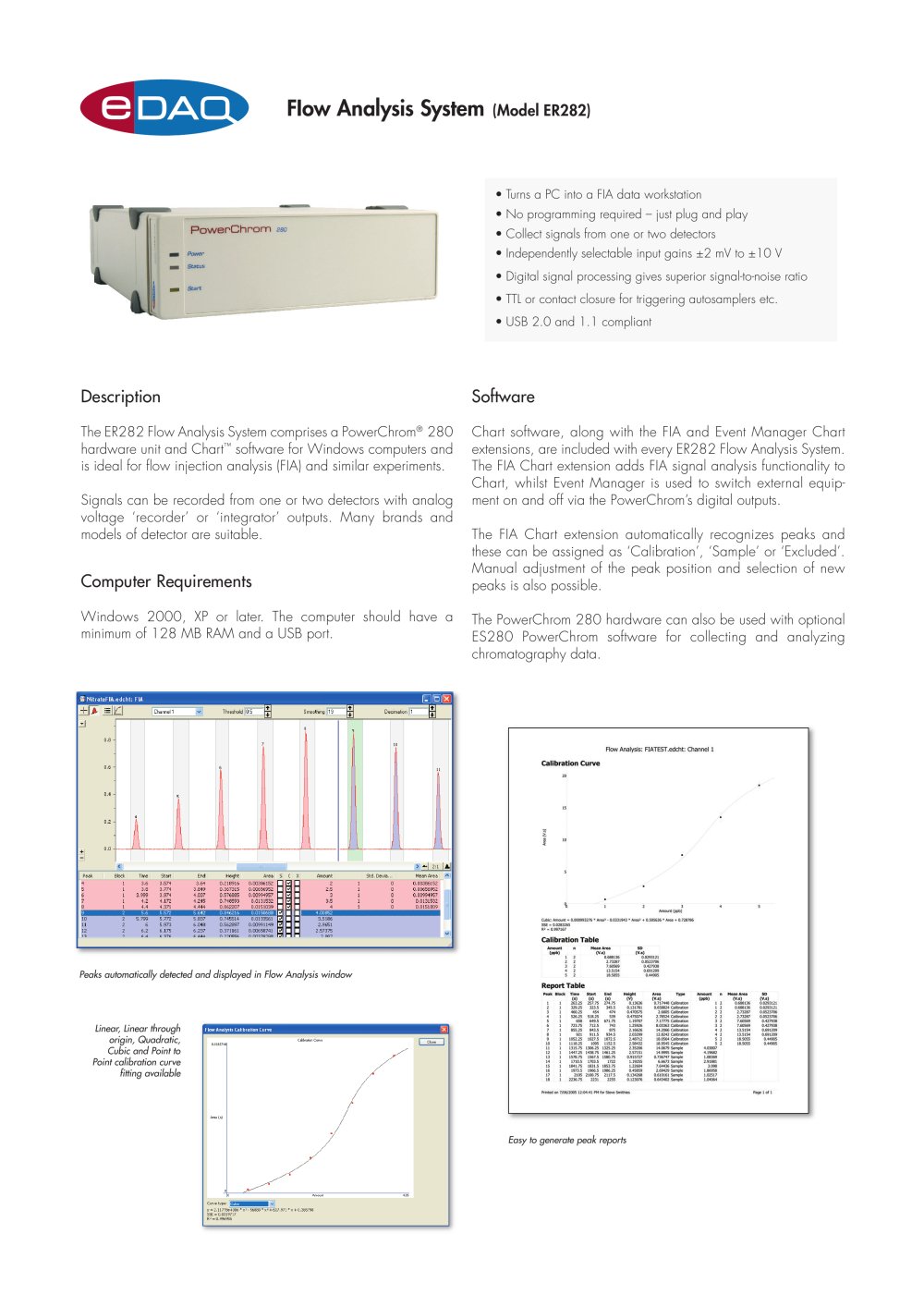

FIow Analysis System (Model ER282) • Turns a PC into a FIA data workstation • No programming required – just plug and play • Collect signals from one or two detectors • Independently selectable input gains ±2 mV to ±10 V • Digital signal processing gives superior signal-to-noise ratio • TTL or contact closure for triggering autosamplers etc. • USB 2.0 and 1.1 compliant Description Software The ER282 Flow Analysis System comprises a PowerChrom® 280 hardware unit and Chart™ software for Windows computers and is ideal for flow injection analysis (FIA) and similar experiments. Chart software, along with the FIA and Event Manager Chart extensions, are included with every ER282 Flow Analysis System. The FIA Chart extension adds FIA signal analysis functionality to Chart, whilst Event Manager is used to switch external equipment on and off via the PowerChrom’s digital outputs. Signals can be recorded from one or two detectors with analog voltage ‘recorder’ or ‘integrator’ outputs. Many brands and models of detector are suitable. Computer Requirements Windows 2000, XP or later. The computer should have a minimum of 128 MB RAM and a USB port. The FIA Chart extension automatically recognizes peaks and these can be assigned as ‘Calibration’, ‘Sample’ or ‘Excluded’. Manual adjustment of the peak position and selection of new peaks is also possible. The PowerChrom 280 hardware can also be used with optional ES280 PowerChrom software for collecting and analyzing chromatography data. Peaks automatically detected and displayed in Flow Analysis window Linear, Linear through origin, Quadratic, Cubic and Point to Point calibration curve fitting available Easy to generate peak reports

Analog Inputs Number of Input channels nput configuration Maximum input voltage nput impedance Permanent antialias filter _ow-pass filtering CMRR (differential' Channel crosstalk Sampling rates jnearity error Output Amplifier Output configuration Output resolution Maximum output current Output impedance Slew rate Settling time Output range jnearity error Software corrected on startup install for contact closure Power on/off Power socket Made in Australia by eDAQ Pty Ltd. Instrument connection port Serial port USB port Power WARRANTY: eDAQ Hardware units are supported by a one year warranty...
