e-corder 1621
2Pages

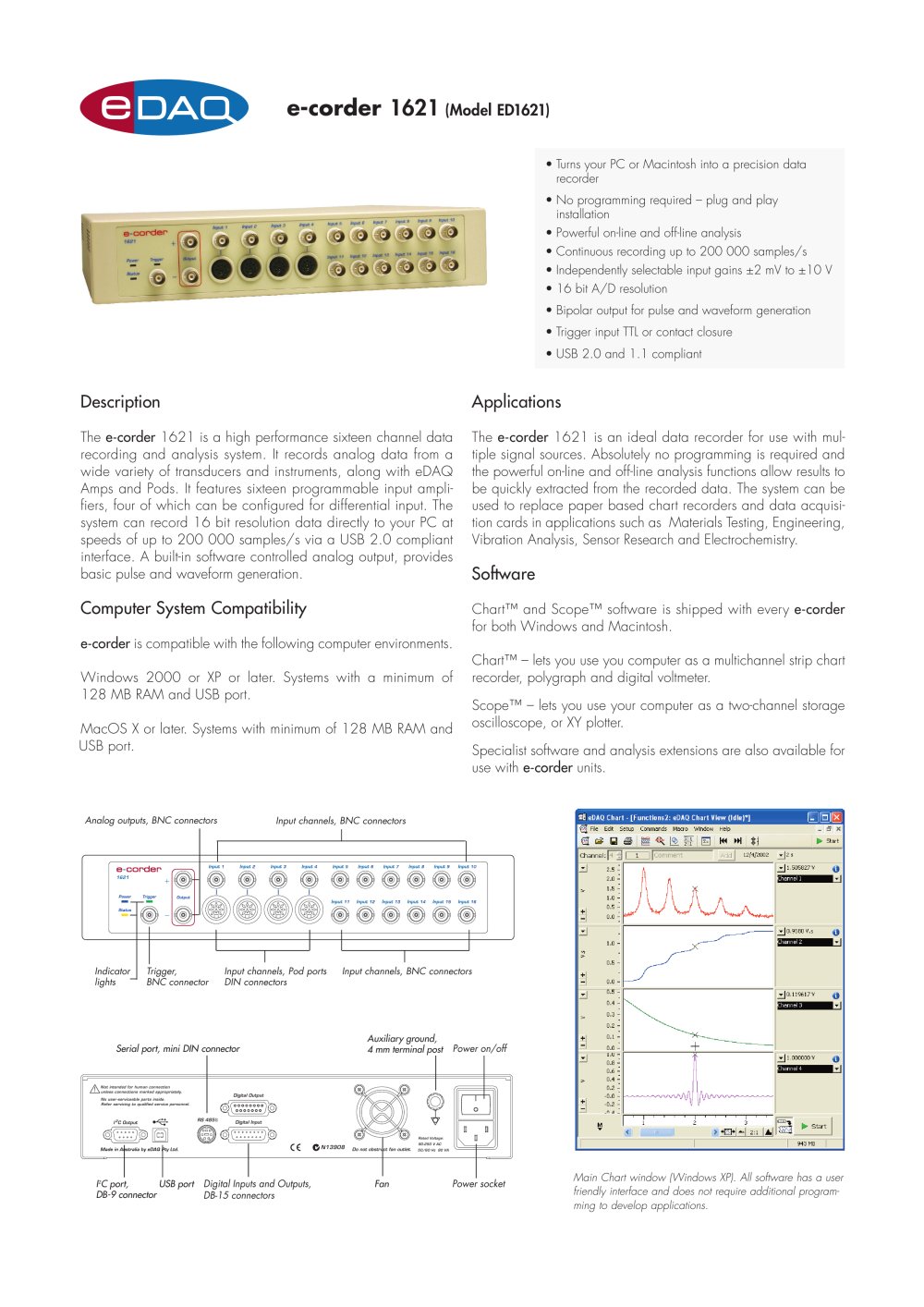

e-corder 1621 (Model ED1621) • Turns your PC or Macintosh into a precision data recorder • No programming required – plug and play installation • Powerful on-line and off-line analysis • Continuous recording up to 200 000 samples/s • Independently selectable input gains ±2 mV to ±10 V • 16 bit A/D resolution • Bipolar output for pulse and waveform generation • Trigger input TTL or contact closure • USB 2.0 and 1.1 compliant Description Applications The e-corder 1621 is a high performance sixteen channel data recording and analysis system. It records analog data from a wide variety of transducers and instruments, along with eDAQ Amps and Pods. It features sixteen programmable input amplifiers, four of which can be configured for differential input. The system can record 16 bit resolution data directly to your PC at speeds of up to 200 000 samples/s via a USB 2.0 compliant interface. A built-in software controlled analog output, provides basic pulse and waveform generation. The e-corder 1621 is an ideal data recorder for use with multiple signal sources. Absolutely no programming is required and the powerful on-line and off-line analysis functions allow results to be quickly extracted from the recorded data. The system can be used to replace paper based chart recorders and data acquisition cards in applications such as Materials Testing, Engineering, Vibration Analysis, Sensor Research and Electrochemistry. Computer System Compatibility Chart™ and Scope™ software is shipped with every e-corder for both Windows and Macintosh. Software e-corder is compatible with the following computer environments. Windows 2000 or XP or later. Systems with a minimum of 128 MB RAM and USB port. MacOS X or later. Systems with minimum of 128 MB RAM and USB port. Analog outputs, BNC connectors Indicator lights Trigger, BNC connector Specialist software and analysis extensions are also available for use with e-corder units. Input channels, Pod ports DIN connectors Input channels, BNC connectors Auxiliary ground, 4 mm terminal post Power on/off Digital Output No user-serviceable parts inside. Refer servicing to qualified service personnel. I 2C Output Scope™ – lets you use your computer as a two-channel storage oscilloscope, or XY plotter. Input channels, BNC connectors Serial port, mini DIN connector Not intended for human connection unless connections marked appropriately. Chart™ – lets you use you computer as a multichannel strip chart recorder, polygraph and digital voltmeter. RS 485 Digital Input Rated Voltage: N13908 I2C port, USB port DB-9 connector Digital Inputs and Outputs, DB-15 connectors 90-250 V AC Do not obstruct fan outlet. Fan 50/60 Hz 80 VA Power socket Main Chart window (Windows XP). All software has a user friendly interface and does not require additional programming to develop applications.

Analog Inputs Number of Input channels nput configuration Amplification range Maximum input voltage nput impedance _ow-pass filtering CMRR (differential' Channel crosstalk nput noise ±2 mV to +1 0 V full scale in 1 2 steps further filtering via software! Software corrected zero > -82 dB (typical) betvveen adjacent channels <2.4 uVrmI + 250 uVrm» /Gain RT Connector type Supply voltage Maximum current Signal input Differential or single^ended analog inputs Jnearity error Maximum sampling rates Available sampling rates 1 Hz to 200 kHz using Chart for Windows Output Amplifier Output...
