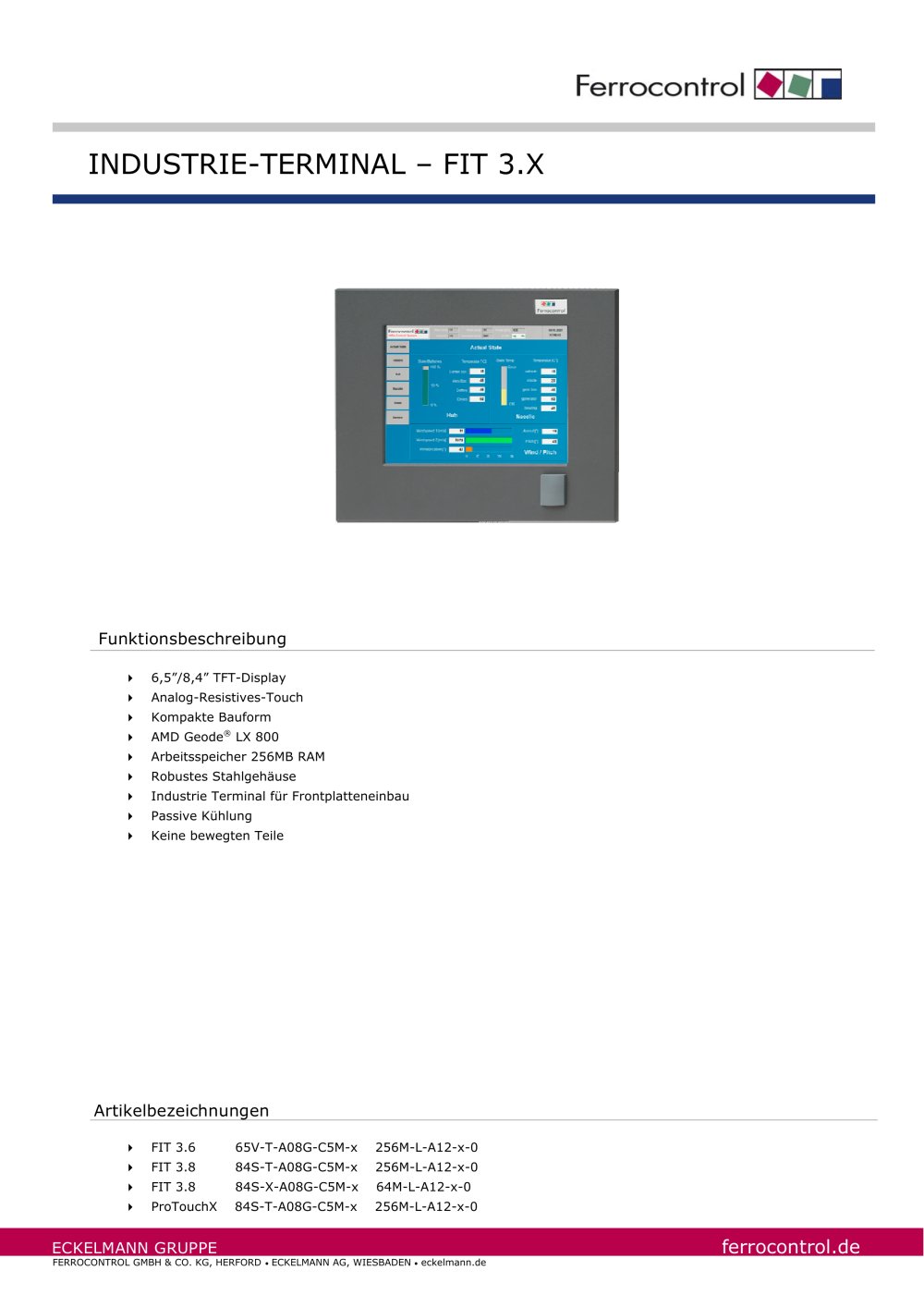

FIT 3.x

Product catalog summary

Product Specifications

Display: Available in 6.5” (640x480) and 8.4” (800x600) TFT options.
Touchscreen: Analog-resistive touch technology.
Design: Compact form factor with a robust steel housing.
Processor: AMD Geode® LX 800 with 500 MHz.
Memory: 256MB RAM.
Storage: 512MB IDE Compact Flash Disk.
Operating System: Pre-installed Embedded Linux®.
Cooling: Passive cooling system with no moving parts.

Electrical Connection

Power Supply: 24V/DC with a tolerance of 18...30V/DC.
Maximum Power Consumption: 48W.

Interfaces

Serial: 2 x RS232, 1 x RS485.
Keyboard/Mouse: PS/2 connections.
Ethernet: 2 x Ethernet 10/100 Base-T/RJ45.
USB: 3 x USB 2.0 ports.
VGA: Available for external monitor connection.

Housing and Environmental Specifications

Protection Class: IP20 / IP45 for front panel installation.
Operating Temperature: 5°C to +45°C.
Storage Temperature: -20°C to +60°C.
Maximum Relative Humidity: 50% at 40°C, air free of corrosive gases.
Compliance: DIN EN 61131-2 for both emission and immunity.
Weight: 2 kg.
Dimensions (W/H/D): 265/218/105 mm.
