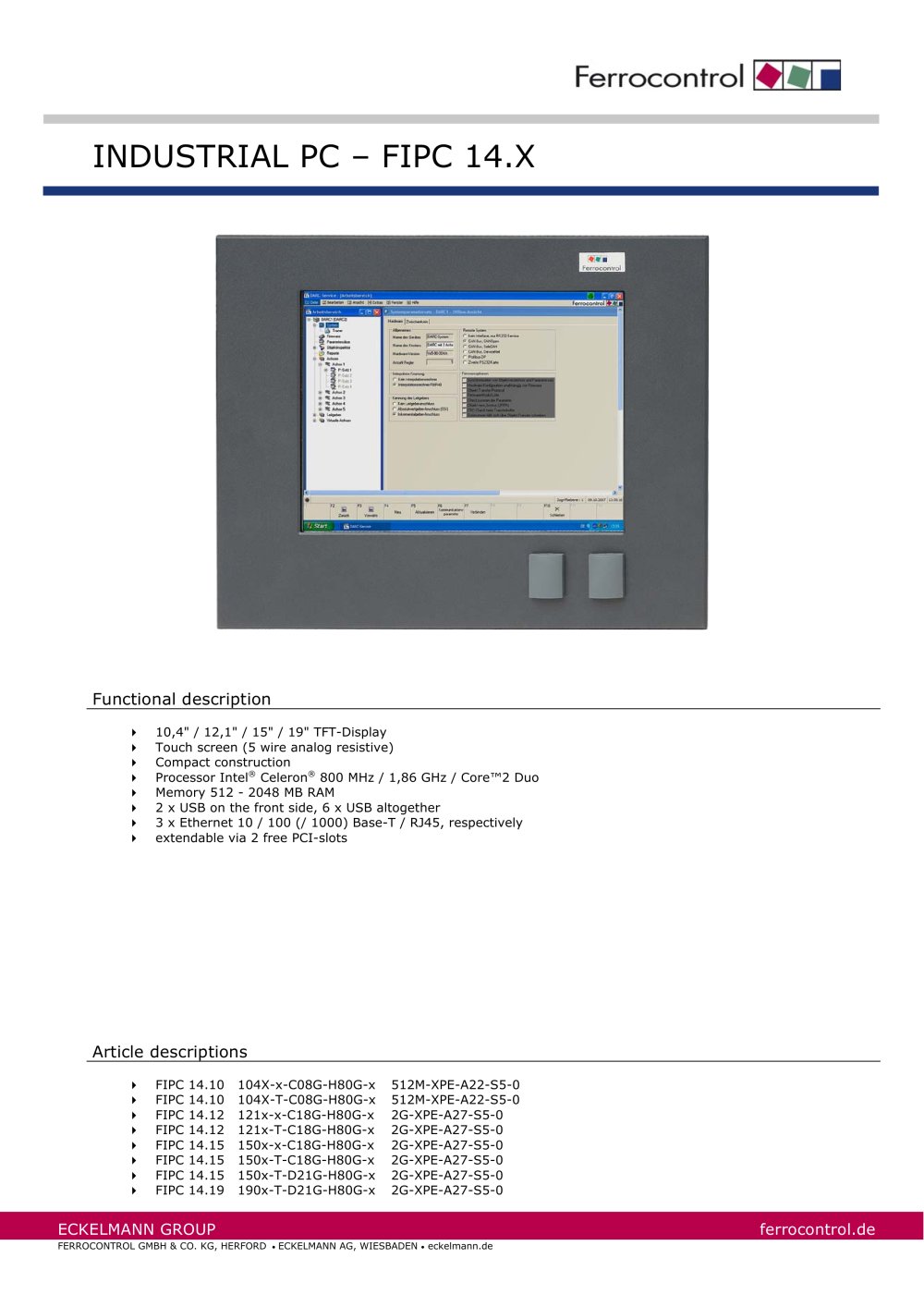

Functional Description
The FIPC 14.X series features TFT displays ranging from 10.4" to 19" with a 5-wire analog resistive touch screen. It is compact and powered by Intel® Celeron® or Core™2 Duo processors, with memory options from 512 MB to 2048 MB RAM. The device includes 6 USB ports, 3 Ethernet ports, and is extendable via 2 PCI slots.

Article Descriptions
Various models are available, including FIPC 14.10, 14.12, 14.15, and 14.19, each with specific configurations and features.

Technical Data
Electrical Connection: Operates on a 24 V DC supply with a tolerance of 12-30 V DC and a maximum power consumption of 85 W.
Operation: Displays range from 10.4" XVGA to 19" SXGA. No integrated keyboard or mouse.
Mainboard: Mini ITX type with PCI bus system.
Central Processing Unit: Options include Intel® Celeron® and Core™2 Duo, with RAM ranging from 512 MB to 2 GB. Pre-installed with Windows® XPE.
Interfaces: Includes RS232, PS/2 for keyboard and mouse, Ethernet, USB, IEEE 1394 Firewire, and VGA.
Field Bus: No CAN or A bus support.

Housing
Front panel installation with protection class IP54 at the front and IP20 overall. Operational temperature ranges from 0°C to 50°C, with storage temperatures from -20°C to 60°C. Complies with EN 61131-2:2003 for interference and resistance standards. Weight varies by model, from 5.4 kg to 9.7 kg, with specific dimensions for each model.
