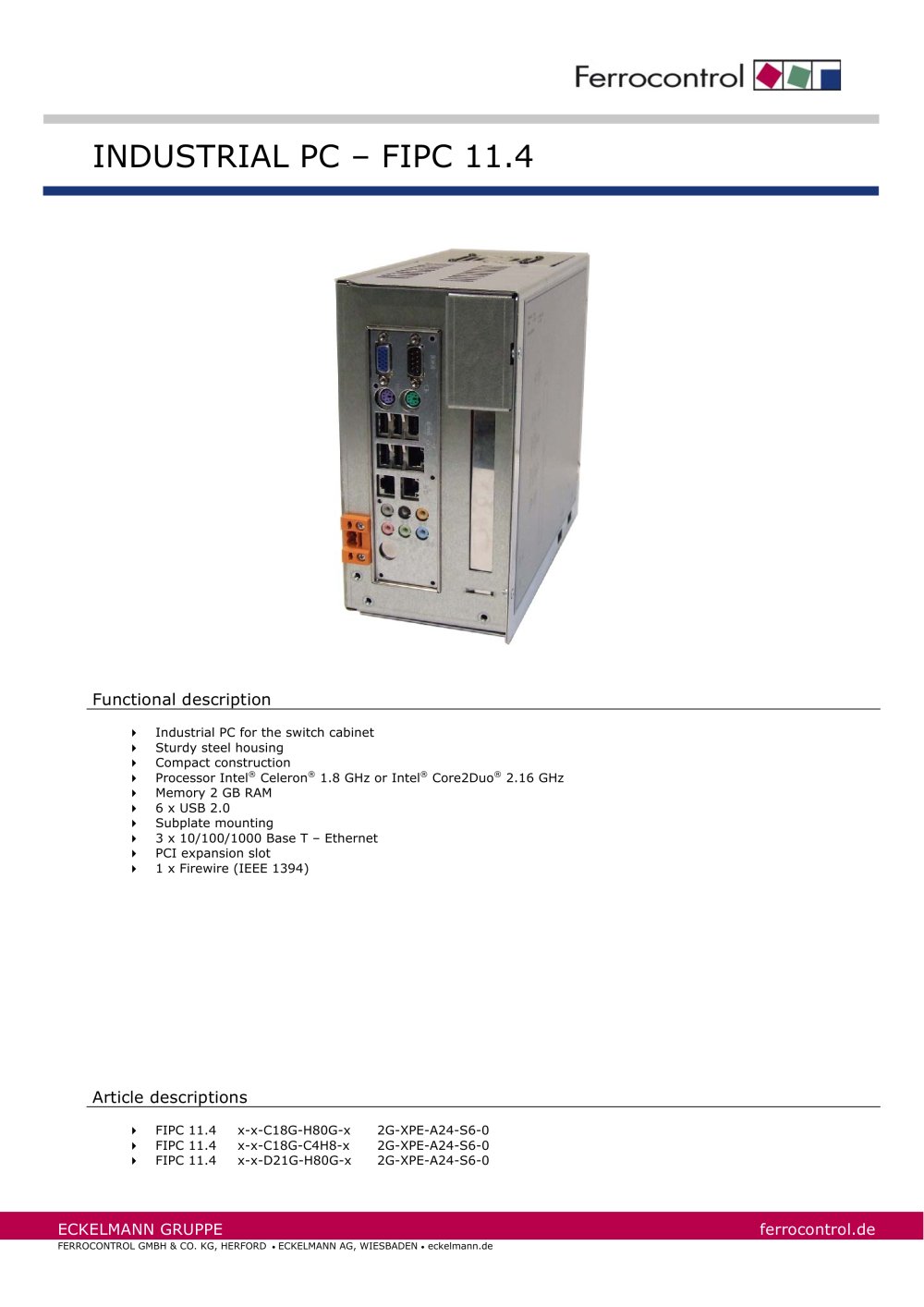

FIPC 11.4

Product catalog summary

Functional Description
The FIPC 11.4 is an industrial PC designed for switch cabinet installation. It features a sturdy steel housing and compact construction. It is equipped with either an Intel® Celeron® 1.8 GHz or Intel® Core2Duo® 2.16 GHz processor, 2 GB RAM, and offers multiple connectivity options including 6 USB 2.0 ports, 3 Ethernet ports, and a Firewire port. The device supports subplate mounting and includes a PCI expansion slot.

Article Descriptions
The document lists three variations of the FIPC 11.4 model, each with different configurations.

Technical Data

Electrical Connection: Operates on a 24 V DC supply with a tolerance range of 12 to 30 V DC and a maximum power consumption of 75 W.
Operation: Requires external display, touch, keyboard, and mouse.
Mainboard: Utilizes an M-ITX type with a PCI bus system.
Central Processing Unit: Options include Intel® Celeron® 1.8 GHz or Intel® Core2Duo® 2.16 GHz, with 2 GB RAM and a minimum 80 GB S-ATA HDD, plus an optional 4 GB IDE Compact Flash Disk. Pre-installed with Windows® XP embedded.
Interfaces: Includes 1 RS232 serial port, PS/2 ports for keyboard and mouse, 3 Ethernet ports, 6 USB 2.0 ports, 1 Firewire port, and VGA for external monitor.
Housing: Rated IP20 for protection, suitable for operation between 0° C to +45° C and storage between -20° C to +60° C. It can handle up to 50% relative humidity at 40° C in non-corrosive environments. Complies with DIN EN 61131-2 for interference and resistance. Weighs 3.3 kg with dimensions of 234 x 245.5 x 118.5 mm.

FIPC 11.4

FIPC 11.4
