• 15" TFT display
• Sturdy aluminium front panel
• Optional Analog-Resistive-Touch
• VGA graphic interface
• Distance between FIPC and FIPanel up to 20 meters

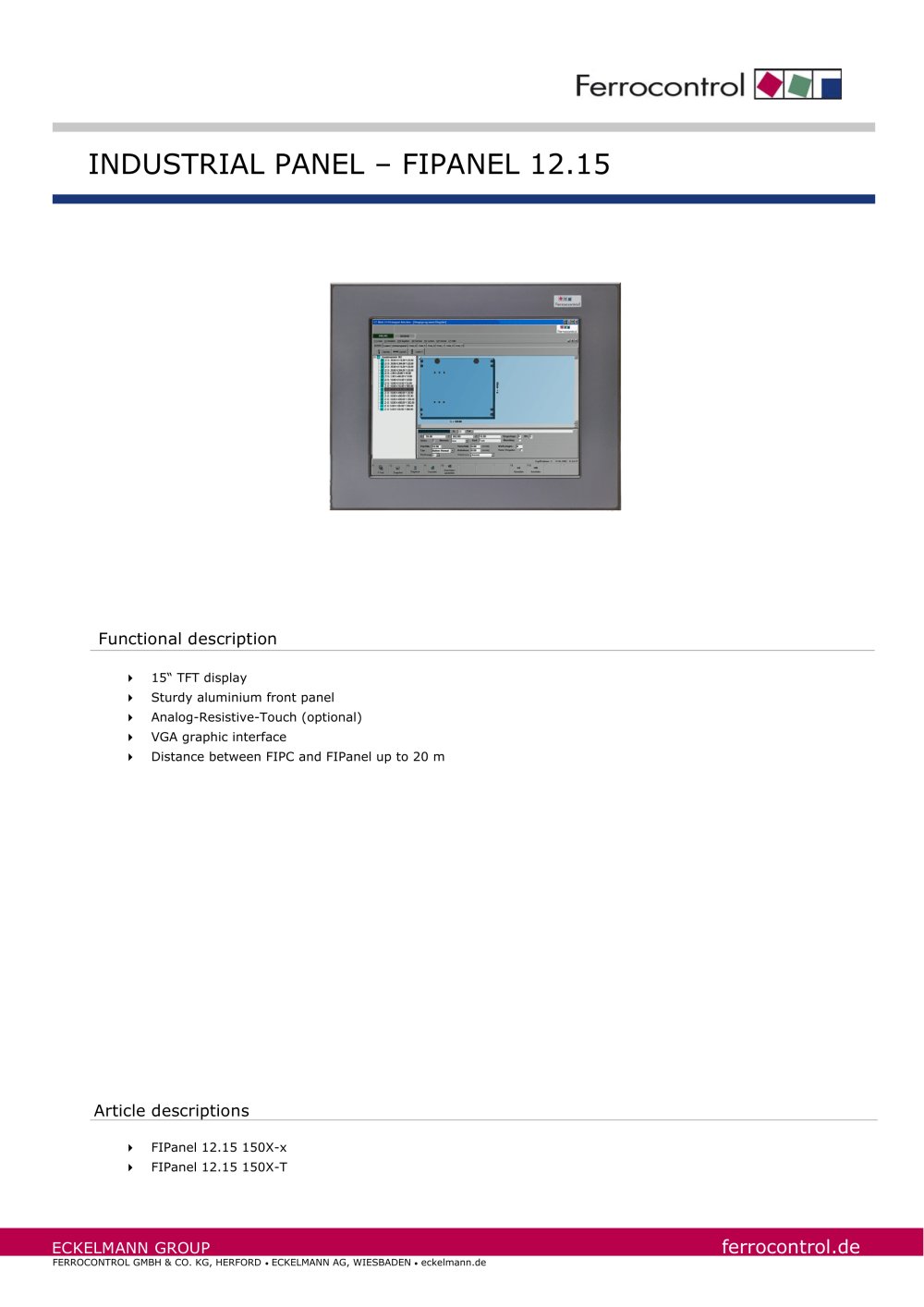

The FIPanel 12.15 is designed for industrial use, featuring a robust construction and flexible connectivity options. It supports a 15" TFT display with a resolution of 1024 x 768 and offers an optional touch interface.

• Supply voltage: 24V/DC
• Permissible input voltage tolerance: 15...30V/DC
• Maximum power consumption: 30W

• Display: TFT-Color 15" XVGA
• Touch: 5-wire Analog-Resistive (optional)
• Interface: Analog VGA
• Distance to IPC: Less than 20 meters

• Protection class: Front IP54, total IP20
• Housing type: Front panel installation
• Admissible ambient temperature (operation): 5°C to +45°C
• Admissible ambient temperature (storage): -20°C to +60°C
• Max. relative air humidity: 50% at 40°C, air free of corrosive gases
• Interference standards: EN 61000-6-3:2002, EN 61000-6-2:2001
• Weight: 3 kg
• Dimensions (W/H/D): 427/333/55 mm
