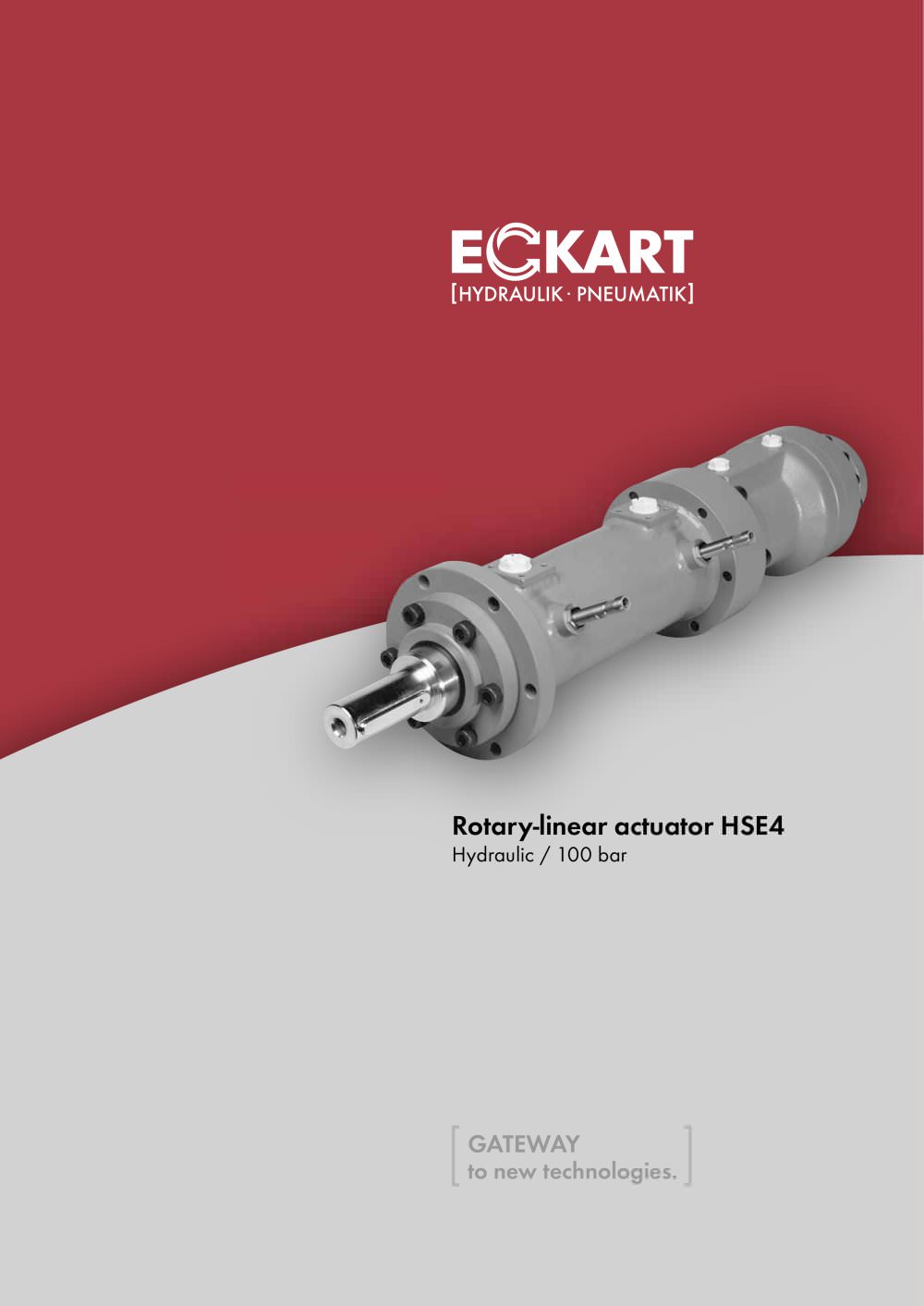

Rotary-linear actuator HSE4
Rotary-linear actuator HSE4
- Operating Pressure: Maximum of 100 bar, with economic operation starting at 20 bar.
- Sealing Technology: Utilizes modern seals with anti-extrusion back-up rings to prevent internal leakages and extend service life.
- Materials: Features wear-resistant moving parts with nitrided surfaces for enhanced longevity.
- Combines a rotary actuator with a double-acting linear cylinder.
- Allows independent and combined control of rotation and stroke movements.
- Includes an adjustable drive shaft datum for precise positioning.
- Provides linear and equal torque output in both directions.
- Designed to absorb kinetic energy without expensive controls.
- Features adjustable cushioning to prevent pressure peaks and ensure smooth operation.
- Offers flexible mounting options, including flange and foot mounting.
- Customizable features such as special seals, higher torques, and specific rotation angles.
- Includes end position switches and control switch assemblies for enhanced operational control.
- Recommends specific hydraulic fluids and an operating temperature range from -25°C to +70°C.
- Specifies filtration requirements to maintain fluid cleanliness and system efficiency.
- Provides guidelines for installation, maintenance, and running-in procedures.
- Includes detailed specifications for the Schwenkmotor PSM rotary-linear actuator, covering size, stroke, angle of rotation, medium, operating pressures, installation position, temperature range, and absorption volume.
- Emphasizes adherence to provided data for trouble-free operation and compliance with technical supervision, occupational hazard insurance, and environmental regulations.
- Design must ensure safety in case of technical or human failure, with specifications subject to change without notice.
- Includes options for rotation angles (90°, 180°, 270°, 360°), series, stroke, and size, with non-standard options available upon request.
- Lists maximum torque, push and pull forces at 100 bar, stroke lengths, and recommended mediums, along with operating pressures, temperature ranges, and weight details for different piston sizes.
- Standard models and models with end cushioning (Z1/Z1C) are available, along with additional options like foot-mounted models (FU), cam and locating pin (Z5, SZ), and end position switch (Z6C).
- Provides detailed dimensions for various sizes and configurations, including foot-mounted models and models with additional features like cams and locating pins.
Catalog excerpts
-negating the need for expensive proportional or servo controls with virtually identical characteristics > -extended service life of seals-increased safety, also with regard to the environment-suitable for most fluids -all o-rings featuring anti-extrusion back-up rings -no internal leakages through solid seals enabling the load to be held in any intermediate position > - flange- or foot mounting already in the standard range-mounting possibilities in accordance with the request of the customer > -through precise combined helical gears and low friction seals, is the HSE4 already from 20 bar economically...
Open the catalog to page 2
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } Rotary-linear actuator HSE4 ...over time short delivery times through flexible storage individual solutions for your product quality assurance according to DIN EN ISO 9001:2000 externally adjustable end stop (standard) the end angle can be re-adjusted at any time by ± 5° in conjunction with the adjustable drive shaft datum,...
Open the catalog to page 3
The Eckart rotary-linear actuator HSE4 is a combination of a rotary actuator and a double-acting linear cylinder. The maximum operating pressure of the HSE4 is100 bar. Low friction seals allow the rotary-linear actuator HSE4 to operate from as low as 10 bar operating pressure and so can be eco- nomically set at approximately 20 bar.For especially slow rotation stick-slip seals can be supplied as aspecial specification rotation movement: The piston K of the rotary actuator (fig.-2) moves linear by a hydraulic force between the two mechanical end stops E1 and E2. This linear movement will be changed...
Open the catalog to page 4
From view F, the piston rod KS will rotate anti-clockwise (arrowA) when pressure is applied to port A1. A different direction of rotation is available as a special feature. The hydraulic fluid used in the rotary-linear actuator does not exceed the pollution classification 19/15 in accordance with ISO 4406. Therefore, a filter setting of < 25 > m should beinstalled in the pressure line. With hermetically sealed containers a return filter should suffice. At open containers a pressure filter must be installed in the pressure line. The maintenance intervals described above should be adhered to in...
Open the catalog to page 5
pressure[bar]300200100 pressure[bar]300200100 End cushioning is aimed at dissipating and/or decelerating therotary movement before the final end stop.Eckart end cushioning is designed to meet the toughest require-ments in modern hydraulics. On the basis of continuous research and development as well as close co-operation with our cus- tomers, we can offer you state-of-the-art end cushioning . > single-stage end cushioning time[s] Eckart end cushioning time[s] figure-3 > The diagram shows one of the advantages of Eckart end cushioning over con-ventional cushioning with single-stage control ● You...
Open the catalog to page 6
Apart from our standard version with flange-mounting, you havealso the option of version with foot-mounting. The angle of rotation can be adjusted individually with this option, both over its total range of rotation and over a partial range (e.g. total angle 270 , desired partial adjustment of 180 to 270 ). To this end, the adjusting insert RE is simply screwed inwards or outwards to give the desired angle of rota- tion. The shaft goes all the way through, allowing control equip- ment to be fitted. Adjustment is only possible in the unpressurised state. The total length of the rotary actuator...
Open the catalog to page 7
Because of its torque, angle of rotation, pressure range, po-sitioning accuracy, stability of position, type of attachment and dimensions, the Eckart HSE4 rotary actuator can be used in a wide range of applications.The selection and the size depends above all on the de-mands and the operating conditions under which the rotary- linear actuator is operating. For the planning of specialitems, it is also important for us to be aware of all technicaldetails.We accept no guarantee claims for disturbances in functio-ning or complaints which are attributable to lack of infor- mation by the customer....
Open the catalog to page 8
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.20pt "Arial", sans-serif; } .font1 { font:4.60pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:14.00pt "Arial", sans-serif; } .font7 { font:9.00pt "Impact", sans-serif; } I Technical data and information 9 [ Technical data Size (piston-0) 40 50 63 80 100 125 max. torque at 100 bar [Nm] 65 135 270 480 1015 2050 max. push force at 100 bar [N] 12500 19500 31000 50000...
Open the catalog to page 9
tool change move distributed by: ECKART GmbH Gewerbegebiet WallrothD-36381 SchlchternTelefon > ECKART GmbH 2005 +49(0)66619628-0 Telefax +49(0)66619628-50 > Production 10/2005. G쩼nther Werbeservice E-Mail [email protected] http:// www.eckart-gmbh.de >
