PRESSURE BOOSTER SETS (THREE PUMPS)

Product catalog summary

Overview: GP pressure booster sets are compact, automatic systems designed for maintaining water pressure in various installations such as residential, commercial, industrial, and agricultural settings. These systems consist of two or more pumps operating in parallel and are ready for connection to diaphragm and air-cushion pressure vessels.

Control Mechanism: The pumps are activated by pressure switches through a control panel. In systems equipped with an inverter (VLT), a pressure transducer is used to start one of the pumps.

Pump Series:

Horizontal End-Suction Centrifugal Models: Includes multistage models with threaded parts (Compact series), single/dual-impeller models with stainless steel hydraulic parts (CDX-2CDX series), and models with traditional hydraulic parts (CMA-CMB-CDA series).
Vertical Multistage Centrifugal Models: Features water jacket cooled end-suction models (Multigo series) with standardized motor and coupling, available with all stainless steel hydraulic parts or with cast iron lower casing and seal plate.
Horizontal End-Suction Centrifugal Models: Standardized to EN 733, available with all stainless steel hydraulic parts (3M series) or traditional hydraulic parts (MD/MMD series).

Standard Versions: The systems are available in two standard configurations:

2GP Units: Equipped with two identical single-phase or three-phase pumps.
3GP Units: Equipped with three identical three-phase pumps.

Additionally, the GP EVM series can be customized to include up to four pumps upon request.

Catalog excerpts

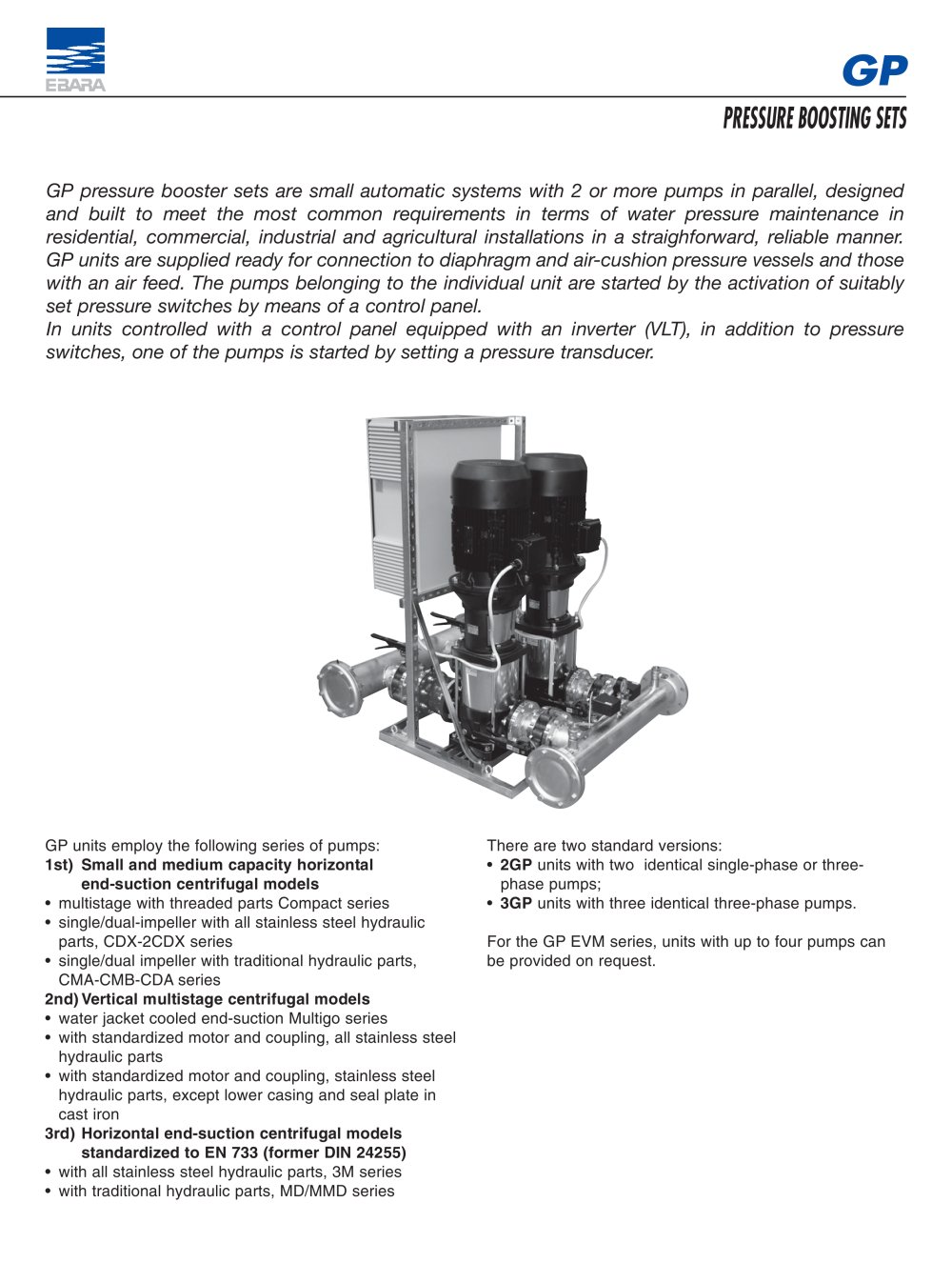

2GP units with two identical single-phase or three-phase pumps; 3GP units with three identical three-phase pumps.For the GPEVM series, units with up to four pumps canbe provided on request. GPunits employ the following series of pumps: 1st)Small and medium capacity horizontalend-suction centrifugal models Օmultistage with threaded parts Compact series single/dual-impeller with all stainless steel hydraulicparts, CDX-2CDX seriesՕsingle/dual impeller with traditional hydraulic parts,CMA-CMB-CDAseries water jacket cooled end-suction Multigo series Օwith standardized motor and coupling, all stainless steelhydraulic partswith standardized motor and coupling, stainless steelhydraulic parts, except lower casing and seal plate in cast iron 2nd)Vertical multistage centrifugal models 3rd)Horizontal end-suction centrifugal modelsstandardized to EN 733 (former DIN 24255) Օwith all stainless steel hydraulic parts, 3M series with traditional hydraulic parts, MD/MMD series There are two standard versions:Օ >

Open the catalog to page 1
