Synflex® Eclipse™ Air Brake Tubing

Synflex® Eclipse™ Air Brake Tubing

Product catalog summary

Applications
Synflex® Eclipse™ Air Brake Tubing is suitable for truck and trailer air brake systems, auxiliary air systems, formed tubes, and air brake harness assemblies.

Temperature Range
The tubing operates effectively within a temperature range of -65°F to 200°F (-54°C to 93°C), surpassing traditional Nylon tubing.

Construction
The tubing features a patented construction with 100% polyamide and polyester yarn reinforcement, is UV stabilized, thermoformable, and available in various colors and sizes.

Standard Compliance
It meets SAE J844, J1131, J2494-3, and DOT-FMVSS 106 standards.

Features / Benefits

Superior Abrasion Resistance: Outperforms Rubber and Nylon11, offering a longer service life.
Enhanced Flexibility: Easier installation and handling at low temperatures.
Ease of Cutting: Promotes burr-free cuts for improved assemblies.
Flow Performance: Enhances brake timing performance.

Product Specifications
Specifications for Type A and Type B tubing include nominal outer diameter, inner diameter, wall thickness, minimum burst pressure, bend radius, and weight. For example, Type A tubing with part number 4245-022 has a nominal O.D. of 1/8 inch, a minimum burst pressure of 1,000 psi, and a bend radius of 1/4 inch.

Performance Comparison Data
In abrasion resistance tests, Synflex® Eclipse™ significantly outperformed Rubber and Nylon11, with no failure at over 125,000 cycles compared to failures at 3,050 cycles for Rubber and 8,225 cycles for Nylon11.

Limitation of Liability
Products are sold without warranty, and users assume all risks associated with their use. Saint-Gobain Performance Plastics disclaims all implied warranties of merchantability and fitness for a particular purpose.

Catalog excerpts

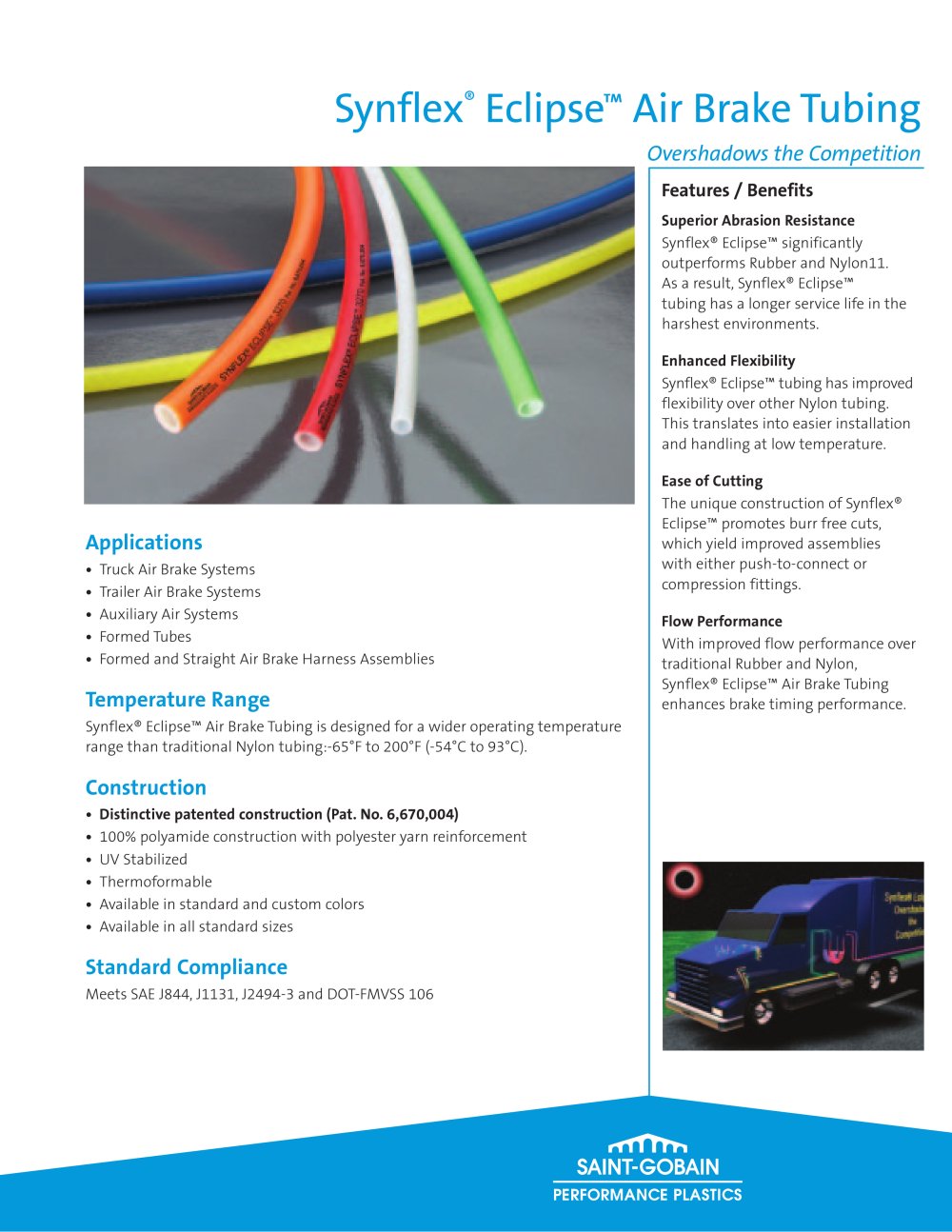

Superior Abrasion Resistance Synflex EclipseΙ significantly outperforms Rubber and Nylon11. As a result, Synflex EclipseΙ tubing has a longer service life in the harshestenvironments. Enhanced Flexibility Synflex EclipseΙ tubing has improvedflexibility over other Nylon tubing. This translates into easier installation and handling atlow temperature. Ease of Cutting The unique construction of SynflexEclipseΙ promotes burr free cuts, which yield improved assemblies with either push-to-connector compression fittings. Flow Performance With improved flow performance overtraditional Rubber and Nylon, Synflex EclipseΙ Air Brake Tubing enhances brake timing performance. > Truck Air Brake Systems Օ Trailer Air Brake Systems Auxiliary Air Systems Օ Formed Tubes Formed and StraightAir Brake Harness Assemblies > Synflexծ Eclipse Air Brake Tubing is designed for a wider operating temperaturerange than traditional Nylon tubing:-65ٰF to 200F (-54аC to 93C). > ЕDistinctive patented construction (Pat. No. 6,670,004) 100% polyamide construction with polyester yarn reinforcement Օ UV Stabilized Thermoformable Օ Available in standard and custom colors Available in all standard sizes >

Open the catalog to page 1
