Switches - 1600-2600 Series

Product catalog summary

Description: Eaton's 1600/2600 series rocker and paddle switches are midsize snap-in switches with global approvals for up to 16A, 250V AC. They are suitable for both domestic and international markets, ideal for applications in appliances, medical equipment, and more. The series offers a variety of circuits and colors, with options for illumination and custom legends. High inrush and splashguard versions are available.

High Inrush: The 1600H/2600H models can handle high inrush currents up to 100A peak for 10 milliseconds, making them suitable for demanding applications.

Splashguard: This version includes a seal to resist moisture, ideal for marine and food processing applications. It features an oversized nylon lever for easy control.

Specifications: The switches are available in various circuits (1PST, 1PDT, 2PST, 2PDT) with maintained and momentary options. They feature slow-make/slow-break butt contact mechanisms and are rated for 50,000 mechanical cycles. The contact material is silver inlay over copper, with a contact resistance of 10 MΩ max at 1A, 4V DC. The operating temperature range is 0°C to 85°C.

Ordering Information: To order, start with the base circuit number and add the appropriate codes for finish, color, termination, and legend. The document provides detailed tables for selecting non-illuminated, illuminated, high inrush, and splashguard rockers.

Dimensions: Detailed dimensions are provided for panel openings and switch sizes, ensuring proper fit and installation.

International Approvals: The switches have approvals from UL, CSA, VDE, and other international bodies, ensuring compliance with global standards.

Catalog excerpts

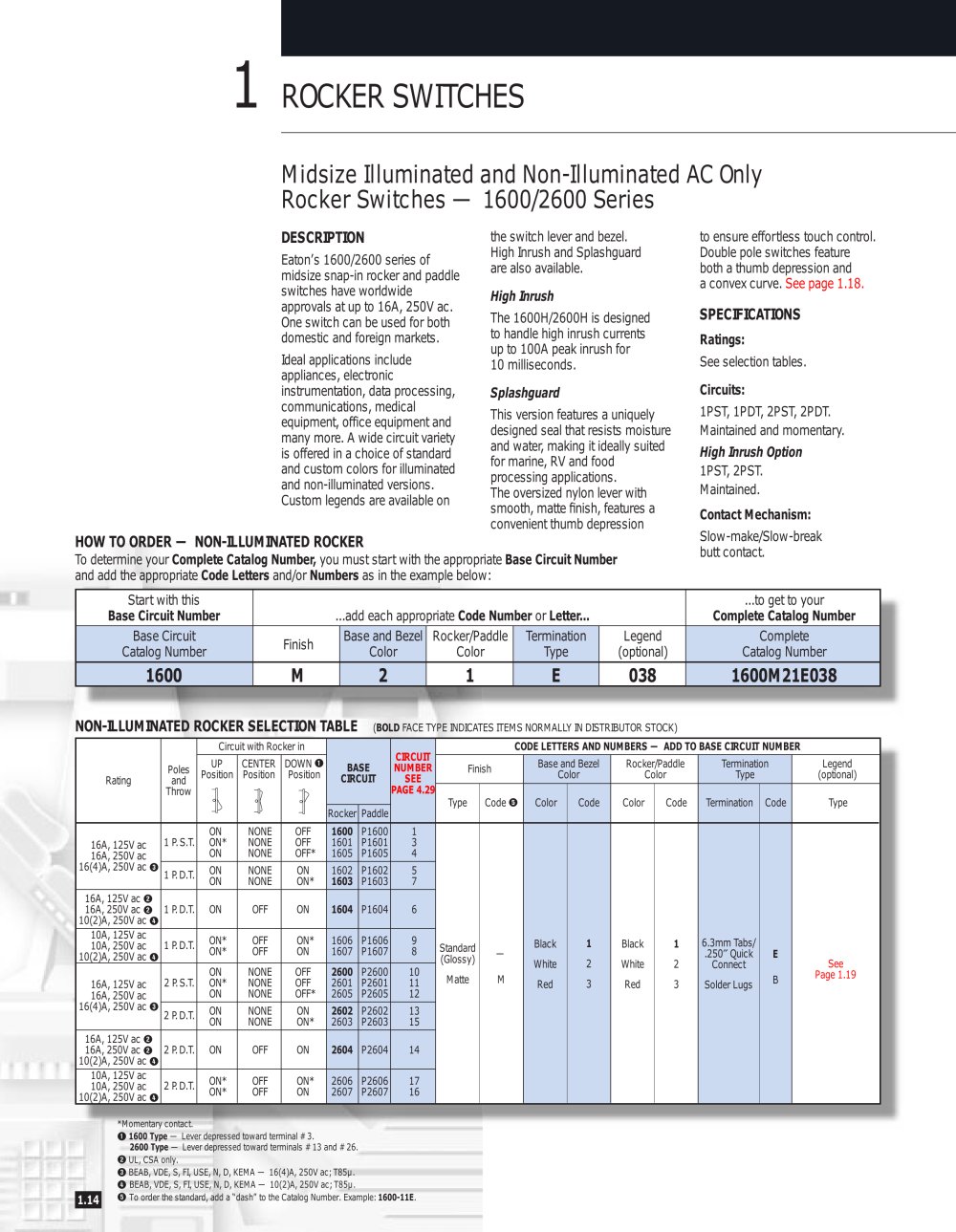

HOW TO ORDER LEGENDS > To order a rocker with a legend marking, add the three character Code to the end of the Catalog Number .Example: 1500-21E becomes 1500-21E038. If panel cutout fillers arerequired in anticipation of future rocker or paddle switch installation, order Catalog Number MOST POPULAR LEGENDS > Q חFor 1500/2500 and 1600/2600 only. LegendCode LegendCode LegendCode > O N O 038 > N - I 039 > O F F - O O F F O N 630 > I 656 752 > O F F P O W E R I 014 023 > 746 657 > I 714 > 760 > > O F F O N 653 730 > 735 > I O N O N O F F 671 > O F F 725 734 > Q For additional legend options, contact...
