Pushbutton Switches

Product catalog summary

Overview: The document provides comprehensive details on Eaton's general-purpose pushbutton switches, suitable for commercial applications such as appliances, electronics, and medical instrumentation. It covers both AC rated and illuminated AC/DC rated switches.

Specifications: The switches come in various configurations, button styles, and termination types, featuring slow-make/slow-break contacts. They are rated for different amperages, with contact materials including silver-plated copper. Terminal types include screw terminals and solder lugs.

Selection Table: A detailed selection table lists models with specifications such as type rating, poles and throw, contact materials, operating force, and mounting dimensions, highlighting items typically in distributor stock.

Mounting and Hardware: Switches can be mounted using one-hole mounts with threaded bushings. Hardware like hexagon locknuts and facenuts are provided unassembled. The operating temperature range is from -17.8°C to +65.6°C.

Illuminated Pushbutton Switches: Options include T-1 lamps, special lenses, and military snap-switches, available in various series with different ratings and contact materials. A reference table for illuminated and non-illuminated pushbuttons and indicators is provided.

Ordering Information: Instructions for ordering specific series, such as the 095 avionics switch, are detailed, including necessary components and catalog numbers.

Pushbutton Caps: A selection table for illuminated and non-illuminated pushbutton caps is included, detailing lens colors, cap heights, and styles, along with ordering guidelines.

Lamp Specifications: Specifications for incandescent and neon lamps include item numbers, voltage, amperage, brightness, and average life, with recommendations for external resistors and notes on lamp life under different conditions.

Mounting Barriers: An order guide for series 200 and 300 mounting barriers describes barrier types and their applications in switch configurations.

Engraving and Hot Stamping: Limitations and standards for engraving and hot stamping on pushbuttons are outlined, specifying character limits and styles for different sizes.

Diagrams and Dimensions: Diagrams with approximate dimensions for various series provide visual guidance for installation and configuration.

LED Lamps for Series 231 to 235 Switches and Indicators: Available in Red, Yellow, and Green with voltage options of 5V dc and 15V dc, with options for diode protection.

T 1 3/4 Wire LEDs for 800 Series Switches and Indicators: Available in Red, Green, Yellow, and Amber, with specifications including a forward current of 20 mA, luminous intensity from 80 to 160 MCD, and a typical forward voltage of 1.7V. All options are undiffused.

Catalog excerpts

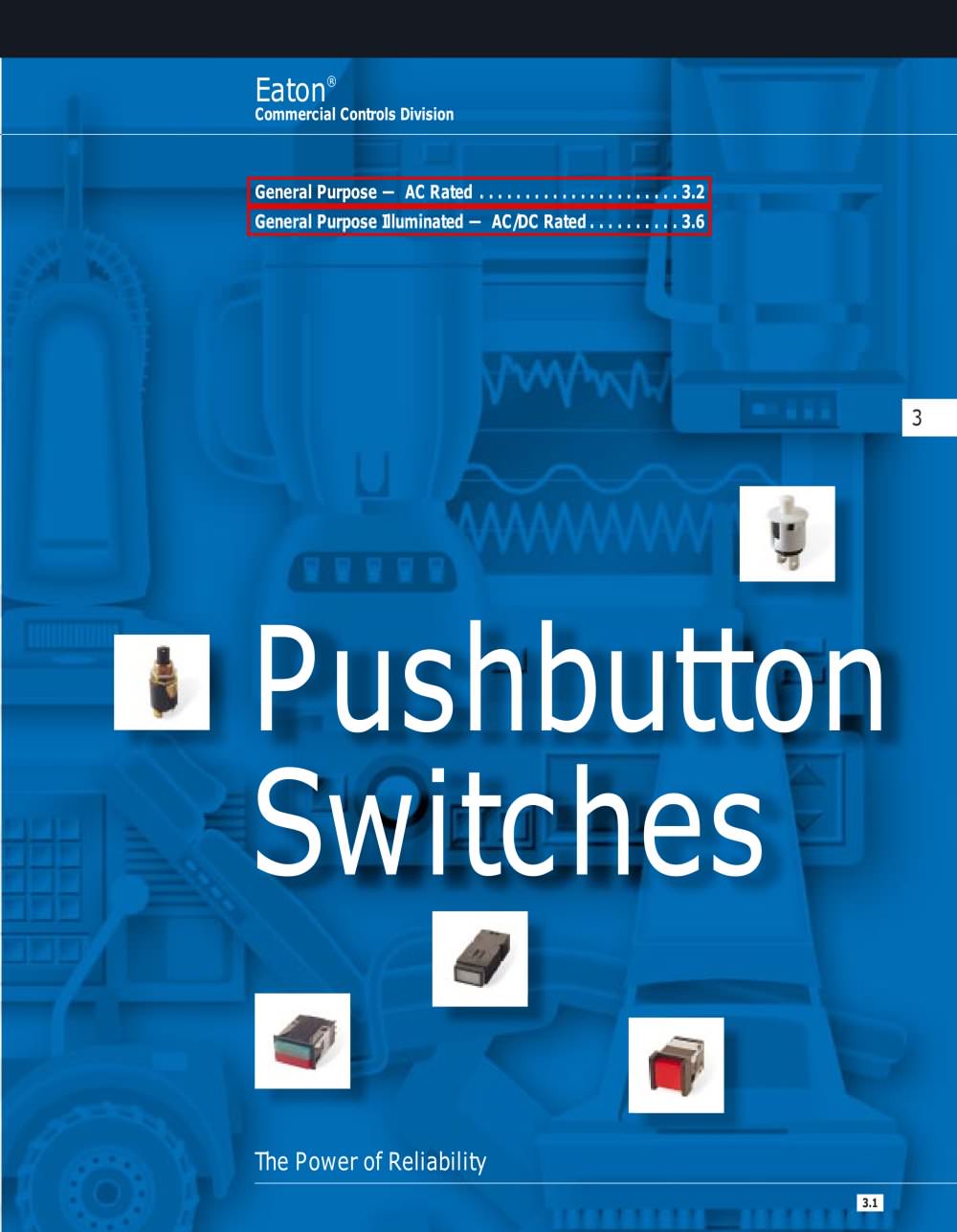

Eaton Commercial Controls Division General Purpose Η AC Rated. . . . . . . . . . . . . . . . . . . . . . 3.2General Purpose Illuminated AC/DC Rated. . . . . . . . . . 3.6 3 Pushbutto n Switches > The Power of Reliability 3.1 size="-5">

Open the catalog to page 1

OperatingTemperatureRange: -17.8C to +65.6аC(0F to +150аF). Wire Leads 18 gauge,152mm (6 Keyway on 7835/7836Series is 2.03 wide x 1.01mm deep (.080widex.040 ע3 deep).Hardware supplied Onehexagon locknut Approvals ע3 ) long, skinned19mm (.750 ″) .Lengthsbeyond 152mm (6 (Cat.No.15-192) (Cat. No. 15-124F1) and onebright nickel plated knurled facenut .8411/8418 Series has a brightnickel plated hexagon facenut ″ ) areadditional charge. (Cat. No. 15-966-2) .Allhardware is furnishedunassembled. Other mountingtypes areﬂush, nestandsnap-in. Mounting Means: One hole mount.Threaded Bushing 11.90mm(.468...

Open the catalog to page 3
